PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 400 × 2000 mm
Knee clearance not applicable	N/A
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Open shelf uniform static load	35 kg per shelf
Drawer static load capacity	30 kg per drawer
Lower cabinet shelf load	40 kg per shelf
LED strip color temperature	4000K
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main cabinet body	E1 grade particle board core with melamine veneer
Light gray decorative panels	Matte lacquered or PVC-wrapped MDF
Fluted sliding door panels	MDF with vertical ribbed texture and matte light gray finish
Internal shelves	25mm thick melamine-faced particle board
Plinth base	PVC-edged particle board with matte light gray finish
Display lighting	Integrated warm white LED strip with aluminum channel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mixed storage configuration	Combines tall closed storage, open display shelves, sliding fluted doors, drawers and lower cabinet doors
Integrated display lighting	Recessed LED strips installed under each open shelf for ambient accent lighting
Sliding fluted door panels	Two independent sliding ribbed panels conceal storage bays at mid height
Drawer storage	Four equal-width drawers on the lower middle section provide concealed small-item storage

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office back wall	Serves as display and document storage behind an executive desk
Manager office or meeting room side wall	Provides both decorative display and concealed file storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Applicable for safety and strength requirements of storage furniture
EN 15372:2008+A1:2015	Applicable for strength, durability and safety of office furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2020	Applicable for storage furniture performance testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for wood-based panel office furniture general technical requirements
GB 18584-2001	Applicable for formaldehyde emission limit of wood furniture for interior decoration
GB/T 10357.5-2011	Applicable for cabinet furniture strength and durability test methods

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for wood-based panel office furniture general technical requirements;
2. GB 18584-2001: Applicable for formaldehyde emission limit of wood furniture for interior decoration;
3. GB/T 10357.5-2011: Applicable for cabinet furniture strength and durability test methods;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OCB-WD2820

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OCB-WD2820

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OCB-WD2820Open Export Tool

Quick Actions

Post an RFQ

Product Description

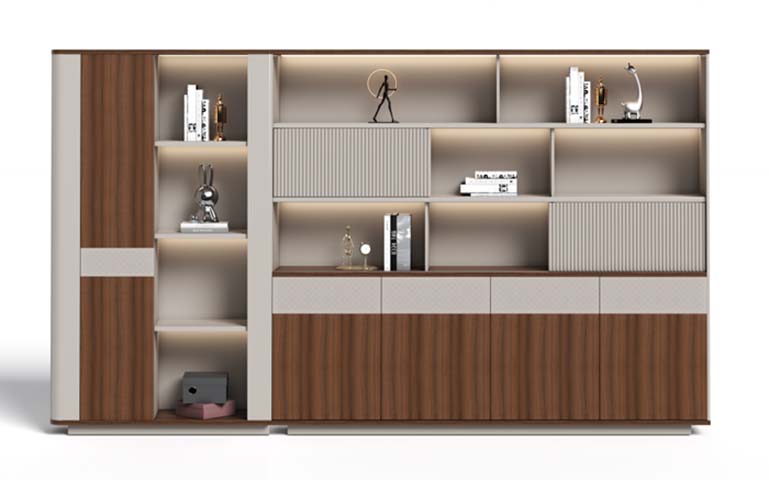

The Modern Two-Tone Executive Office Display Storage Cabinet with LED Lighting, model OCB-WD2820, is an unbranded office storage solution crafted for executive and managerial workspaces. Its visual form features a mixed open and closed layout, balanced by a two-tone design with warm wood grain tones and matte light gray accents that lend a refined, modern aesthetic. The wall-mountable structure integrates open display shelves, tall closed storage compartments, mid-height sliding fluted door panels, lower drawers, and lower cabinet doors for a cohesive, streamlined silhouette. Construction relies on wood-based composite panels with durable finishes. The main cabinet body uses E1 grade particle board with a melamine veneer, while light gray decorative panels employ matte lacquered or PVC-wrapped MDF. Fluted sliding door panels are made of MDF with vertical ribbed texture and a matte light gray finish, internal shelves are 25mm thick melamine-faced particle board, and the plinth base is PVC-edged particle board with a matching matte light gray finish. Integrated warm white LED strip lighting is housed in aluminum channels recessed under each open shelf. Structural panel specifications include a 25mm thick carcass, 9mm thick back panel, 22mm thick door and drawer fronts, and 25mm thick shelves. Practical functions center on flexible storage and visual enhancement. The mixed configuration accommodates varied storage needs: tall closed bays for bulk documents, open shelves for display items, two independent sliding fluted panels that conceal mid-height storage bays, four equal-width lower middle drawers for small-item organization, and lower cabinet doors for additional enclosed storage. Recessed LED strips deliver 4000K warm white ambient accent lighting to highlight displayed objects. Hardware performance includes drawer slides rated for 45kg per pair with 50000 cycle durability, and hinges with a 165° opening angle and 80000 cycle lifespan. Load capacities reach 35kg per open shelf, 30kg per drawer, 40kg per lower cabinet shelf, and 30kg per shelf for distributed loads. Suitable spaces include executive office back walls, where it functions as display and document storage behind an executive desk, as well as manager office or meeting room side walls, supporting both decorative display and concealed file storage. Procurement considerations include that assembly takes 40 minutes per set, with the product shipped in 2 cartons (with a referenced gross weight of 100kg per set and total packaging volume of 0.65m³) following a carcass split design, requiring appropriate space for receiving and on-site assembly.
