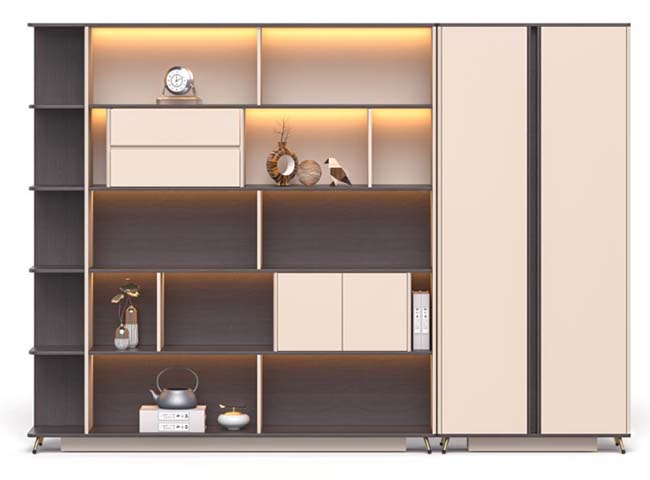

Product supplierFull-Height Illuminated Display Storage Cabinet with Sliding Doors, Matte engineered wood panels, 18 mm thick, in dark brown and cream finishes
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 400 × 2200 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| net weight | 260 kg | |
|---|---|---|
| Top surface static load | 40 kg per 600 mm span | |
| Shelf uniform load | 20 kg per shelf | |
| Drawer load | 15 kg per drawer | |
| Lower cabinet shelf load | 20 kg per compartment | |
| File slot capacity | 6 binders | |
| Display object capacity | 18 items | |
| Recommended wall-anchor load | 100 kg lateral restraint capacity | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main cabinet panels | Matte engineered wood panels, 18 mm thick, in dark brown and cream finishes | |
|---|---|---|
| Interior backs and shelves | Dark wood-grain melamine-faced panels with matching edge banding | |
| Sliding doors | Two cream matte slab doors running in a central dark track system | |
| Drawer and lower door fronts | Cream matte panel fronts with flush integrated reveals and no visible external handles | |
| LED lighting | Warm-white recessed LED strip lighting mounted beneath the upper shelf fronts | |
| Support legs | Gold-tone slender metal legs with dark floor-contact feet |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage layout | Five open left shelves, two drawers, nine illuminated display compartments, two lower doors, and one vertical file slot | |
|---|---|---|
| Sliding door access | Two cream slab doors slide laterally in a central track to expose the right-hand storage cabinet | |
| Display lighting | Warm LED strips illuminate the upper and lower open shelves, providing accent light for objects and books | |
| File and object storage | Open shelves support books and decor, while the narrow vertical slot stores binders upright and lower doors conceal items |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Main panel carton dimensions | 2300 x 450 x 120 mm | |
|---|---|---|
| Door and shelf carton dimensions | 1800 x 500 x 180 mm | |
| Hardware carton dimensions | 450 x 350 x 220 mm | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office and meeting area | Suitable for displaying books, awards, and decorative objects while concealing files behind sliding doors | |
|---|---|---|
| Managerial workspace or lounge reception | The illuminated full-height unit works as a backdrop behind a desk, sofa, or reception seating area |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
