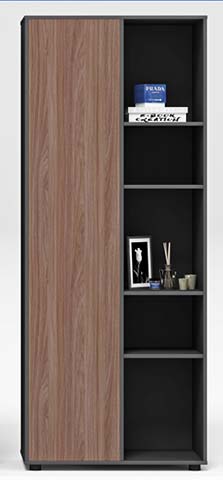

Open and Door-Combined Office Storage High Cabinet (model HCB-OFF-2400-400-1800-001) is listed under Panel-type Filing Cabinet, with overall dimensions of 2400 × 400 × 1800 mm and main material of Particle‑board (PB). Load capacity: 35 kg. Certifications: Mixed,open,and,enclosed,storage,floor-standing,dark,frame,walnut,tone. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2400 x 400 x 1800 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single shelf static load capacity | 35 kg | |
|---|---|---|
| Product net weight | 120 kg | |
| Anti-tip anchorage load rating | 50 kg | |
| Shelf deflection limit at rated load | 3 mm | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet body and shelves | 18mm E1 grade melamine-faced particle board, dark charcoal finish | |
|---|---|---|
| Door panels | 18mm melamine-faced particle board with vertical fluted walnut grain finish | |
| Support frame and dividers | 1.2mm thick dark powder-coated steel | |
| Door knobs | Matte dark brown ABS plastic with square base | |
| Adjustable feet | Nylon with steel threaded insert | |
| Edge banding | 1mm thick matching PVC edge tape on all board cut edges |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Mixed storage layout | Combines open display shelves and enclosed closed-door storage to support both display and concealed item storage | |
|---|---|---|
| Adjustable leveler feet | Threaded feet allow 15mm height adjustment to compensate for uneven office floors | |
| Enclosed storage concealment | Solid doors hide stored documents and supplies to reduce visual clutter in open office areas | |
| Fixed shelf configuration | All open and internal shelves are fixed in position to maximize structural rigidity for heavy office supplies |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office backdrop | Positioned behind a desk to store reference materials, decor, and office supplies in private offices | |
|---|---|---|
| Open office storage wall | Installed along walkway walls to provide shared open and enclosed storage for teams |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
