Automatic mm / inch conversion · Core engineering specifications

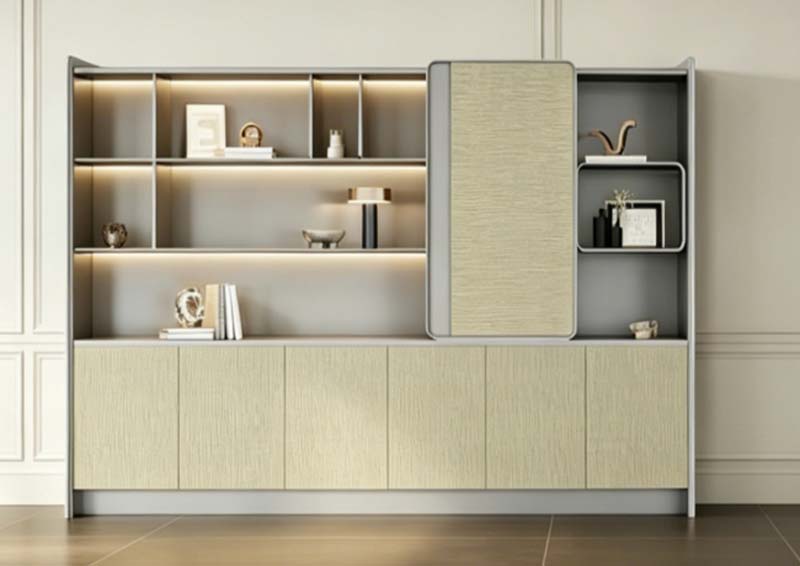

| Overall unit dimensions | 3600 x 400 x 2400 mm | |
|---|---|---|
| Lower closed cabinet section height | 850 mm | |
| Upper open display section clear height | 1400 mm | |
| Kickbase plinth height | 100 mm | |
| Individual lower door width | 600 mm | |
| Central sliding door dimensions | 800 x 1400 mm | |
| Open shelf usable depth | 350 mm | |
| Open shelf vertical clearance between tiers | 380 mm | |
| Frame trim thickness | 20 mm | |
| Rounded edge radius on openings | 20 mm | |
| Adjustable shelf thickness | 18 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Total unit net weight | 400 kg | |
|---|---|---|
| Static load per open shelf | 30 kg | |
| Static load per lower cabinet shelf | 50 kg | |
| LED strip rated lifespan | 50000 hours | |
| Hinge/door latch cycle rating | 100000 cycles | |
| Sliding door track cycle rating | 80000 cycles | |
| Surface abrasion resistance | 2000 revolutions | |
| Recommended maximum uniform wall anchoring load | 400 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main cabinet carcass | 18mm thick ENF-grade melamine-faced engineered wood | |
|---|---|---|
| Lower cabinet doors | Light wood grain melamine finish with matte texture | |
| Frame and kickbase trim | Grey matte powder-coated engineered wood trim | |
| Open shelf inner backing | Matte grey melamine backing panel | |
| Edge banding | 2mm thick PVC edge banding on all exposed edges | |
| Integrated lighting | Recessed 4000K neutral white LED strip lighting under each shelf tier | |
| Lower door hardware | Push-to-open bounce latches for handleless operation | |
| Central sliding door track | Aluminum alloy concealed sliding track with soft-close mechanism | |
| Anti-tip hardware | Steel wall mounting brackets for full-height stability | |
| Shelf support hardware | Metal shelf pins with adjustable position holes | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
Adjustment / rotation / tilt / mobility / storage features
| Display lighting operation | Recessed LED strips illuminate all upper open shelves, with dimmable output | |
|---|---|---|
| Central sliding door access | Tall sliding panel conceals a 800mm wide hidden storage bay when closed | |
| Lower cabinet access | Six handleless press-to-open doors open outward to reveal closed document storage | |
| Adjustable shelving | Upper open shelves support 50mm increment height adjustment for variable item sizes | |
| Cable management for lighting | Concealed internal wiring channels route LED power cords without visible cabling | |
| Soft-close mechanism | Lower doors and central sliding door include soft-close dampers to prevent slamming | |
| Anti-tip protection | Two wall-mounted anchor brackets secure the top of the unit to prevent forward tipping | |
| Modular assembly | Knock-down panel construction allows on-site assembly and wall alignment | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive manager office background wall | Installed as backdrop behind executive desk for document storage and curated decor display | |
|---|---|---|
| Corporate reception waiting area | Used to display corporate awards, branded decor and reading materials for visitor visibility | |
| Conference room perimeter storage | Installed along meeting room walls to store reference materials, AV accessories and room supplies | |
| Private director office suite | Provides combined open display and concealed storage for personal effects and business documents | |
| High-end open office breakout zone | Used as room-dividing storage to display reading materials and decorative items for staff use | |
| Recommended matching furniture | Paired with executive desk, visitor seating and area rugs to create a cohesive premium office aesthetic |
EU Market Access Requirements* EN Standards
| EN 1728:2014 | Domestic and non-domestic storage furniture safety and strength test methods | |
|---|---|---|
| EN 14749:2016 | Domestic and kitchen storage units worktops safety requirements, applicable to cabinet stability | |
| EN 13986:2004+A1:2015 | Wood-based panels for construction, applicable to formaldehyde emission and structural performance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance standard for commercial office use, covering load and stability |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to cabinet dimensional and structural tolerances | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, recommended ENF grade ≤0.025mg/m³ for indoor office use | |
| GB/T 4897.3-2015 | Particleboard specifications for furniture use, applicable to structural board performance requirements |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to cabinet dimensional and structural tolerances; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, recommended ENF grade ≤0.025mg/m³ for indoor office use; 3. GB/T 4897.3-2015: Particleboard specifications for furniture use, applicable to structural board performance requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
