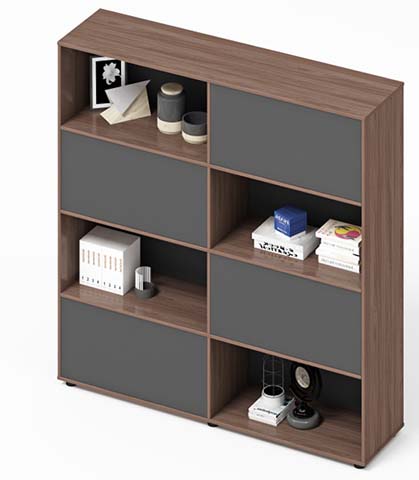

Two-Tone Walnut-Gray Checkerboard Open Display Bookcase (model BK-CHK24-WG01) is listed under Panel-type Filing Cabinet, with overall dimensions of 1448 × 400 × 1905 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: Two-tone,modern,style,Freestanding,floor-standing,structure,Alternating,open/closed,cubby,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1448 x 400 x 1905 mm | |
|---|---|---|
| Cubby layout | 2 columns x 4 rows grid, 8 total compartments | |
| Individual open cubby dimensions | 680 x 360 x 420 mm | |
| Individual closed compartment panel size | 680 x 420 mm | |
| Frame panel thickness | 18 mm | |
| Back panel thickness | 5 mm | |
| Closed door panel thickness | 15 mm | |
| Support foot height | 20 mm | |
| Open shelf usable depth | 360 mm | |
| Top surface usable width | 1400 mm | |
| Floor clearance under unit | 15 mm | |
| Vertical shelf spacing between tiers | 440 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Top surface static load capacity | 100 kg | |
|---|---|---|
| Net product weight | 50 kg | |
| Anti-tip wall anchor load rating | 50 kg | |
| Door hinge cycle rating | 80000 open/close cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Recommended maximum evenly distributed total load | 200 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Structural frame and shelves | E1 grade engineered wood with walnut wood-grain melamine finish | |
|---|---|---|
| Closed storage panels | MDF core with matte gray matte paint finish | |
| Back panel | Hardboard with dark finish | |
| Support feet | PP plastic with non-slip rubber pads | |
| Door hardware | Cold-rolled steel concealed hinges | |
| Edge banding | 0.6mm thick PVC edge banding matching frame finish |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | 4 open display cubbies and 4 fixed closed storage compartments in checkerboard layout | |
|---|---|---|
| Floor protection | Elevated non-slip feet prevent floor scuffing and improve under-unit air circulation | |
| Anti-tip safety | Wall anchor hardware included to secure unit to wall and prevent tipping | |
| Surface maintenance | Smooth wipe-clean melamine and painted surfaces resist common household stains |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Shipping carton dimensions | 1520 x 460 x 180 mm | |
|---|---|---|
| Gross shipping weight | 56 kg | |
| Shipping volume (CBM) | 0.126 CBM | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Home office | Stores books, office supplies, and decorative items with mixed open display and concealed storage | |
|---|---|---|
| Living room | Displays decor, photo frames, and media accessories while hiding clutter behind closed panels |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and structural requirements for domestic and kitchen storage units and worktops | |
|---|---|---|
| EN 71-3:2019 | Migration of certain elements, applicable for surface coating safety |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural stability and finish quality | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E1 grade required for indoor use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural stability and finish quality; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E1 grade required for indoor use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
