Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 1600 x 400 x 2000 mm | |
|---|---|---|
| Left full-height door module width | 450 mm | |
| Right asymmetric open/closed section width | 1150 mm | |
| Base plinth height | 50 mm | |
| Top open shelf height | 350 mm | |
| Middle wide open shelf height | 450 mm | |
| Bottom open shelf height | 300 mm | |
| Shelf panel thickness | 18 mm | |
| Cabinet carcass side panel thickness | 25 mm | |
| Door panel thickness | 18 mm | |
| Open shelf internal depth | 370 mm | |
| Edge band thickness | 1 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static load per open shelf | 14 kg | |
|---|---|---|
| Static load per closed cabinet shelf | 20 kg | |
| Total static load capacity for full unit | 136 kg | |
| Hinge cycle rating per door | 80000 cycles | |
| Door opening angle | 110 degrees | |
| Assembled unit net weight | 41 kg | |
| Anti-tip wall anchor load rating | 50 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass and shelf panels | 18mm/25mm P2 grade particle board with matte white melamine finish | |
|---|---|---|
| Door panels | 18mm particle board with light oak vertical woodgrain laminate | |
| Back panel | 3mm hardboard with white finish | |
| Door hardware | Cold-rolled steel concealed soft-close hinges | |
| Edge treatment | 1mm PVC edge banding matching panel finishes | |
| Anti-tip hardware | Zinc-plated steel wall anchor bracket and strap |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

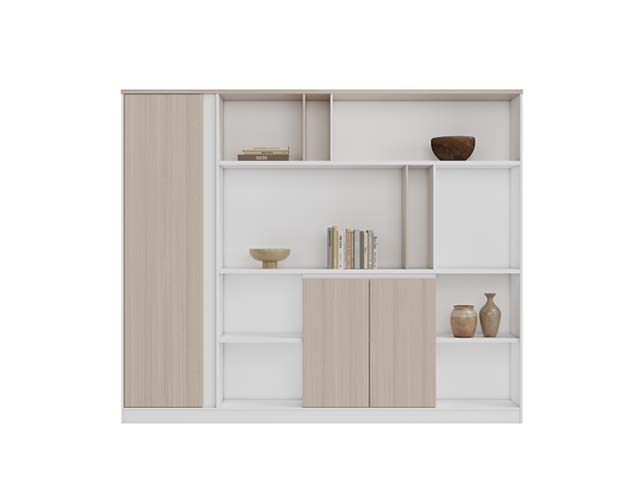

| Storage configuration | 1 full-height left closed cabinet, 2 lower middle closed doors, 7 asymmetric open display shelves | |
|---|---|---|
| Door operation | Handleless push-to-open hinged doors with soft-close damping | |
| Shelf adjustability | Closed cabinet compartments support 3 adjustable shelf positions via pre-drilled holes | |
| Installation type | Floor-standing design with included wall anti-tip anchoring hardware |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Packaged carton dimensions | 1680 x 460 x 220 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office open area storage | Provides book, document and decor display along office walls with concealed supply storage | |
|---|---|---|
| Private executive office use | Matches light wood/white office furniture palettes for organized storage behind workstations |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety requirements for domestic and office storage furniture, including anti-tip performance | |
|---|---|---|
| EN 312:2010 | Particle board performance requirements for furniture structural applications | |
| EN 13986:2004+A1:2015 | Wood-based panel formaldehyde emission Class E1 for indoor use |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel quality and dimensional tolerances | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor use | |
| GB/T 4897.3-2015 | Particle board specifications for furniture use, applicable for structural panel performance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel quality and dimensional tolerances; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor use; 3. GB/T 4897.3-2015: Particle board specifications for furniture use, applicable for structural panel performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
