Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

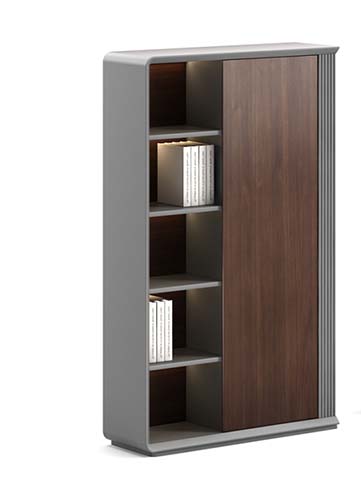

| Overall cabinet dimensions | 900 x 320 x 1970 mm | |
|---|---|---|
| Open-shelf section width | 390 mm | |
| Sliding panel section width | 510 mm | |
| Open shelf compartment count | 5 compartments | |
| Open shelf compartment height | 340 mm | |
| Open shelf interior depth | 285 mm | |
| Sliding door panel height | 1820 mm | |
| Plinth base height | 80 mm | |
| Top cap overhang | 20 mm | |
| Side flute width | 45 mm | |
| Rounded front corner radius | 20 mm | |
| Shelf board thickness | 25 mm | |
| Carcass side panel thickness | 30 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight reference | 80 kg | |
|---|---|---|
| Static load per open shelf | 25 kg | |
| Top panel static load | 40 kg | |
| Concealed storage shelf load | 20 kg per shelf | |
| Recommended evenly distributed total load | 165 kg | |
| Sliding panel cycle rating | 20,000 cycles | |
| Shelf deflection limit at rated load | L/200 | |
| Tip resistance requirement | Pass wall-restrained stability test with 2 anti-tip straps | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer carcass | Matte gray engineered-wood panels with sealed edges and rounded front corner | |
|---|---|---|
| Interior surfaces | Dark brown or charcoal laminate-lined shelf backs and interiors | |
| Horizontal shelves | 25 mm engineered-wood boards with gray exposed front edges | |
| Sliding panel | Walnut-veneered or walnut-grain engineered-wood panel with vertical grain | |
| Side decorative trim | Vertical fluted gray composite or wood slats forming a ribbed side reveal | |
| Plinth and top rails | Layered gray engineered-wood or veneered trim with protective edge banding | |
| Back panel | 5 mm rigid back board recessed into the carcass for racking resistance | |
| Sliding track | Top and bottom aluminum or steel tracks with polymer guide glides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Open storage layout | Five fixed horizontal open bays provide 340 mm vertical clearance for books, binders, and display objects | |
|---|---|---|
| Concealed storage access | The full-height 510 mm panel slides laterally to expose or cover the right storage column | |
| Sliding door operation | Horizontal top-and-bottom tracked movement with panel stops and a 510 mm clear opening width |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Inner packaging | 6 mm EPE corner protectors, 25 kg EPS edge blocks, and 5-layer corrugated carton | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office or study | Placed against a wall for books, binders, awards, and concealed office materials | |
|---|---|---|
| Contemporary lounge or reception area | Used as a styled display and storage boundary with gray and walnut finishes |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
