PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 400 × 2000 mm
Full-height left door width (3-column unit)	400 mm
Upper double door section height	800 mm
Middle open shelf internal height	350 mm
Open shelf usable depth	370 mm
Lower double door section height	800 mm
Plinth base height	50 mm
Internal adjustable shelf thickness	25 mm
Door panel thickness	18 mm
Carcass back panel thickness	8 mm
Edge band thickness	1 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per shelf static load capacity	65 kg
Door hinge cycle rating	100000 cycles
Drawer slide load rating	45 kg
Suggested maximum user weight for top surface use	25 kg
Product net weight	75 kg
Standard warranty period	5 years
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main carcass construction	0.7 mm thick cold-rolled steel sheet
Surface finish	Matte light grey epoxy powder coating
Door panels	18 mm thick flush steel panels with integrated edge trim
Internal shelves	25 mm thick cold-rolled steel with anti-tilt shelf supports
Lock mechanism	3-digit mechanical combination lock
Door hinges	Stainless steel 110-degree opening pivot hinges
Plinth base	1.2 mm thick folded steel kickplate
Back panel	8 mm thick rigid steel sheet
Leveling feet	M8 threaded nylon-tipped adjustable feet
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Lower compartment locking	3-point mechanical combination lock secures both lower right doors
Door opening angle	110 degrees per door
Shelf adjustability	Shelves adjust on 32mm vertical pitch to accommodate varying file heights
Middle open shelf access	Unobstructed horizontal open bay for frequently used items and display
Anti-tip safety	2 wall-mounted anti-tip brackets included to prevent forward tipping
Door alignment	Concealed adjustable hinges allow fine door gap and flush alignment
Floor leveling	Four adjustable feet compensate for up to 15mm of uneven floor slope
Storage configuration	Combination of locked secure document storage and open accessible storage
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private office space	Positioned behind or beside executive desks for secure document and supply storage
Open plan office work zones	Used to divide work areas while providing shared accessible storage and locked filing compartments
Conference room storage	Stores meeting supplies, reference materials, and confidential documents out of sight
Administration and HR offices	Locked lower compartment secures confidential personnel files and sensitive documents
Educational and institutional offices	Durable steel construction withstands high-frequency use in staff and administrative areas
Small office and home office spaces	Narrow 800mm width variant fits compact spaces with full-height storage capacity

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Office furniture - Storage furniture, safety requirements for tall storage units
EN 14073-3:2004	Office furniture - Storage furniture, stability and structural strength test methods
EN 1022:2018	Domestic and office furniture - seating, but applicable for structural stability reference of tall storage

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Standard for storage furniture, covering load, durability, and stability requirements for office cabinets

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for metal office furniture, applicable to structural performance and finish quality
GB/T 13668-2015	Steel filing cabinets for office use, applicable to storage and load performance requirements
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances, applicable to finish emissions

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for metal office furniture, applicable to structural performance and finish quality;
2. GB/T 13668-2015: Steel filing cabinets for office use, applicable to storage and load performance requirements;
3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances, applicable to finish emissions;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OF-STC-2200-LK-OS

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OF-STC-2200-LK-OS

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OF-STC-2200-LK-OSOpen Export Tool

Quick Actions

Post an RFQ

Product Description

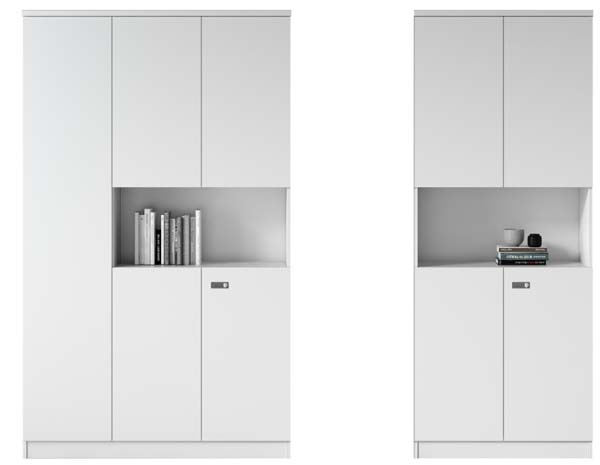

The Handleless Tall Lockable Office Storage Cabinet with Open Display Shelf, model OF-STC-2200-LK-OS, is an unbranded floor-standing tall office storage unit defined by a clean, minimalist modern aesthetic. Its three-column layout is finished in a matte light grey epoxy powder coating, with flush steel doors that eliminate protruding handles for a seamless, uncluttered visual profile. The unit is structured with a 50mm plinth base, divided into three core vertical zones: an 800mm tall upper double-door section, a 350mm tall unobstructed middle open display bay, and an 800mm tall lower double-door section. Constructed entirely from cold-rolled steel for durable long-term use, the cabinet’s main carcass is built from 0.7mm thick steel sheet, with 18mm thick flush door panels, an 8mm rigid steel back panel, a 1.2mm thick folded steel kickplate plinth, and 25mm thick adjustable internal shelves fitted with anti-tilt supports. Hardware includes stainless steel 110-degree opening pivot hinges, a 3-digit mechanical combination lock, and M8 threaded nylon-tipped adjustable leveling feet that compensate for uneven floor slopes. Static load capacity reaches 65kg per shelf, with a 30kg distributed load rating per shelf, hinges rated for 100,000 open-close cycles, and a 25kg maximum weight limit for the top surface. Two wall-mounted anti-tip brackets are included for safety, internal shelves adjust on a 32mm vertical pitch to fit varying file heights, the lower compartment is secured by a 3-point locking mechanism, and concealed hinges allow fine-tuning of door gaps for consistent flush alignment. The unit suits a wide range of workspaces: it can be positioned beside or behind executive desks in private offices for secure document storage, used as a space divider in open-plan zones to offer both shared open access and locked filing, deployed in conference rooms to stow meeting supplies and confidential materials, installed in HR and administrative offices to secure sensitive personnel records, or placed in educational institutional offices to withstand high-frequency daily use. A narrow variant is available for compact small office and home office layouts. Procurement teams should note the unit ships in multiple cartons, requires 40 minutes of assembly per set, carries a 5-year standard warranty, and supports a total packaged gross weight of 100kg per set. Wall anchor installation is required for anti-tip safety, and the lock operates via a mechanical 3-digit code with no keyed access included for the secured lower compartment.

Handleless Tall Lockable Office Storage Cabinet with Open Display Shelf Specifications
