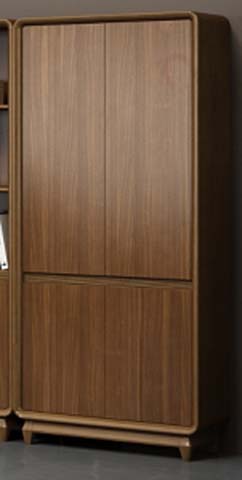

Product supplierWalnut Grain Fluted 4-Door Handleless Freestanding Wardrobe with Rounded Frame, Solid hardwood walnut-toned frame with rounded edges
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2000 × 660 × 2400 mm | |
|---|---|---|
| Overall exterior dimensions | 2000 x 660 x 2400 mm | |
| Integrated plinth base height | 120 mm | |
| Upper door section height | 1280 mm | |
| Lower door section height | 1000 mm | |
| Single door panel width | 500 mm | |
| Internal clear storage depth | 600 mm | |
| Long hanging compartment clear height | 1300 mm | |
| Short hanging/folded storage compartment clear height | 950 mm | |
| Adjustable shelf thickness | 18 mm | |
| Back panel thickness | 9 mm | |
| Rounded frame edge radius | 20 mm | |
| Floor clearance under plinth | 60 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Unit net weight | 260 kg | |
|---|---|---|
| Uniform shelf static load capacity | 30 kg | |
| Maximum door open angle | 110 degrees | |
| Hinge cycle durability | 80000 open/close cycles | |
| Door panel surface abrasion resistance | 2000 cycles | |
| Recommended maximum user load | 150 kg of stored clothing | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer cabinet frame | Solid hardwood walnut-toned frame with rounded edges | |
|---|---|---|
| Door panels | Medium density fiberboard core with vertical fluted walnut veneer | |
| Internal cabinet carcass | 18mm thick E1 grade engineered wood panel | |
| Back panel | 9mm thick engineered wood panel with wood grain finish | |
| Door hardware | Cold rolled steel soft-close concealed hinges with matte finish | |
| Plinth base and support feet | Solid hardwood raised frame with four support feet | |
| Surface finish | Matt PU wood lacquer with scratch-resistant topcoat | |
| Edge banding | 2mm thick matching wood grain PVC edge banding on all cut panel edges | |
| Internal hanging rod | 25mm diameter oval steel tube with powder coated walnut finish | |
| Anti-tip hardware | 2 steel wall anchor brackets included | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Door operation | Push-to-open rebound mechanism for handleless access, no external pulls | |
|---|---|---|
| Hinge damping | Soft-close hydraulic damping prevents slamming and reduces noise | |
| Internal shelving | 4 position adjustable shelves to customize compartment height | |
| Hanging configuration | Dual zone hanging: 1 long hanging section, 1 double short hanging section | |
| Modular compatibility | Aligns with matching open shelving units for extended storage systems | |
| Base stability | Fixed solid wood feet with non-slip pads to protect flooring | |
| Door alignment | Concealed 3D adjustable hinges to fine-tune door gap alignment | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application space | Residential master or guest bedroom | |
|---|---|---|
| Matching interior style | Modern minimalist, wabi-sabi, new Chinese interior design schemes | |
| Target user group | Households requiring enclosed long-term clothing and linen storage | |
| Recommended installation location | Freestanding placement against flat load-bearing wall | |
| Modular expansion option | Pair with matching open bookcase or display units for extended storage wall | |
| Suitable ceiling height requirement | Minimum 2500mm ceiling clearance for installation and top ventilation |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Formaldehyde emission for wood panels | EN 312:2010 E1 grade | |
|---|---|---|
| Furniture mechanical safety requirement | EN 14749:2016 | |
| Hardware cycle durability | EN 15570:2008 |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Formaldehyde emission limit | GB/T 39600ENF grade | |
|---|---|---|
| Wood furniture general technical requirement | GB/T 3324 | |
| Hardware durability requirement | GB/T 28203 | |
| Surface finish abrasion requirement | GB/T 4893.8 |
Standardized tender description text
This product must meet the following technical requirements: 1. Formaldehyde emission limit: GB/T 39600ENF grade; 2. Wood furniture general technical requirement: GB/T 3324; 3. Hardware durability requirement: GB/T 28203; 4. Surface finish abrasion requirement: GB/T 4893.8; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
