PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 400 × 2000 mm
Overall cabinet size	1200 x 400 x 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Indicative net weight	108 kg
Shelf static load capacity	25 kg per shelf
Lower compartment floor load	45 kg per bay
Total distributed storage load	190 kg
Display storage capacity	6 visible shelf positions
Closed storage bays	4 enclosed compartments
Door hardware duty rating	50000 open-close cycles
Recommended wall-restraint load	75 kg tether capacity
Warranty target	5 years
Shelf Distributed Load	30 kg/shelf

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Case and door construction	18 mm warm-white engineered-wood boards with sealed edges and matching flush panel doors
Display doors	Two framed transparent glass doors set in matching light-colored door rails
Top and plinth finish	Taupe-gray laminate or melamine horizontal cap and recessed plinth
Lower doors	Three warm-white hinged panel doors with a central key lock
Shelves and interior	Light-gray or taupe horizontal shelves and back interior with adjustable support points
Hardware	Metal key lock, concealed or semi-concealed hinges, shelf supports and wall-anchoring provision

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Display access	Two upper hinged glass doors provide access to six visible display levels while keeping objects dust-protected
Secure storage	Central lower key lock locks the lower storage section and is suited for confidential files or office supplies
Mixed storage layout	Upper glazed bays display books and decorative items, while upper and lower solid doors conceal general storage
Freestanding placement	Full-height rectangular case and recessed plinth support placement against an office wall, with anti-tip anchoring recommended

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Manager and administrative offices	Combines visible awards or publications with lockable lower storage for documents and office supplies
Meeting-room and reception back wall	Provides a 1200 mm organized storage and display line behind reception or conference seating

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ODC-3B-GL-12004002000

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ODC-3B-GL-12004002000

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ODC-3B-GL-12004002000Open Export Tool

Quick Actions

Post an RFQ

Product Description

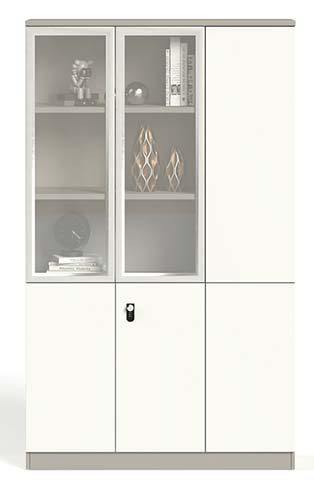

The Three-Bay Office Display Cabinet with Glass Doors and Locked Storage is a tall, freestanding storage piece designed for settings that require both visible presentation and concealed organization. Its full-height rectangular form is arranged as a clean three-bay composition, with two upper framed transparent glass doors set in matching light-colored rails and three lower warm-white hinged panel doors. A taupe-gray laminate or melamine top cap and recessed plinth provide a restrained contrast to the warm-white case, supporting a modern office appearance. The cabinet is constructed with warm-white engineered-wood boards, sealed edges, and matching flush panel doors. The case, door fronts, shelves, back panel, and hardware are specified in distinct thicknesses, with metal hinges, shelf supports, a key lock, and provision for wall anchoring. Inside, the light-gray or taupe shelves and back surface create a neutral backdrop for displayed items, while adjustable support points allow the shelving to be configured as needed. The recessed plinth gives the tall case a grounded visual profile suitable for placement against a wall. Functionally, the upper glazed section provides six visible shelf positions accessed through two hinged glass doors. These doors help keep books, awards, publications, and decorative objects dust-protected while keeping them clearly on view. Below, the solid-door area offers four enclosed compartments across the lower storage layout. A central key lock secures the lower section, making it appropriate for confidential files, reference materials, and office supplies that should not remain openly accessible. Mixed storage is further supported by solid-door areas that conceal general items while the glazed bays maintain a curated display. This cabinet is well suited to manager and administrative offices, where displayed awards or publications can be combined with lockable document storage. It also works as an organized back-wall unit in meeting rooms and reception areas, providing a structured storage and display line behind conference or reception seating. In residential use, its office-oriented form can suit studies, home libraries, or formal living spaces that need both open presentation and closed storage. Procurement planning should account for the cabinet’s full-height scale, fixed 1200 mm width, 400 mm depth, and 2000 mm height, as well as its 108 kg indicative net weight. Load planning should respect the per-shelf, lower-bay, and total distributed storage limits. Buyers should also plan for secure installation using the wall-anchoring provision, confirm delivery packaging and carton counts with the supplier, and allow time for on-site assembly. The unbranded model ODC-3B-GL-12004002000 is a practical choice where a coordinated display-and-lockable-storage cabinet is required.

Three-Bay Office Display Cabinet with Glass Doors and Locked Storage Specifications
