Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

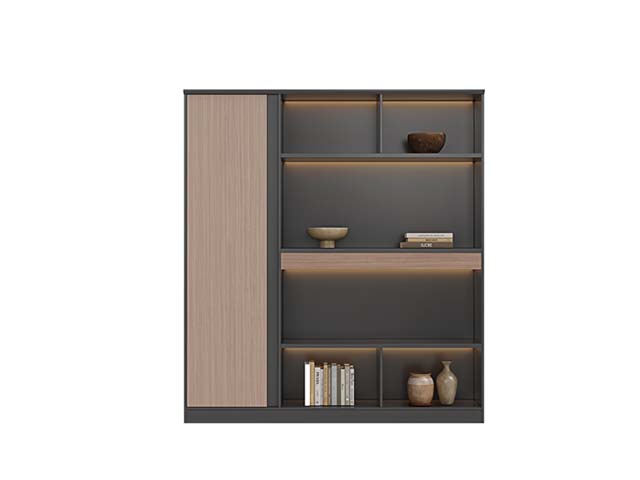

| Overall dimensions | 1820 x 400 x 2120 mm | |
|---|---|---|
| Left sliding door section width | 620 mm | |
| Right open shelving section width | 1200 mm | |
| Top small open cubby height | 300 mm | |
| Middle wide upper open shelf height | 400 mm | |
| Horizontal wood accent panel height | 80 mm | |
| Lower large open shelf height | 550 mm | |
| Bottom small open cubby height | 300 mm | |
| Open shelf usable depth | 320 mm | |
| Closed storage interior depth | 350 mm | |
| LED strip recess depth | 10 mm | |
| Base plinth height | 50 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per open shelf static load capacity | 54 kg | |
|---|---|---|
| Closed cabinet interior shelf static load | 36 kg | |
| Product net weight | 118 kg | |
| Anti-tip anchoring pull resistance | 50 kg | |
| LED strip operational lifespan | 30000 hours | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Frame and shelf interior panels | 18 mm thick E1 grade MDF with matte dark charcoal polyurethane finish | |
|---|---|---|
| Sliding door and accent panel | 18 mm thick particleboard with vertical-grain light oak veneer, UV cured clear topcoat | |
| Back panel | 5 mm thick hardboard with dark matte laminate backing | |
| Sliding door hardware | Powder-coated cold-rolled steel track with nylon glide rollers | |
| Edge banding | 1 mm thick PVC edge banding matching panel finish on all exposed edges | |
| Integrated lighting | Low-voltage 2835 SMD LED strips with frosted polycarbonate diffuser |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Sliding door operation | Single left full-height door slides horizontally along top/bottom tracks to access closed storage, no protruding swing clearance required | |
|---|---|---|
| LED lighting operation | Recessed LED strips illuminate every open shelf compartment, wired to hidden low-voltage power supply with wall switch control | |
| Storage configuration | Mixed layout with 5 open display compartments (2 top cubbies, 1 wide middle shelf, 1 large lower shelf, 2 bottom cubbies) and one full-height enclosed cabinet behind sliding door | |
| Anti-tip safety | Wall anchor hardware included to secure unit to wall studs, preventing forward tipping during use |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office backdrop | Placed behind or adjacent to executive desks for book, decor and document storage in private office spaces | |
|---|---|---|
| Open office display storage | Used as modular divider storage in open plan offices to display awards, books and decorative objects with integrated accent lighting |
EU Market Access Requirements* EN Standards
| EN 312:2010 | Particleboard performance requirements for furniture structural panel compliance verification | |
|---|---|---|
| EN 62471:2008 | Photobiological safety of LED lighting products used in office cabinetry | |
| EN 14749:2016 | Safety and strength requirements for domestic and office storage furniture |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel structural integrity and finish quality | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for structural wood-based panel performance verification | |
| GB 7000.201-2008 | Safety requirements for fixed general purpose luminaires, applicable for integrated LED lighting safety |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel structural integrity and finish quality; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable for structural wood-based panel performance verification; 3. GB 7000.201-2008: Safety requirements for fixed general purpose luminaires, applicable for integrated LED lighting safety; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
