PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 400 × 2200 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Maximum cabinet load	180 kg
Shelf static load	15 kg per shelf
Walnut lower compartment load	30 kg
Tall enclosed-bay load	40 kg
Recommended wall-anchorage pull resistance	800 N
LED service life	30000 hours
LED color temperature	3000 K
Number of display levels	15 open shelf compartments
Recommended maximum floor unevenness	3 mm per 1000 mm
Shelf Distributed Load	30 kg/shelf

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass panels	Matte greige lacquered MDF or particleboard panels, 25 mm exterior thickness
Walnut lower doors	Walnut veneer on composite door blanks with book-matched diagonal grain matching
Greige upper door	Lacquered composite door with rounded inset molding and matched edge profile
Open shelves	Thin light-tone composite or tempered-glass horizontal shelves with concealed front edge
Back panels	Recessed matte backing panels in greige and darker contrast inserts
Vertical trim	Slim gray aluminum or painted-metal dividing strips between cabinet bays
LED strips	Concealed warm-white LED strips mounted under horizontal shelves and top rails
Plinth base	Continuous recessed painted plinth with slab-style floor support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Door storage layout	One tall upper door, two lower walnut doors and one full-height door conceal four separate storage zones
Open display function	Fifteen open compartments provide front-access shelving for decor, books and collectibles with no door obstruction
Integrated lighting	Warm-white LED strips wash each open shelf from the underside or rear edge and require a switched low-voltage power connection

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office or lounge	Suits a manager office, reception lounge or premium meeting area where display objects and concealed materials share one wall
Residential living or study wall	Can serve as a full-wall library and display cabinet behind a sofa, desk or hallway seating group

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TC-LED-3200-2200-MIX

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TC-LED-3200-2200-MIX

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TC-LED-3200-2200-MIXOpen Export Tool

Quick Actions

Post an RFQ

Product Description

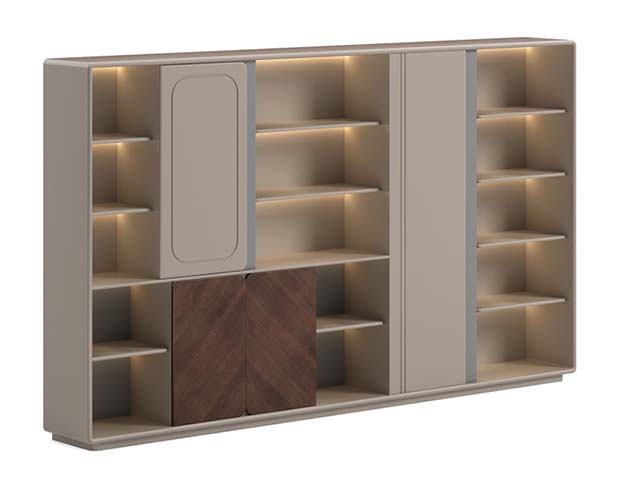

The Tall Mixed Open and Closed Display Storage Cabinet with Integrated LED Shelving combines a structured wall-system appearance with practical storage for premium commercial and residential interiors.Its visual layout mixes concealed storage with fifteen front-access open compartments. One tall upper door, two lower walnut doors and one full-height door conceal four separate storage zones, allowing files, service items or personal objects to be stored out of view. The open shelves provide unobstructed space for decor, books and collectibles, while the cabinet’s vertical divisions create a disciplined gallery-style arrangement. Slim gray aluminum or painted-metal dividing strips separate the bays, and recessed matte backing panels in greige with darker contrast inserts add depth to the display areas. The cabinet is constructed with matte greige lacquered MDF or particleboard carcass panels at 25 mm exterior thickness, a 9 mm back panel, 22 mm door fronts and 25 mm shelves. Lower doors use walnut veneer on composite door blanks with book-matched diagonal grain matching, while the greige upper door features a rounded inset molding and matched edge profile. Open shelving is available in thin light-tone composite or tempered glass, each with a concealed front edge for a clean finish. Warm-white LED strips are hidden beneath horizontal shelves and top rails, washing the open compartments from the underside or rear edge. The lighting has a 3000 K color temperature and 30000 hour service life, and requires a switched low-voltage power connection. Rated capacity supports organized display and general storage use, with a maximum cabinet load of 180 kg, 15 kg static load per shelf, 30 kg for the walnut lower compartment and 40 kg for the tall enclosed bay. Wall anchorage with 800 N recommended pull resistance should be planned during installation. The design suits executive offices, reception lounges and premium meeting areas where displayed pieces and concealed materials share one wall. It also works as a full-wall library or display cabinet in living rooms, studies or hallway seating areas. Procurement planning should account for the two-tone finish, power access for lighting, professional wall anchoring, assembly time and delivery packaging. The supplied logistics reference notes one set across cartons, 40 minutes assembly time, 100 kg packaged gross weight and 0.65 cubic meter packaging volume.

Tall Mixed Open and Closed Display Storage Cabinet with Integrated LED Shelving
