PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2000 × 350 × 2000 mm
Overall unit dimensions	2000 x 350 x 2000 mm
Tapered leg height	150 mm
Lower closed storage section height	680 mm
Central drawer internal dimensions	400 x 300 x 150 mm per drawer
Side double-door cabinet internal dimensions	620 x 320 x 580 mm per cabinet
Open display shelf panel thickness	25 mm
Carcass side/back panel thickness	18 mm
Door panel thickness	20 mm
Largest central open cubby dimensions	650 x 320 x 400 mm
Base rail clearance above floor	120 mm
Edge banding thickness	1 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per open shelf static load capacity	15 kg
Unit net weight (solid wood variant)	90 kg
Hinge open/close cycle rating	50000 cycles
Drawer slide cycle rating	30000 cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass panels	Walnut wood veneer over MDF/particleboard core
Lower door panels	Vertical fluted walnut-tone engineered wood
Top trim and shelf dividers	Wood veneer finished engineered wood
Support legs	Solid rubberwood tapered legs
Door/drawer pulls	Brass-toned zinc alloy bar handles
Door hinges	Cold-rolled steel concealed soft-close hinges
Drawer slides	Cold-rolled steel side-mount full-extension slides
Back panel	5 mm thick hardboard with wood grain finish
Base connecting rail	Solid wood finished to match carcass
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Upper open storage	12 asymmetric staggered fixed cubbies for display of decor and collectibles
Lower side storage	Two double-door enclosed cabinets with fixed internal shelf for concealed storage
Central lower storage	Three stacked full-extension drawers for small item organization
Door operation	Hinged doors open 110 degrees for full interior access
Anti-tip protection	Two wall anchor brackets included to prevent tipping when loaded
Assembly structure	Knock-down flat pack construction with cam-lock fasteners
Shelf adjustability	All open and cabinet shelves are fixed, no adjustable positions
Surface maintenance	Stain-resistant matte wood finish for easy dry-cloth cleaning
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room application	Placed against a main wall for display of art, vases and collectible decor
Tea room application	Used as a tea ware display and storage cabinet in home or commercial tea spaces
Home study application	Installed against a study wall for book storage and decorative object display
Entryway application	Positioned in a foyer for display of entry decor and concealed storage of entry items
Commercial space application	Used in hotel lobbies or club lounges for display of decorative pieces and brand collateral
Wall placement requirement	Positioned flush against a flat interior wall, requires anti-tip anchoring to wall studs

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Applicable for domestic storage furniture safety and performance requirements
EN 12521:2015	Applicable for domestic furniture strength, durability and stability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for general wooden furniture dimensional and structural tolerances
GB 18584-2001	Applicable for indoor decorative material formaldehyde emission limits
GB/T 4893.4-2013	Applicable for surface finish adhesion and abrasion resistance testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for general wooden furniture dimensional and structural tolerances;
2. GB 18584-2001: Applicable for indoor decorative material formaldehyde emission limits;
3. GB/T 4893.4-2013: Applicable for surface finish adhesion and abrasion resistance testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DSB-NC-20035200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DSB-NC-20035200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DSB-NC-20035200Open Export Tool

Quick Actions

Post an RFQ

Product Description

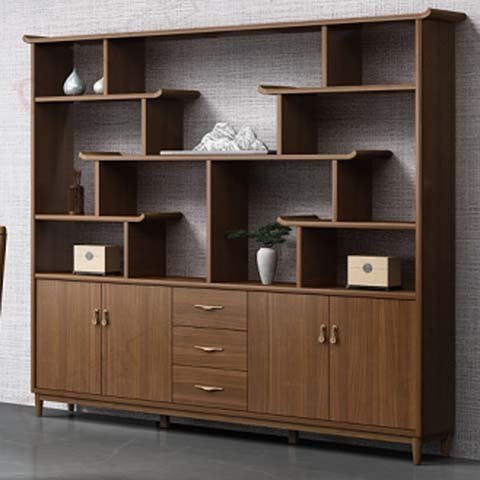

The Modern Chinese Walnut-Tone Asymmetrical Display Storage Bookcase (model DSB-NC-20035200, unbranded) is a versatile floor-standing or wall-mountable storage unit that balances contemporary design cues with subtle traditional Chinese stylistic elements. Its asymmetrical layout features upper open shelving and lower closed storage, creating a dynamic visual profile suited to curated display and functional organization. The warm walnut-tone finish, paired with vertical fluted lower door panels and brass-toned metal bar hardware, delivers a refined, cohesive aesthetic, elevated by tapered solid rubberwood legs that lend a light, elevated silhouette to the substantial 2000 x 350 x 2000 mm frame. Constructed for durable daily use, the bookcase’s core structure uses walnut wood veneer over MDF and particleboard panels, with 25 mm thick open shelf panels, 18 mm carcass side and back panels, and 20 mm thick fluted door panels. The 5 mm wood-grain hardboard back panel and matching solid wood base connecting rail add structural stability, while solid rubberwood tapered legs stand 150 mm tall, elevating the unit off floor surfaces. Hardware is built for long-term performance: cold-rolled steel concealed soft-close hinges support 110-degree door opening for full interior access, with a rated lifespan, while cold-rolled steel side-mount full-extension drawer slides support smooth, complete access to drawer contents. Each open shelf supports a 15 kg static load and 30 kg distributed load, while drawer slides support 45 kg per pair for reliable storage of everyday items. Functionally, the unit’s upper section holds 12 asymmetrically staggered fixed open cubbies ideal for showcasing decor, art, and collectibles, while the lower section houses two double-door enclosed cabinets with fixed internal shelves for concealed storage, plus three stacked central drawers sized to organize small personal items. Two wall anchor brackets are included for anti-tip protection, a critical safety feature when the unit is loaded with displayed items. Delivered as a knock-down flat pack with cam-lock fasteners, the unit requires 40 minutes of assembly time, shipped across cartons with a total packaged gross weight of 100 kg and total packaging volume of 0.65 m³. This bookcase fits seamlessly across residential and commercial spaces: place it flush against a flat living room main wall to display art and vases, use it in home or commercial tea rooms to store and showcase tea ware, install it in a home study for book and decor storage, position it in an entry foyer to hold entry decor and conceal everyday entry items, or deploy it in hotel lobbies and club lounges to display decorative pieces and brand collateral. All installations require secure anchoring to wall studs to prevent tipping. Procurement teams should note that all open and cabinet shelves are fixed with no adjustable positions, and the unit’s overall dimensions require sufficient clear wall space for flush placement; there is no solid wood variant offered outside the solid wood leg and base rail components, and the net weight reflects standard engineered wood construction.

Modern Chinese Walnut-Tone Asymmetrical Display Storage Bookcase Specifications
