Name: Walnut Finish Tall Office Storage Cabinet with Upper Glass Doors and Lower Lockable Solid Doors
Brand: KANAITE
SKU: 7X8WA6

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	800 × 400 × 1850 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total unit static load capacity	225 kg
Net weight	85 kg
Hinge open/close cycle rating	80000 cycles
Finish scratch resistance rating	2H pencil hardness
Warranty period	3 years
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main carcass panels	E1 grade particle board with walnut wood grain melamine finish
Upper door panels	18 mm wood frame with 5 mm clear tempered glass inserts
Lower door panels	18 mm solid wood-grain melamine faced wood-based panel
Door handles	Matte black finished zinc alloy vertical pull handles
Lock mechanism	Zinc alloy central keyed cam lock for lower double doors
Door hinges	Cold-rolled steel concealed cup hinges with soft close option
Shelf panels	18 mm melamine faced wood-based panel, adjustable on metal shelf pins
Back panel	5 mm high density fiberboard fixed with staples to carcass rear
Edge banding	1 mm PVC edge banding matching walnut finish on all exposed panel edges
Plinth base	18 mm melamine faced wood panel forming integrated floor support
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Upper compartment access	Double hinged glass doors swing open 110 degrees to expose adjustable shelves
Lower compartment access	Double hinged solid doors secured by central key lock for confidential document storage
Shelf adjustability	Upper compartment shelves adjust on 32 mm spaced mounting holes for flexible storage heights
Security function	Central key lock secures both lower doors simultaneously with 2 supplied keys
Door alignment	Magnetic door catches hold all four doors flush in closed position to prevent accidental opening
Storage configuration	Upper open display zone for frequently accessed materials, lower closed zone for secured archives
Floor installation	Freestanding floor-mounted design with integrated plinth, includes anti-tip wall anchor for seismic safety
Leveling adjustment	Integrated adjustable foot glides under plinth for uneven floor alignment
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office use	Positioned behind or adjacent to executive desk for document storage and display
Open plan office use	Placed in department work areas for shared team document and supply storage
Finance/HR department use	Lockable lower compartment provides secured storage for confidential personnel or financial files
Home office use	Walnut finish complements home workspace decor while providing organized file storage
Reception/back office use	Upper glass section displays marketing materials, lower section stores operational supplies
Recommended placement	Position against flat load-bearing wall with 100 mm clearance from rear wall for ventilation, secured with included anti-tip anchor

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Applicable standard for office storage furniture safety and strength requirements
EN 14073-3:2004	Applicable standard for office storage furniture stability test methods
EN 12150-1:2015	Applicable standard for thermally toughened soda lime silicate safety glass for door panels

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Applicable standard for storage furniture performance and durability for office use

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable standard for wooden furniture general technical requirements for office storage units
GB 18580-2017	Applicable standard for formaldehyde emission limits for wood-based panel products
GB/T 4893.8-2013	Applicable standard for furniture surface wear resistance testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable standard for wooden furniture general technical requirements for office storage units;
2. GB 18580-2017: Applicable standard for formaldehyde emission limits for wood-based panel products;
3. GB/T 4893.8-2013: Applicable standard for furniture surface wear resistance testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OF-CAB-GL8040185-WL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OF-CAB-GL8040185-WL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OF-CAB-GL8040185-WLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

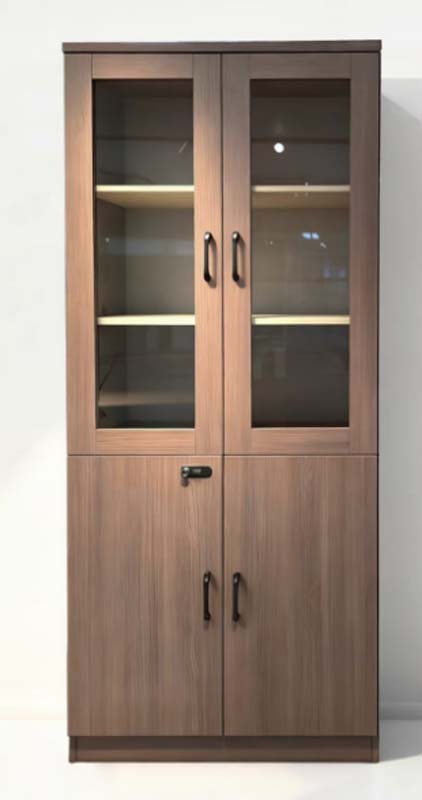

The KANAITE OF-CAB-GL8040185-WL tall office storage cabinet features a streamlined two-tier floor-standing form finished in warm walnut wood grain, balanced for both display and concealed storage across its vertical structure. The unit presents a clean, symmetrical facade: upper sections hold clear tempered glass inserts set in wood frames, while lower sections use matching solid wood-grain panels, all fitted with matte black vertical zinc alloy pull handles for a cohesive, professional aesthetic. Magnetic catches hold all four doors flush when closed, creating a smooth, unbroken visual line suitable for refined workspaces. Constructed with durable engineered wood components, the cabinet uses E1 grade particleboard for its main carcass, with panels edged in 1mm PVC edge banding that matches the walnut finish to protect exposed edges from wear. Upper doors combine wood framing with clear tempered glass, while lower doors use solid wood-grain faced panels. Cold-rolled steel concealed cup hinges with a soft close option support smooth door operation, and shelves rest on adjustable metal pins to accommodate varied storage needs. The upper glass-door compartment opens to reveal adjustable shelves, ideal for displaying frequently accessed materials, reference documents, or marketing collateral. The lower solid-door compartment is secured by a central zinc alloy keyed cam lock that secures both doors at once, creating a dedicated space for confidential records, sensitive personnel files, or archived materials. Adjustable shelf mounting points allow users to customize interior heights to fit items of different sizes, and an integrated plinth supports the freestanding unit, which ships with an anti-tip wall anchor for added stability. This cabinet fits seamlessly across a range of commercial and residential spaces. It works well positioned beside or behind executive desks for private office storage, in open plan department areas for shared team supply and document access, in finance or HR departments to secure confidential records, in home offices to complement warm interior decor while organizing work materials, and in reception or back-of-house zones to display public-facing materials while tucking operational supplies out of sight. For procurement, teams should note the unit ships across multiple cartons, requires on-site assembly, and includes a 3-year warranty. Placement requires a flat load-bearing wall with rear clearance for ventilation, and units must be secured with the included anti-tip anchor for safe installation. Total static load capacity supports standard office storage demands, with individual shelf load ratings suited to typical file and supply weights.

Walnut Finish Tall Office Storage Cabinet with Upper Glass Doors and Lower Lockable Solid Doors Specifications
