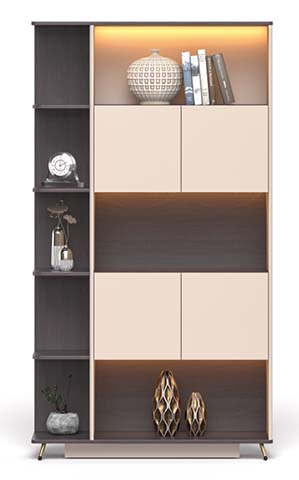

Product supplierModern Freestanding Display Cabinet with LED Lighting and Closed Storage, Laminated wood-based panel, matte dark gray finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 400 × 2000 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single open shelf static load | 30 kg | |
|---|---|---|
| Total cabinet static load (top surface) | 80 kg | |
| Recommended max display weight per open compartment | 15 kg | |
| Cabinet net weight reference | 75 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main cabinet body | Laminated wood-based panel, matte dark gray finish | |
|---|---|---|
| Closed door panels | Laminated wood-based panel, matte light beige finish | |
| Left open shelves | Tempered glass with polished edge | |
| Support legs | Metal with brass-toned finish, tapered design | |
| Interior back panel of display sections | Wood-based panel with matte dark gray laminate | |
| LED light strip | Surface-mounted linear warm-white LED fixture |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| LED ambient lighting | Integrated warm-white LED strip along top edge of display section, operated by inline switch | |
|---|---|---|
| Mixed storage configuration | Combines 5-tier open display on left, 2 rows of closed double-door storage, and 3 open display bays on right | |
| Freestanding installation | Supported by four tapered metal legs, suitable for placement against wall | |
| Adjustable shelf option | Predrilled shelf supports allow repositioning of interior shelves |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Living room display wall | Suitable for displaying collectibles, books and decorative vases in living area | |
|---|---|---|
| Office reception area | Used as decorative storage unit behind reception desk or in lounge zone |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Applicable for domestic and kitchen storage furniture safety requirements | |
|---|---|---|
| EN 62471:2008 | Applicable for photobiological safety of integrated LED light sources |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable for wood-based panel furniture general technical requirements | |
|---|---|---|
| GB 18584-2001 | Applicable for formaldehyde emission limit of wood furniture | |
| GB 7000.204-2008 | Applicable for safety of LED luminaires installed in furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable for wood-based panel furniture general technical requirements; 2. GB 18584-2001: Applicable for formaldehyde emission limit of wood furniture; 3. GB 7000.204-2008: Applicable for safety of LED luminaires installed in furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
