Name: Three-Bay Walnut Finish Office Bookcase Storage Cabinet with Asymmetric Open Cubbies and Lower Closed Doors
Brand: KANAITE
SKU: 8FUGDD

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 500 × 2010 mm
open upper section height	1160 mm
closed lower section height	770 mm
base kickplate height	80 mm
horizontal accent trim thickness	10 mm
clear open shelf depth	400 mm
lower cabinet internal depth	480 mm
single open cubby minimum width	300 mm
single closed lower door width	311 mm
vertical side panel thickness	25 mm
shelf panel thickness	18 mm
lower door panel thickness	18 mm
back panel thickness	9 mm
Carcass Panel Thickness	25 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

unit net weight reference	210 kg
single shelf static load capacity	23 kg
recommended maximum storage load per bay	90 kg
hinge open/close cycle rating	80000 cycles
door maximum opening angle	110 degrees
drawer slide static load rating	25 kg
finish surface abrasion resistance	2000 cycles
warranty period	10 years
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

structural carcass panels	25mm E1-grade high-density particleboard
door and shelf panels	18mm E1-grade engineered wood with walnut grain finish
open cubby back panels	9mm MDF with light taupe matte finish
edge protection	2mm ABS edge banding on all exposed panel edges
horizontal accent trim	10mm light taupe matte laminate strip
base kickplate	80mm light taupe engineered wood trim
door hinges	Zinc-plated Euro-style concealed hinges
shelf support hardware	Metal shelf pins with 32mm vertical hole spacing
back panel fasteners	Staple and glue fixed backing assembly
anti-tip hardware	2 steel wall anchor brackets per bay
surface finish	Scratch-resistant melamine laminate over wood veneer pattern
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

upper open storage layout	Asymmetric divided cubby grid for display and book storage
height-adjustable shelves	3 adjustable shelves per upper bay, repositioned on 32mm spacing
lower closed storage	9 hinged doors spanning full width for concealed filing and supplies
door soft-close mechanism	Concealed soft-close hinges to prevent slamming on lower doors
anti-tip wall anchoring	6 included steel brackets to secure unit to wall, preventing tip-over
modular bay connection	Three separate bays joined with connecting bolts for continuous installation
full-height closed end storage	Solid full-height closed compartments at left and right unit ends
leveling adjustment	Adjustable feet at base to compensate for uneven flooring
cable routing capacity	Knockout ports at back of lower bays for device power cord management
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

executive office background placement	Positioned behind executive desks for document storage and display
open office storage zone	Installed along team work area walls for shared reference material storage
meeting room display storage	Used to store presentation materials and display awards/company decor
library reading area storage	Deployed for book and media storage in corporate or public library spaces
reception area backdrop	Installed behind reception desks for branded display and concealed supply storage
manager private office use	Provides personal storage for files, reference books, and decorative objects

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Office storage furniture safety requirements for tall freestanding units
EN 14074:2004	Office storage furniture strength and durability test methods for cabinets
EN 312:2010	Particleboard performance requirements for furniture structural applications

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Storage furniture standard for shelf load, stability, and durability performance
ANSI/BIFMA e3-2019	Furniture sustainability standard for material emissions and material content

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for panel strength and dimensional tolerances
GB 18580-2017	Formaldehyde emission limits for engineered wood panels, E1 grade ≤0.124mg/m³ requirement
GB/T 4897.3-2003	Particleboard specifications for furniture use, applicable for structural panel performance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel strength and dimensional tolerances;
2. GB 18580-2017: Formaldehyde emission limits for engineered wood panels, E1 grade ≤0.124mg/m³ requirement;
3. GB/T 4897.3-2003: Particleboard specifications for furniture use, applicable for structural panel performance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OBC-W3B-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OBC-W3B-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OBC-W3B-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

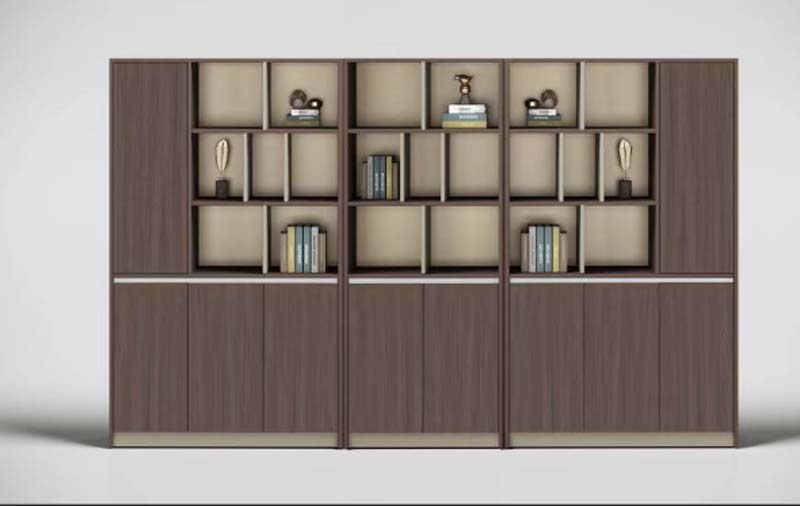

The KANAITE Three-Bay Walnut Finish Office Bookcase Storage Cabinet with Asymmetric Open Cubbies and Lower Closed Doors, model OBC-W3B-2800, is a full-height, freestanding modern executive storage unit designed to balance open display and concealed organization across commercial and residential spaces. Visually, the unit presents a structured, streamlined form defined by its asymmetric upper open cubby grid and continuous lower closed cabinet section, accented by light taupe matte trim that contrasts the warm walnut grain finish of primary panels. The layout integrates solid full-height closed compartments at both left and right ends, with a horizontal light taupe laminate accent separating the upper open zone from the lower door storage, finished with a matching light taupe base kickplate at the floor line. Its construction uses graded engineered wood panels for long-term durability: the structural carcass is built from E1-grade high-density particleboard, with door and shelf panels finished in walnut grain engineered wood, open cubby back panels in light taupe matte MDF, and 2mm ABS edge banding protecting all exposed panel edges. Hardware includes zinc-plated Euro-style concealed soft-close hinges for lower doors, metal shelf pins with evenly spaced vertical adjustment holes, and steel anti-tip wall anchoring brackets included for safe installation. The three individual bays join with connecting bolts to create a seamless continuous unit. Practically, the upper open section features asymmetric divided cubbies with adjustable shelves that reposition to accommodate varied book sizes, display pieces, and frequently accessed reference materials. The lower section spans the full unit width with hinged doors to conceal files, office supplies, and less frequently used items, with soft-close hinges preventing slamming during use. This cabinet suits a wide range of spaces: it works positioned behind executive desks for document storage and display in private manager offices, installed along open office walls for shared team reference material storage, placed in meeting rooms to hold presentation materials and display awards or company decor, deployed in corporate or public library reading areas for book and media storage, or set behind reception desks as a backdrop for branded display and concealed supply storage. Procurement teams should note the unit ships across multiple cartons, with a reference assembly time of 40 minutes per set, and plan for appropriate wall anchoring during installation to support safe use. Weight load ratings for shelves and individual bays should be reviewed to align with intended storage needs, and the modular connection design allows for seamless placement along extended wall runs as required.

Three-Bay Walnut Finish Office Bookcase Storage Cabinet with Asymmetric Open Cubbies and Lower Closed Doors Specifications
