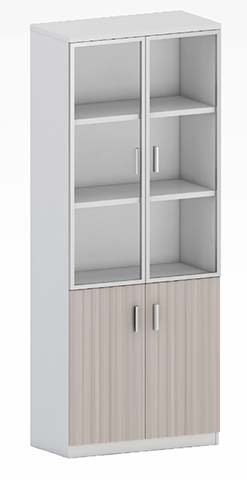

Dual-Tone Tall Office Storage Cabinet with Glass Upper Doors and Fluted Lower Doors (model OFC-STG-4D-GLFL-2050) is listed under Panel-type Filing Cabinet, with overall dimensions of 900 × 450 × 2050 mm and main material of Particle‑board (PB). Load capacity: 30 kg. Certifications: Dual-tone,finish,Freestanding,structure,Swing-door,design,Adjustable,interior,shelves. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 900 x 450 x 2050 mm | |
|---|---|---|
| Plinth base height | 50 mm | |
| Upper glass door section height | 1350 mm | |
| Lower solid door section height | 650 mm | |
| Upper interior shelf spacing | 380 mm | |
| Upper door glass panel thickness | 5 mm | |
| Aluminium door frame width | 20 mm | |
| Vertical pull handle length | 150 mm | |
| Carcass side panel thickness | 18 mm | |
| Interior shelf thickness | 18 mm | |
| Lower door panel thickness | 18 mm | |
| Back panel thickness | 5 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Uniformly distributed load per adjustable shelf | 30 kg | |
|---|---|---|
| Lower compartment total static load capacity | 60 kg | |
| Door hinge cycle rating | 50000 open/close cycles | |
| Door maximum opening angle | 110 degrees | |
| Anti-tip connector load rating | 100 kg | |
| Product net weight | 75 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main carcass panels | 18mm pre-laminated moisture-resistant particle board, light grey matte finish, 1mm PVC edge banding | |
|---|---|---|
| Upper door frames | 20mm wide silver anodized aluminium extrusions, mitered corner joints | |
| Upper door panels | 5mm clear tempered safety glass, flush fit within aluminium frames | |
| Lower door panels | 18mm particle board core, light oak-toned vertical fluted wood veneer face | |
| Hardware components | Polished chrome-finish zinc alloy vertical pull handles, steel concealed hinges, steel shelf supports | |
| Back panel | 5mm hardboard with matching light grey finish, nailed to carcass rear frame |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Upper compartment storage | Three adjustable shelf levels behind double glass swing doors for visible document and item display | |
|---|---|---|
| Lower compartment storage | Full-width concealed storage behind double fluted solid swing doors for non-display items | |
| Shelf adjustability | Shelf supports fit into pre-drilled holes at 32mm increments to modify storage clearance | |
| Door operation | All four doors swing outward on concealed edge hinges, fitted with magnetic door catches for secure closure |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office open plan areas | Provides mixed display and concealed storage for documents, supplies and reference materials | |
|---|---|---|
| Private executive offices | Serves as matching storage for executive desks with light wood and grey two-tone finish |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements for freestanding cabinets | |
|---|---|---|
| EN 312:2010 | Particle board performance requirements for load-bearing furniture panels |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional and structural acceptance | |
|---|---|---|
| GB/T 4897-2015 | Particle board specification for furniture-grade panel structural performance | |
| GB 15763.2-2005 | Safety glazing materials for tempered glass used in furniture door panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural acceptance; 2. GB/T 4897-2015: Particle board specification for furniture-grade panel structural performance; 3. GB 15763.2-2005: Safety glazing materials for tempered glass used in furniture door panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
