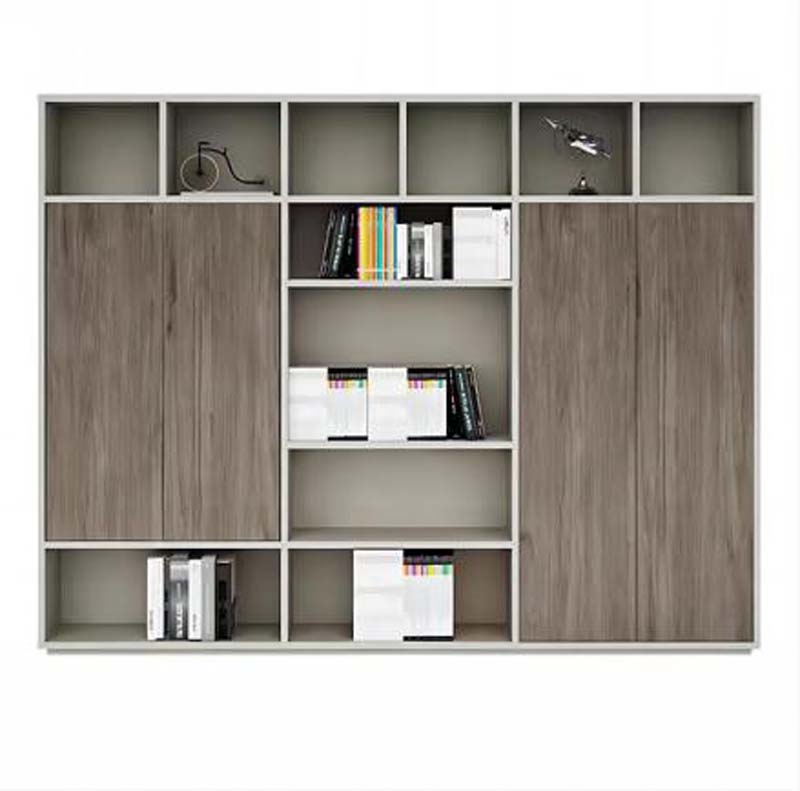

Product supplierTwo-Tone Full-Height Office Storage Bookcase with Open Cubbies and Closed Doors, 25mm E0-grade particleboard with thermal-fused light grey melamine finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 400 × 1800 mm | |
|---|---|---|
| Top open cubby internal size | 380 x 330 x 380 mm | |
| Central open shelf width | 800 mm | |
| Closed cabinet door height (per vertical pair) | 900 mm | |
| Lower left open cubby internal size | 760 x 330 x 380 mm | |
| Lower middle open cubby internal size | 800 x 330 x 380 mm | |
| Shelf panel thickness | 25 mm | |
| Back panel thickness | 9 mm | |
| Edge banding thickness | 3 mm | |
| Door panel thickness | 18 mm | |
| Clearance under cabinet base | 10 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per open shelf static load capacity | 30 kg | |
|---|---|---|
| Unit net weight | 120 kg | |
| Hinge open/close cycle rating | 80000 cycles | |
| Finish surface abrasion resistance | 2000 cycles | |
| Anti-tip connector load rating | 50 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet carcass | 25mm E0-grade particleboard with thermal-fused light grey melamine finish | |
|---|---|---|
| Closed door panels | 18mm engineered wood with taupe grey wood-grain melamine veneer | |
| Back panel | 9mm hardboard with matching light grey finish | |
| Edge banding | 3mm matching PVC edge banding on all exposed panel edges | |
| Door hinges | Concealed steel soft-close cabinet hinges | |
| Shelf supports | Metal shelf pegs with 32mm system adjustment holes | |
| Base glides | Non-slip plastic leveling feet | |
| Anti-tip hardware | Steel wall anchor bracket with screws | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Door operation | Hinged slab doors open 110 degrees to access enclosed storage | |
|---|---|---|
| Shelf adjustability | Central column shelves adjust in 32mm increments for variable storage heights | |
| Storage configuration | 6 top open cubbies, 4 enclosed cabinet bays, 4 lower open shelves, 1 lower middle open bay | |
| Enclosed storage security | Doors accept optional cylinder locks for confidential document storage | |
| Installation leveling | Adjustable base glides compensate for 10mm of uneven floor height | |
| Anti-tip safety | Wall-mounted anchor bracket prevents unit tipping during loaded use | |
| Surface maintenance | Melamine surfaces wipe clean with damp cloth for routine office upkeep | |
| Modular compatibility | Units align side-by-side to create continuous wall storage runs | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office background storage | Sits behind a desk to store books, binders and display decorative items | |
|---|---|---|
| Open-plan office filing zone | Central open shelves hold active documents, closed doors conceal archival files | |
| Home office study storage | Stores books, office supplies and personal decor in residential workspaces | |
| Reception area display storage | Top cubbies display branding items while lower sections store office supplies | |
| Conference room reference storage | Holds meeting materials, reference binders and presentation supplies | |
| Recommended companion furniture | Pairs with 760 mm height executive desks and ergonomic office task chairs |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Domestic and kitchen storage units worktops safety requirements, applicable for structural stability | |
|---|---|---|
| EN 312:2010 | Particleboard performance standard, applicable for structural panel material requirements | |
| EN 13986:2004+A1:2015 | Wood-based panels for construction, applicable for formaldehyde emission performance |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture standard, applicable for office cabinet load and durability requirements | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard, applicable for material emission and recycled content criteria |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for cabinet structural stability and finish quality | |
|---|---|---|
| GB/T 4897-2015 | Particleboard standard, applicable for carcass board material performance requirements | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, applicable for E0-grade material compliance | |
| GB/T 10357.5-2011 | Furniture mechanical test for storage unit shelf static load and durability |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for cabinet structural stability and finish quality; 2. GB/T 4897-2015: Particleboard standard, applicable for carcass board material performance requirements; 3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, applicable for E0-grade material compliance; 4. GB/T 10357.5-2011: Furniture mechanical test for storage unit shelf static load and durability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
