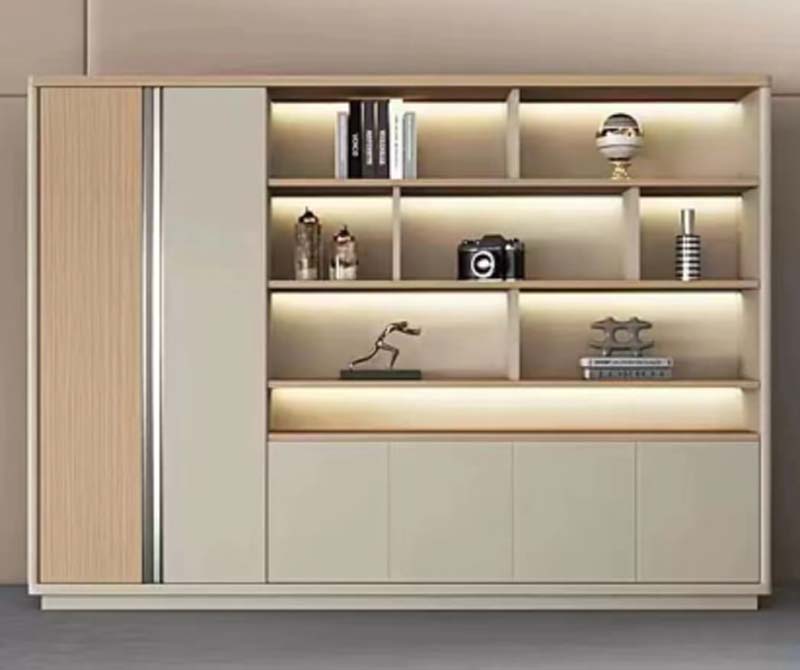

Product supplierModern Two-Tone Office Display Bookcase with LED Lighting, 22mm thick engineered particleboard core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 400 × 2000 mm | |
|---|---|---|
| Plinth base height | 80 mm | |
| Left sliding door section width | 800 mm | |
| Left sliding door internal storage depth | 380 mm | |
| Upper right open display section width | 1600 mm | |
| Open display shelf vertical spacing | 350 mm | |
| Open display shelf depth | 350 mm | |
| Lower closed cabinet section height | 600 mm | |
| Lower cabinet door height | 560 mm | |
| Lower cabinet internal shelf height | 280 mm | |
| Main structural panel thickness | 22 mm | |
| Back panel thickness | 9 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Unit net weight | 170 kg | |
|---|---|---|
| Open display shelf static load capacity | 25 kg per shelf | |
| LED strip power consumption per shelf | 4.8 W/m | |
| Door hinge cycle rating | 80000 open/close cycles | |
| Sliding door track load rating | 50 kg | |
| Recommended maximum user capacity | 1 unit per 12 sqm office workspace | |
| Surface scratch resistance rating | 2H pencil hardness | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass framework | 22mm thick engineered particleboard core | |
|---|---|---|
| Left sliding door panel | Light oak wood grain melamine veneer | |
| Right cabinet door panels | MDF substrate with matte beige polyurethane lacquer finish | |
| Back panel | 9mm thick MDF with matching light wood finish | |
| Shelf surfaces | 22mm thick engineered board with matching matte laminate finish | |
| Edge banding | 1.5mm thick PUR edge banding matching panel finish | |
| LED lighting strips | 3000K warm white SMD LED strips with aluminum channel housing | |
| Sliding door hardware | Aluminum alloy track with nylon roller glides | |
| Lower door hinges | Soft-close concealed steel hinges | |
| Anti-tip hardware | 2 heavy-duty steel wall anchor brackets | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Left section sliding door operation | Full-height panel slides horizontally along aluminum track to conceal tall storage | |
|---|---|---|
| Upper open display lighting | Warm white LED strips mounted under each shelf illuminate display items evenly | |
| Lower cabinet storage access | Four hinged matte beige doors swing open to access two levels of concealed storage | |
| Shelf adjustability | Open and concealed shelves support repositioning at 32mm increments for variable item heights | |
| Door soft-close mechanism | Hinges and sliding door glides include soft-close damping to prevent slamming | |
| LED control function | Touch-sensitive switch mounted on inner cabinet frame controls light on/off and brightness levels | |
| Levelling function | Adjustable feet under plinth base compensate for uneven floor surfaces | |
| Cable management | Concealed channel routes LED power cords along cabinet interior to wall outlet | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office application | Positioned behind executive desk for document storage and curated display of awards and decor | |
|---|---|---|
| Open office collaboration zone | Used as room divider or perimeter storage for shared reference materials and team displays | |
| Home office study | Placed against study wall for book storage, decor display, and concealed office supply organization | |
| Corporate reception area | Installed in reception or lounge zones to display company credentials, branded decor and reading materials | |
| Recommended complementary pairing | Paired with matching executive desk, mobile pedestal, and ergonomic office seating for cohesive workspace design | |
| Surface care requirement | Clean matte finish with soft dry microfiber cloth, avoid harsh abrasive cleaners to prevent finish damage |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Domestic and kitchen storage units, safety and structural performance requirements | |
|---|---|---|
| EN 312:2010 | Particleboard specification, applicable to structural panel performance | |
| EN 62471:2008 | Photobiological safety of LED lighting products for cabinet use | |
| EN 12521:2015 | Furniture strength, durability and safety for storage units |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage units standard, applicable to shelf load and structural durability testing | |
|---|---|---|
| ANSI/BIFMA X5.1-2017 | General office furniture safety requirements for stability |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to cabinet structural stability | |
|---|---|---|
| GB/T 4897-2015 | Particleboard specification, applicable to core panel material performance verification | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, mandatory E1 grade requirement | |
| GB 7000.204-2008 | Safety requirements for built-in cabinet lighting fixtures |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to cabinet structural stability; 2. GB/T 4897-2015: Particleboard specification, applicable to core panel material performance verification; 3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, mandatory E1 grade requirement; 4. GB 7000.204-2008: Safety requirements for built-in cabinet lighting fixtures; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
