PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 400 × 2400 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product weight	380 kg
Per shelf static load capacity	25 kg
LED strip power consumption per meter	12 W
Recommended maximum occupancy for installation	2 persons
Surface abrasion resistance rating	Class 2
Standard warranty period	3 years
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main cabinet carcass	18mm E1-grade particleboard with matte light gray melamine finish
Open shelf back panels	Dark wood grain veneer on 9mm MDF substrate
Decorative ribbed panels	3D fluted light gray MDF with matte lacquer finish
Sliding accent panel	Gray wood-grain melamine with red PVC edge banding
Integrated LED channel	Anodized aluminum profile with frosted polycarbonate diffuser
Door edge trim	Soft rounded PVC edge banding 2mm thick
Internal shelf supports	Zinc-plated steel shelf pins 5mm diameter
Wall anchoring hardware	Galvanized steel wall brackets with expansion bolts
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Integrated LED lighting	Recessed top-mounted strips per shelf bay, 4000K neutral white, driver-integrated
Vertical sliding accent panel	Track-mounted sliding panel covers selected shelf compartments, silent glide mechanism
Closed storage compartments	Left double-door cabinet and right lower cabinets provide concealed storage for clutter
Adjustable internal shelving	5mm pin-supported shelves allow 32mm height increments for flexible storage
Curved open display niche	Radius-edged open bay at lower right for decorative object display
Cable management access	Rear pre-cut ports allow concealed wiring for LED power and display devices
Anti-tip wall anchoring	Pre-drilled mounting points secure cabinet to structural walls for safety
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office backdrop	Provides display and concealed storage behind executive desks for documents and decor
High-end residential study	Combines book storage and display for collectibles in home study spaces
Corporate reception area	Displays corporate awards, branded materials and publications in reception lobbies
Luxury retail display	Showcases premium products in boutique retail environments with accent lighting
Conference room storage wall	Stores meeting materials and displays company credentials in boardrooms

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Safety and performance requirements for domestic and kitchen storage furniture
EN 60598-1:2021	General safety requirements for luminaires, applicable for integrated LED systems
EN 13986:2004	Performance requirements for wood-based panels for structural use in furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Performance standard for storage furniture, applicable for commercial office installation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural and finish acceptance
GB 18580-2017	Formaldehyde emission limit for wood-based panels, applicable for E1 grade material verification
GB 7000.201-2008	Safety requirements for fixed general purpose luminaires, applicable for integrated LED components
GB/T 10357.5-2011	Furniture mechanical performance test for storage units, applicable for load verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish acceptance;
2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, applicable for E1 grade material verification;
3. GB 7000.201-2008: Safety requirements for fixed general purpose luminaires, applicable for integrated LED components;
4. GB/T 10357.5-2011: Furniture mechanical performance test for storage units, applicable for load verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DSC-3600W-LED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DSC-3600W-LED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DSC-3600W-LEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

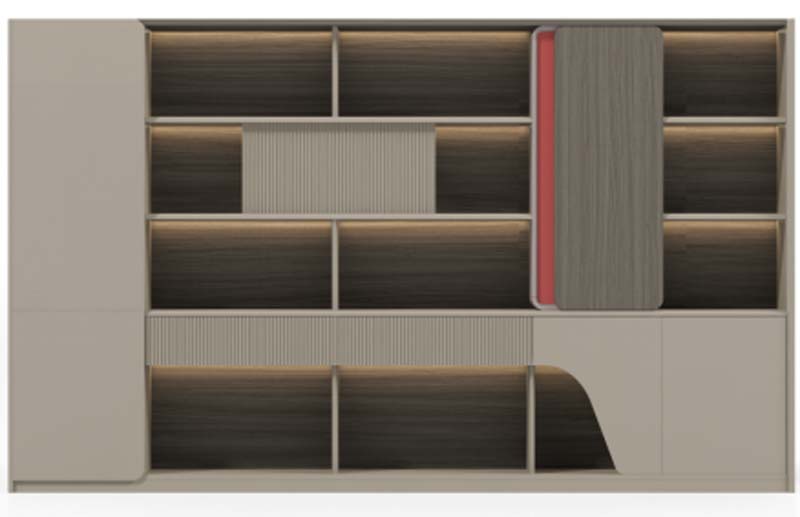

The Contemporary Full-Wall Illuminated Display Storage Cabinet (model DSC-3600W-LED) is an unbranded wall-mounted floor-to-ceiling storage solution designed for seamless, built-in visual integration across commercial and high-end residential settings. Its full-wall layout spans a cohesive 3600mm width, balanced between closed storage sections and open display bays, anchored by soft rounded edge details, a curved lower-right radius-edged open niche, and a track-mounted vertical sliding accent panel finished in gray wood-grain melamine with red PVC edge banding. Decorative 3D fluted light gray MDF panels with matte lacquer add subtle textural depth, while dark wood grain veneer back panels on open shelves contrast against the matte light gray main cabinet carcass for refined visual layering. Constructed for durable daily use, the cabinet’s 25mm thick carcass and open shelves are built from E1-grade particleboard with a matte light gray melamine finish rated for Class 2 surface abrasion resistance, paired with 9mm MDF open shelf back panels, 22mm thick door and drawer fronts with 2mm soft rounded PVC edge trim, and tempered glass accent details. Integrated LED lighting sits within anodized aluminum channels with frosted polycarbonate diffusers, recessed at the top of each shelf bay to deliver 4000K neutral white illumination, with an integrated driver and 12W per meter power consumption. Additional structural elements include 5mm diameter zinc-plated steel shelf pins for adjustable shelving, galvanized steel wall brackets with expansion bolts for anti-tip anchoring, and silent glide hardware for the vertical sliding accent panel. Functionally, the cabinet balances open display and concealed storage: left double-door and right lower closed cabinets hold clutter out of sight, pin-supported adjustable shelves adjust in 32mm height increments to accommodate items of varying sizes, with a 30kg distributed static load capacity per shelf. Rear pre-cut cable ports support concealed wiring for LED power and displayed electronic devices, and the curved open niche provides a dedicated display spot for sculptural or decorative objects. This cabinet is suited for use as an executive office backdrop holding documents and decor, a high-end residential study unit for books and collectibles, a corporate reception display for awards and branded materials, a luxury retail showcase for premium products, or a conference room storage wall for meeting supplies and company credentials. Procurement teams should note the unit requires a maximum of 2 persons for installation, carries a 3-year standard warranty, and ships as a single set split across multiple cartons with 40 minutes of assembly time per unit. The total assembled product weight is 380kg, so pre-installation structural wall assessment is recommended to confirm load-bearing capacity for the anti-tip anchoring system.
