Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

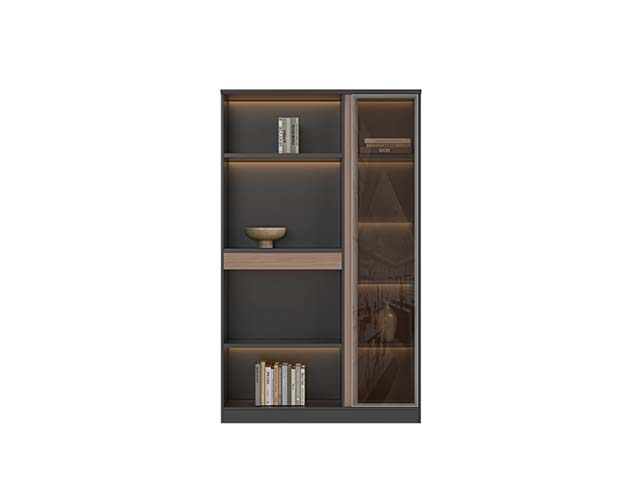

| Overall unit dimensions | 990 x 570 x 2120 mm | |
|---|---|---|
| Open shelf section width | 620 mm | |
| Glass door section width | 370 mm | |
| Top open shelf clear height | 320 mm | |
| Upper middle open shelf clear height | 380 mm | |
| Wood accent trim panel height | 100 mm | |
| Lower middle open shelf clear height | 380 mm | |
| Bottom open shelf clear height | 340 mm | |
| Per open shelf clear depth | 300 mm | |
| Enclosed cabinet internal shelf count | 4 | |
| Tempered glass door thickness | 5 mm | |
| Carcass panel thickness | 18 mm | |
| Back panel thickness | 4 mm | |
| Shelf edge LED strip recess depth | 10 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per open shelf static load capacity | 20 kg | |
|---|---|---|
| LED strip operational lifespan | 30000 hours | |
| Unit net weight | 62 kg | |
| Anti-tip hardware pull-out resistance | 50 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main cabinet carcass | 18mm E1-grade engineered wood with matte dark grey thermofoil finish | |
|---|---|---|
| Horizontal accent trim | Walnut-tone wood veneer over engineered wood substrate | |
| Right-side door panel | 5mm tinted tempered glass with slim wood-grain frame | |
| Shelf surfaces | Matte dark grey engineered wood matching carcass finish | |
| Back panel | 4mm dark grey hardboard with smooth painted finish | |
| Integrated lighting | Recessed warm white 3000K LED strip with aluminum channel housing |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Display lighting system | Recessed warm LED strips cast indirect light down on each open shelf | |
|---|---|---|
| Storage zone layout | Left 4-tier open display + right full-height enclosed glass cabinet | |
| Enclosed storage access | Single hinged tinted glass door with soft-close damping hinge | |
| Stability adjustment | 4 adjustable leveling feet at base for uneven floor alignment |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Home office study space | Provides organized book storage and accent lighting for work areas | |
|---|---|---|
| Contemporary living room | Displays decor items and media behind tinted glass to reduce dust buildup |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and kitchen storage furniture | |
|---|---|---|
| EN 12150-1:2015 | Standard for thermally toughened soda lime silicate safety glass in doors | |
| EN 62471:2008 | Photobiological safety standard for integrated LED lighting systems |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural safety | |
|---|---|---|
| GB/T 15102-2017 | Standard for PVC decorative films used on engineered wood furniture surfaces | |
| GB 7000.201-2008 | Safety requirements for fixed general-purpose lighting fixtures like integrated LEDs |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural safety; 2. GB/T 15102-2017: Standard for PVC decorative films used on engineered wood furniture surfaces; 3. GB 7000.201-2008: Safety requirements for fixed general-purpose lighting fixtures like integrated LEDs; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
