PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

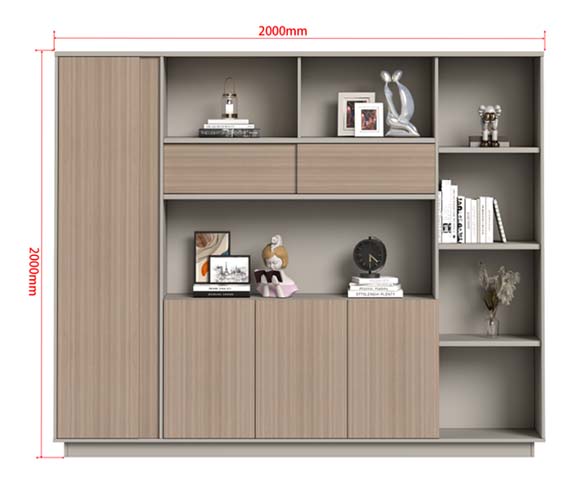

Overall dimensions (W × D × H)	2000 × 400 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static top-surface load	40 kg distributed
Lower enclosed shelf load	25 kg per shelf
Open display shelf load	15 kg per shelf
Drawer load capacity	15 kg per drawer
Total cabinet storage load	180 kg distributed
Drawer runner durability	50000 open-close cycles
Door hinge durability	100000 open-close cycles
Cabinet net weight	165 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main cabinet boards	18 mm melamine-faced particleboard or MDF with sealed edges
Interior finish	Taupe-gray melamine laminate on shelves, dividers and back-lined compartments
Door fronts	Four vertically ribbed wood-tone doors, one full-height and three lower doors
Drawer fronts	Two horizontal wood-tone ribbed drawer fronts matching the doors
Back panel	9 mm melamine or hardboard back set into the cabinet rear
Hardware	Concealed hinges, side-mounted drawer runners and shelf supports

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage layout	One tall closed cabinet, two upper cubbies, two drawers, one open middle bay, three lower doors and four right shelves
Door operation	Four hinged doors swing outward for concealed storage; 105-degree opening angle is the procurement specification
Drawer operation	Two independently opening drawers provide shallow storage above the lower three-door cabinet
Open display function	Six open compartments provide visible storage for books, frames and decorative objects

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packed volume	0.38 m3
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office filing and display area	Suitable for a manager office, meeting room or staff library because it combines closed filing with open display shelves.
Home study or living storage	Suitable for books, decor, documents and personal storage in a study, living room or multifunctional room.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16121:2013 non-domestic storage performance	Applies if the cabinet is specified for office or other non-domestic storage use.
EN 16122:2012 storage furniture test methods	Provides test methods for strength, durability and stability verification.
EN 717-1:2004 formaldehyde emission	Applies to chamber-method formaldehyde verification of wood-based panels.
EN 14749:2016 domestic and kitchen storage safety	Useful safety reference for domestic storage and structural requirements.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024 dimensional and structural quality	Applies to general wooden furniture dimensions, workmanship and structural inspection of this cabinet.
GB/T 10357.5-2011 cabinet strength test	Suitable acceptance basis for shelf, door and cabinet-body strength under load.
GB 18580-2017 formaldehyde emission	Applies to formaldehyde emission verification for wood-based panels used in the cabinet.
GB/T 4893.4-2013 surface resistance	Recommended for checking adhesion and resistance of film-finished furniture surfaces.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024 dimensional and structural quality: Applies to general wooden furniture dimensions, workmanship and structural inspection of this cabinet.;
2. GB/T 10357.5-2011 cabinet strength test: Suitable acceptance basis for shelf, door and cabinet-body strength under load.;
3. GB 18580-2017 formaldehyde emission: Applies to formaldehyde emission verification for wood-based panels used in the cabinet.;
4. GB/T 4893.4-2013 surface resistance: Recommended for checking adhesion and resistance of film-finished furniture surfaces.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CBC-2000X2000-FL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CBC-2000X2000-FL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CBC-2000X2000-FLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Tall Combined Storage Bookcase with Doors, Drawers and Open Shelves, model CBC-2000X2000-FL, is an unbranded floor-standing storage cabinet designed for settings that need both concealed filing and accessible display. Its rectangular modern form combines a tall closed cabinet, two upper cubbies, an open middle bay, two drawers, three lower doors, and four right-side shelves. Six open compartments provide visible storage for books, framed items, and decorative objects, while hinged doors and independently opening drawers keep less display-oriented contents out of view. Four vertically ribbed wood-tone doors, including one full-height door and three lower doors, are matched by two horizontal ribbed drawer fronts, giving the front a consistent textured, wood-grain appearance. Taupe-gray melamine interiors on shelves, dividers, and back-lined compartments provide a neutral contrast with the exterior finish. The cabinet is constructed primarily from 18 mm melamine-faced particleboard or MDF with sealed edges. Main carcass panels and shelves are 25 mm thick, door and drawer fronts are 22 mm thick, and the rear uses a 9 mm melamine or hardboard back set into the cabinet. Hardware includes concealed hinges, side-mounted drawer runners, and shelf supports, all supported by a recessed plinth base. Functionally, the cabinet offers mixed storage for documents, personal items, books, and decor. The four doors swing outward to concealed storage, with a 105-degree opening angle specified for procurement. The two drawers operate separately and provide shallow storage above the lower three-door section. Rated capacity is 40 kg distributed on the top surface, 25 kg per lower enclosed shelf, 15 kg per open display shelf, 15 kg per drawer, and 180 kg distributed for total cabinet storage. Drawer runners are rated for 50,000 open-close cycles and door hinges for 100,000 cycles. This makes the unit suitable for manager offices, meeting rooms, staff libraries, home studies, living rooms, and multifunctional rooms where filing and display share one wall. Purchasers should plan for floor-standing placement and assembly support. Reference assembly time is 40 minutes per set. Packaging information varies by documentation: the cabinet is supplied as one set, with a stated reference of two cartons and packaged dimensions of 2100 by 700 by 350 mm per carton according to carcass split, while packaged gross weight is listed as 100 kg per set in three cartons. The stated total packed volume is 0.38 cubic meters, with a reference packaging volume of 0.65 cubic meters per set.
