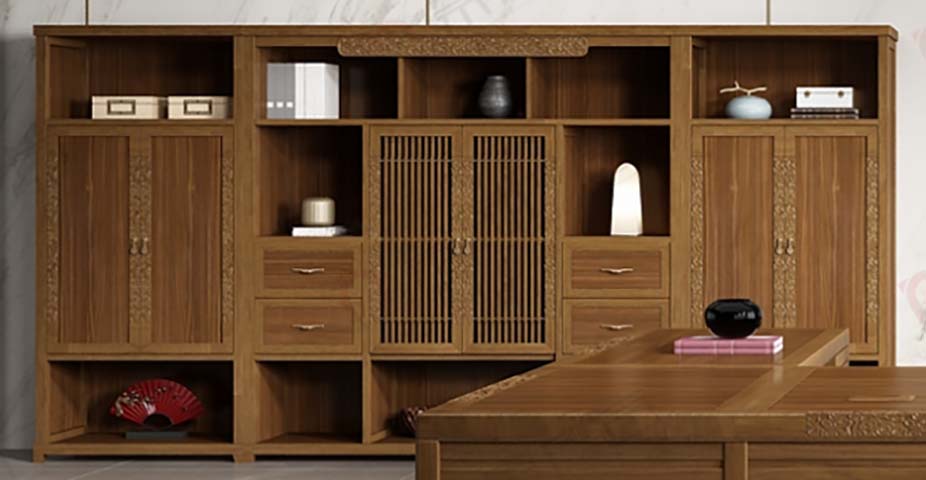

Product supplierNew Chinese Style Solid Wood Executive Office Storage Hutch Cabinet, Solid rubberwood, kiln-dried to 12% moisture content
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 400 × 2200 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Unit net weight | 380 kg | |
|---|---|---|
| Per shelf static load capacity | 40 kg | |
| Total storage capacity | 1200 L | |
| Recommended maximum uniform top load | 60 kg | |
| Door hinge cycle rating | 50000 open/close cycles | |
| Drawer slide cycle rating | 40000 open/close cycles | |
| Structural service life | 15 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Primary frame | Solid rubberwood, kiln-dried to 12% moisture content | |
|---|---|---|
| Door and shelf panels | Medium density fiberboard with walnut wood veneer finish, 0.6mm veneer thickness | |
| Decorative carvings | Solid wood relief carvings, polished clear lacquer topcoat | |
| Lattice door slats | Solid wood vertical slats, 15mm width, 10mm gap between slats | |
| Hardware (handles) | Zinc alloy antique brass finish pull handles, 96mm hole spacing | |
| Door hinges | Cold-rolled steel soft-close concealed hinges, nickel plated finish | |
| Drawer slides | Cold-rolled steel side-mount 3-section full extension slides, zinc plated | |
| Surface finish | Clear matte PU lacquer, 3 spray layers, abrasion resistant coating | |
| Back panel | 5mm thick hardboard, wood grain laminate finish | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage layout | 5 open display shelves, 4 soft-close doors, 4 soft-close drawers, 2 lower open compartments | |
|---|---|---|
| Door operation | Central lattice doors and side solid doors open 110 degrees outward, with soft-close damping | |
| Drawer operation | Four side drawers extend fully 350mm, with soft-close auto-retract in final 50mm of travel | |
| Shelf adjustability | All closed cabinet compartments have 50mm spaced shelf pin holes, allowing 3 height positions | |
| Cable management | Central open compartment has rear cable pass-through cutout, 60mm diameter, for AV equipment wiring | |
| Ventilation design | Central lattice doors provide passive air circulation for stored items, no accumulation of stale air | |
| Anti-tip function | Wall anchor brackets included, secured to wall studs to prevent forward tipping during use | |
| Modular assembly | Three separate base units join together with connecting bolts for stable installation and easy transport | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of packages | 6 | |
|---|---|---|
| Total gross shipping weight | 430 kg | |
| Total shipping volume | 1.48 CBM | |
| Assembly time | 120 minutes | |
| 20ft GP container loading quantity | 18 units | |
| 40ft HQ container loading quantity | 46 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office | Pair with matching executive desk for full-wall storage behind workstations, holding files and display pieces | |
|---|---|---|
| Conference room | Used as rear storage for meeting materials, awards, and tea service supplies | |
| Private study | Home office storage for books, collectibles, and document organization | |
| Cultural institution reception | Display decorative art and institutional documents in formal reception areas | |
| Tea room | Store tea sets, tea cakes, and tea ceremony accessories alongside display shelves | |
| Recommended configuration | Pair with matching L-shaped executive desk and Chinese style office chair for complete set |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Domestic and kitchen storage units and worktops - safety requirements and test methods | |
|---|---|---|
| EN 12521:2015 | Furniture - strength, durability and safety - requirements for non-domestic storage furniture | |
| EN 71-3:2019 | Safety of toys - migration of certain elements, applicable for surface coating heavy metal limits |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional tolerance and finish quality | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances in wood furniture, formaldehyde emission ≤1.5mg/L | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for structural panel performance requirements |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional tolerance and finish quality; 2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances in wood furniture, formaldehyde emission ≤1.5mg/L; 3. GB/T 4897.3-2003: Particleboard for furniture use, applicable for structural panel performance requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
