PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 400 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Open shelf uniform load per level	30 kg
Closed cabinet shelf uniform load per level	40 kg
Top surface static load	80 kg
Drawer static load	25 kg
Net weight	120 kg
Suggested maximum load per linear meter	150 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet body	Particleboard core with melamine laminate
Door panels	MDF with vertical fluted texture + walnut melamine
Shelves	25mm thick melamine-faced particleboard
Internal back panel	3mm thick fiberboard with light gray matte finish
Lighting system	Embedded LED strip with warm white output
Base plinth	Light gray matte powder-coated metal

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Sliding door storage	Two upper fluted doors slide horizontally to cover open bays
Integrated LED lighting	Warm white LED strips illuminate each open display shelf
Zoned storage layout	Upper open display + middle drawer + lower closed cabinet
Drawer storage	Four equal-width upper drawers for small office supplies

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Placed behind executive desk for file storage and decorative display
Open office reception area	Used as background storage and display unit in visitor zones

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OSC-2400-WN-LG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OSC-2400-WN-LG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OSC-2400-WN-LGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

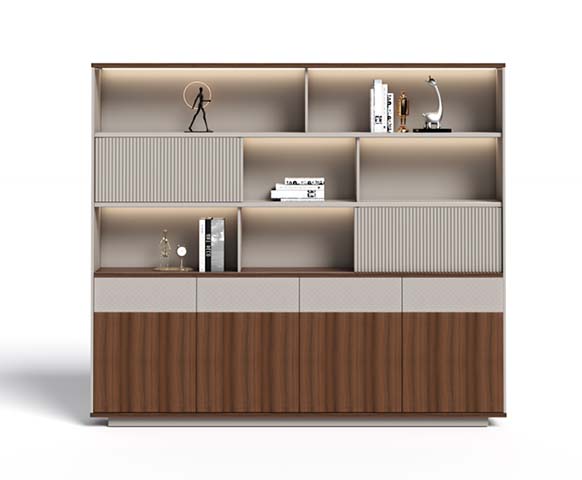

This modern two-tone executive storage cabinet with LED open shelves, model OSC-2400-WN-LG, is an unbranded office file cabinet designed to blend functional storage with refined visual appeal. Its design features a mixed open and closed storage layout, defined by vertical fluted door panels and integrated warm white LED lighting that accentuates display areas, while the two-tone finish balances warm wood tones and neutral accents for a polished contemporary look. The cabinet follows a zoned storage structure: upper open display shelves, a middle drawer section, and lower closed cabinetry, creating distinct spaces for different storage needs. Constructed with durable engineered wood materials, the cabinet body uses particleboard core with melamine laminate, while door panels are made of MDF with vertical fluted texture and walnut melamine finish. Shelves are 25mm thick melamine-faced particleboard, the internal back panel is 3mm thick fiberboard with a light gray matte finish, and the base plinth is light gray matte powder-coated metal for stable support. Key structural specifications include a 25mm thick carcass panel, 9mm thick back panel, 22mm thick door and drawer fronts, and an overall size of 2400 x 400 x 2000 mm. Practical functions are tailored to office storage needs. The upper section has two fluted sliding doors that move horizontally to cover or reveal open bays, allowing flexible access and display options. Warm white LED strips are embedded along each open display shelf to illuminate stored items. The middle section includes four equal-width drawers designed for small office supplies, and the lower closed cabinet provides secure, enclosed storage. Load capacities are rated at 30 kg per level for open shelves, 40 kg per level for closed cabinet shelves, 80 kg for the top surface static load, 25 kg per drawer static load, and 150 kg maximum load per linear meter. The cabinet has a net weight of 120 kg. This storage cabinet is ideal for executive offices, where it can be placed behind an executive desk to support file storage and decorative display. It also works well in open office reception areas, serving as a background storage and display unit in visitor-facing zones. For procurement, note that each set ships in 2 cartons, with a reference packaged gross weight of 100 kg per set, total packaging volume of 0.65 m³ per set, and individual carton dimensions of 2100×700×350 mm based on carcass split design. Assembly takes 40 minutes per set, allowing for relatively straightforward on-site setup.
