Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 2400 x 420 x 2100 mm | |
|---|---|---|
| Single module width | 800 mm | |
| Open shelf internal clearance height | 250 mm | |
| Door panel height (each side bay) | 1300 mm | |
| Center drawer internal height (each) | 120 mm | |
| Base leg height | 100 mm | |
| Shelf depth | 380 mm | |
| Slatted grille slat width | 15 mm | |
| Back panel thickness | 16 mm | |
| Shelf panel thickness | 25 mm | |
| Door panel thickness | 20 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Per-shelf static load capacity | 60 kg | |
|---|---|---|
| Door hinge open angle | 110 degrees | |
| Hinge cycle rating | 80000 cycles | |
| Drawer slide cycle rating | 50000 cycles | |
| Unit net weight | 180 kg | |
| Anti-tip connector requirement | 2 units | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main carcass frame | Walnut-toned solid wood with clear matte lacquer finish | |
|---|---|---|
| Shelf panels | 25mm thick solid wood edge-banded panels | |
| Vertical slatted grille doors | Solid wood vertical slats with framed construction | |
| Solid flat doors | Solid wood veneer over engineered wood core | |
| Interior back panels | Dark brown matte laminated MDF panels | |
| Drawer hardware | Brushed brass-finish zinc alloy pulls and soft-close slides | |
| Door hinges | Concealed cold-rolled steel hinges with nickel plating | |
| Base legs | Solid wood tapered short legs with floor protection pads | |
| Edge banding | 1mm thick matching wood PVC edge banding | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features

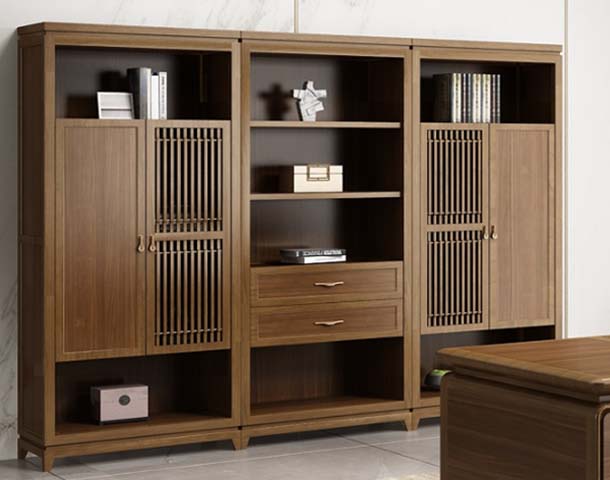

| Side bay storage layout | Top open shelf, dual split doors, lower open shelf | |
|---|---|---|
| Center bay storage layout | Three tiered open shelves, two pull-out drawers, lower open shelf | |
| Door operation | Side-hinged swing doors with metal pull handles, 110° opening | |
| Drawer operation | Fully extending soft-close pull-out drawers with metal pulls | |
| Shelf adjustability | Fixed non-adjustable shelves across all compartments | |
| Ventilation design | Vertical slatted grille doors allow air circulation for stored items | |
| Display function | Contrasting dark back panels for highlighted display of decor and books | |
| Wall anchoring | Pre-drilled anti-tip points for secure wall attachment | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive office background storage | Installed behind executive desk for document and decor display | |
|---|---|---|
| Study room book storage | Wall-aligned placement for book, file and decorative item storage | |
| Conference room reference storage | Used for material and award display along conference room walls | |
| Display configuration | Place decorative items on open shelves, store files in closed compartments | |
| Matching furniture coordination | Pairs with matching walnut wood executive desks and office chairs |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and office storage units | |
|---|---|---|
| EN 12521:2015 | Strength, durability and safety for office storage furniture |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture | |
|---|---|---|
| GB 18584-2001 | Limit of formaldehyde emission for wooden furniture | |
| GB/T 4897.3-2003 | Particleboard for furniture use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture; 2. GB 18584-2001: Limit of formaldehyde emission for wooden furniture; 3. GB/T 4897.3-2003: Particleboard for furniture use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
