PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	800 × 400 × 1800 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Shelf static load capacity	40 kg per shelf
Net weight reference	45 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet carcase panels	Dark melamine-faced particle board, 16mm thick
Door panels	Light gray melamine-faced particle board, 16mm thick
Door lock assembly	Metal cylinder key lock with latch
Door edge treatment	PVC edge banding, 1mm thickness
Plinth base	Dark melamine-faced particle board kick plinth
Internal shelves	Adjustable melamine-faced particle board shelves

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Lower compartment locking	Keyed cylinder lock secures both lower doors
Upper compartment access	Two swing doors without integrated lock
Adjustable internal storage	Height-adjustable shelves inside cabinet
Freestanding installation	Floor-placed design with anti-tip wall anchor provision

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office storage	Suitable for filing documents and office supplies behind lockable doors
Staff room or back-of-house storage	Works for personal item and material storage in workplace support areas

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TC-2D-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TC-2D-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TC-2D-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

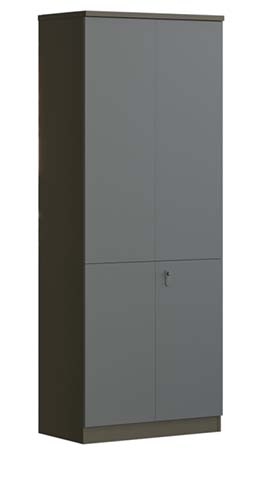

The 2-Door Locking Tall Storage Cabinet, model TC-2D-1800, is an unbranded high cabinet designed for practical, secure storage across professional settings. Its visual form balances clean, functional lines with a restrained color palette, pairing dark melamine-faced particle board for the cabinet carcase and plinth base with light gray melamine-faced door panels, finished with 1mm thick PVC edge banding for a polished, durable appearance. The dual-door layout is split vertically, creating two distinct storage zones that support organized access to items of varying sizes and security needs. Constructed with laminate-faced particle board as the core material, the cabinet features a robust build with defined panel thicknesses for structural integrity: 25mm thick carcass panels and shelves, 22mm thick door fronts, and a 9mm thick back panel. Key hardware includes a metal cylinder key lock with latch for the lower compartment, heavy-duty hinges rated for 80,000 opening cycles with a 165-degree opening angle, and drawer slides that support 45kg per pair across 50,000 cycles. Internal shelves are made of adjustable melamine-faced particle board, allowing users to customize interior spacing to fit different stored items. Practically, the cabinet offers tiered access and security: the lower compartment’s keyed lock secures both lower doors to protect valuable or sensitive items, while the upper compartment’s two swing doors provide quick, unrestricted access for frequently used supplies. Its freestanding design supports floor-placed installation, with integrated anti-tip wall anchor provisions to ensure stability, in line with guidance that products over 1200mm in height use at least 2 wall fixing points. Each shelf supports a static load of 40kg and a distributed load of 30kg, making the unit suitable for storing a range of office materials and personal items. This high cabinet is well-suited for open-plan office spaces, where it can store documents and office supplies behind lockable doors to keep work areas tidy and secure. It also works effectively in staff rooms or back-of-house workplace areas, providing dedicated storage for personal items and operational materials. For procurement, buyers should note the cabinet ships in 2 cartons per set, with a total gross weight of 100kg and a packaging volume of 0.65m³, and requires 40 minutes of assembly per set. The recommended warranty coverage includes 5 years for the carcass, 3 years for hardware components, and 2 years for the finish, helping to plan long-term maintenance and cost expectations.

2-Door Locking Tall Storage Cabinet Specifications
