Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall dimensions | 1200 x 400 x 1800 mm | |
|---|---|---|
| upper glass section height | 1000 mm | |
| lower solid door section height | 800 mm | |
| top and base trim thickness | 30 mm | |
| horizontal mid-section trim thickness | 20 mm | |
| upper glass door frame width | 20 mm | |
| individual lower solid door width | 400 mm | |
| upper glass door panel thickness | 5 mm | |
| carcass panel thickness | 18 mm | |
| top panel thickness | 25 mm | |
| back panel thickness | 18 mm | |
| adjustable shelf thickness | 18 mm | |
| upper internal shelf spacing | 320 mm | |
| lower internal shelf spacing | 380 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| per shelf static load capacity | 30 kg | |
|---|---|---|
| net product weight | 90 kg | |
| hinge open angle for solid doors | 110 degrees | |
| hinge cycle durability | 80000 cycles | |
| door lock supplied key count | 2 | |
| wall anti-tip connector quantity | 2 | |
| manufacturer warranty period | 5 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| carcass panels | 18mm melamine-faced MDF with light oak vertical wood grain | |
|---|---|---|
| upper door panels | 5mm tinted tempered glass set in silver-gray metal frames | |
| lower door panels | 18mm melamine-faced MDF matching light oak wood-grain carcass | |
| trim components | Dark gray impact-resistant ABS edging and plinth trim | |
| hardware | Zinc-alloy key lock, steel shelf brackets, steel concealed hinges | |
| edge banding | 2mm thick matching PVC edge banding on all exposed panel edges |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

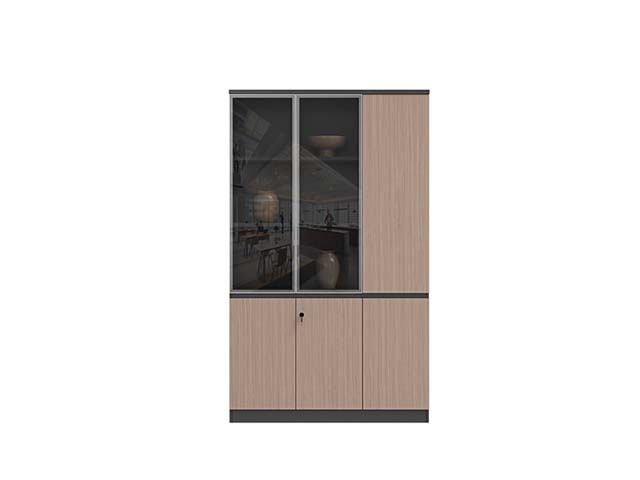

| storage zone configuration | Upper display zone with two sliding framed glass doors, lower concealed zone with three hinged solid doors | |
|---|---|---|
| locking function | Central key lock secures all three lower solid doors for restricted supply/file storage | |
| internal shelf adjustment | 3 height-adjustable shelves in upper section, 1 fixed/1 adjustable shelf in lower section | |
| anti-tip safety | Pre-drilled wall anchor points with included anti-tip brackets to prevent forward overturn |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| open office storage zones | Fits along partition walls for shared document, supply and display storage in open plan workspaces | |
|---|---|---|
| executive and manager offices | Provides locked storage for confidential files plus display space for awards and decor |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture, safety requirements for storage cabinets | |
|---|---|---|
| EN 14073-3:2004 | Office storage furniture, stability and structural strength test methods | |
| EN 12150-1:2015 | Toughened soda lime silicate glass for building/door use, applicable to upper glass panels |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance standard for office use, load and durability testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel office storage cabinets | |
|---|---|---|
| GB/T 4893.4-2013 | Surface abrasion resistance test for furniture finishes, recommended acceptance for cabinet surfaces | |
| GB 28007-2011 | Safety requirements for children's furniture anti-tip provisions, applicable stability reference | |
| GB/T 10357.5-2011 | Furniture mechanical performance test for storage units, shelf and structure load testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel office storage cabinets; 2. GB/T 4893.4-2013: Surface abrasion resistance test for furniture finishes, recommended acceptance for cabinet surfaces; 3. GB 28007-2011: Safety requirements for children's furniture anti-tip provisions, applicable stability reference; 4. GB/T 10357.5-2011: Furniture mechanical performance test for storage units, shelf and structure load testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
