Automatic mm / inch conversion · Core engineering specifications

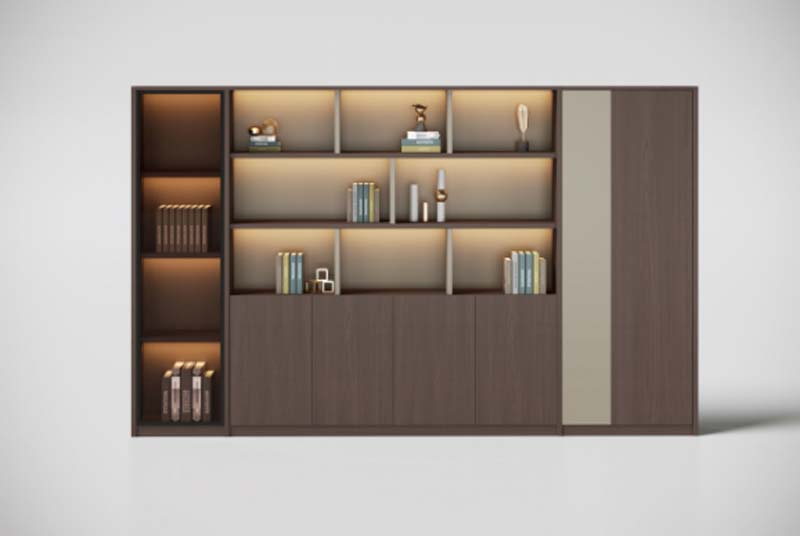

| Overall dimensions | 3600 x 400 x 2200 mm | |
|---|---|---|
| Left narrow open section width | 600 mm | |
| Middle display + storage section width | 2200 mm | |
| Right tall closed section width | 800 mm | |
| Open shelf vertical spacing | 350 mm | |
| Lower closed cabinet door height | 800 mm | |
| Open shelf usable depth | 380 mm | |
| Taupe accent panel width | 200 mm | |
| Right closed door width | 600 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Per open shelf static distributed load | 30 kg | |
|---|---|---|
| Lower cabinet interior shelf static load | 50 kg | |
| Total unit static load capacity | 300 kg | |
| LED strip operational lifespan | 30000 hours | |
| Recommended maximum user weight for anti-tip safety | 100 kg | |
| Product net weight | 280 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
| Carcass core panel | 18mm ENF-grade moisture-resistant particleboard | |
|---|---|---|
| Exposed surface finish | Dark brown wood grain melamine laminate | |
| Right section accent panel | Matte light taupe melamine finish | |
| Exposed edge banding | 2mm thick PVC edge banding | |
| Back panel | 9mm thick MDF backing panel | |
| Cabinet door mechanism | Push-to-open touch latch hardware | |
| Open shelf lighting | Recessed warm white LED strip lights | |
| Wall anchoring hardware | Steel anti-tip wall brackets | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Open shelf display lighting | Integrated recessed LED strips illuminate all open display tiers from upper shelf edges | |
|---|---|---|
| Cabinet door operation | Push-to-open latch mechanism allows touch-release access with no external handles | |
| Adjustable shelf positioning | Open and closed cabinet shelves support 50mm incremental height adjustment via pre-drilled holes | |
| Wall anchoring safety | Steel anti-tip brackets secure unit to structural wall to prevent forward overturn | |
| Closed storage concealment | Flush doors conceal stored files and supplies to maintain formal office aesthetic | |
| LED power connection | Hardwired or plug-in low-voltage power supply for integrated lighting, compatible with standard office outlets | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive office background wall | Installed behind executive desk to display awards, books and decor while hiding office supplies | |
|---|---|---|
| Manager office storage | Provides mixed open display and closed document storage for department manager workspaces | |
| Corporate reception display area | Used to showcase company credentials, publications and decorative items in reception zones | |
| Boardroom perimeter storage | Installed along boardroom walls to store meeting materials and display corporate artifacts |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to structural stability and strength testing | |
|---|---|---|
| EN 13722:2004 | Furniture strength and durability for storage units, applicable to shelf and door cycle testing |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel office cabinet structural performance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, ENF grade ≤0.025mg/m3 recommended for acceptance | |
| GB/T 4897.3-2015 | Particleboard for furniture use, applicable to core panel structural and moisture performance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel office cabinet structural performance; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, ENF grade ≤0.025mg/m3 recommended for acceptance; 3. GB/T 4897.3-2015: Particleboard for furniture use, applicable to core panel structural and moisture performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
