Automatic mm / inch conversion · Core engineering specifications

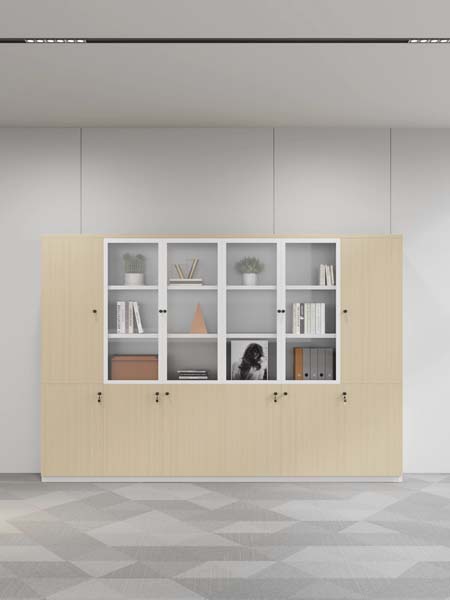

| Overall dimensions | 2400 x 400 x 2000 mm | |
|---|---|---|
| Central glass display section width | 1600 mm | |
| Central glass grid compartment size | 400 x 333 x 350 mm | |
| Upper side solid door width | 400 mm | |
| Lower solid door height | 600 mm | |
| Plinth base height | 50 mm | |
| Internal shelf thickness | 25 mm | |
| Carcass panel thickness | 18 mm | |
| Glass door thickness | 5 mm | |
| Door hinge overlay | 18 mm | |
| Edge band thickness | 1 mm | |
| Internal shelf adjustable pitch | 32 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Per-shelf static load capacity | 50 kg | |
|---|---|---|
| Net weight | 145 kg | |
| Hinge open/close cycle rating | 80000 cycles | |
| Door lock key differ count | 200 | |
| Surface abrasion resistance | 400 cycles | |
| Anti-tip connector load rating | 50 kg | |
| Warranty period | 5 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Carcass panels | 18mm E1 grade melamine-faced particleboard | |
|---|---|---|
| Central display framing | 1.2mm thick powder-coated white steel | |
| Glass door panels | 5mm clear tempered glass | |
| Solid door panels | 18mm melamine-faced MDF | |
| Back panel | 3mm hardboard | |
| Internal shelves | 25mm melamine-faced particleboard | |
| Door hardware | Zinc alloy keyed locks + steel concealed hinges | |
| Edge banding | 1mm PVC edge band | |
| Plinth base | 0.8mm powder-coated white steel | |
| Shelf supports | Nickel-plated steel shelf pins | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
Adjustment / rotation / tilt / mobility / storage features
| Door operation | Swing-out solid and glass doors with 110-degree opening angle | |
|---|---|---|
| Locking system | Keyed cam locks on all 6 doors, one key operates all unit locks | |
| Shelf adjustment | Adjustable shelves in all compartments with 32mm pitch height positions | |
| Storage zoning | 12 front-facing glass display cubbies + 6 concealed solid-door compartments | |
| Wall anchoring | 2 included anti-tip wall brackets to secure cabinet to wall structure | |
| Leveling adjustment | Integrated adjustable foot pads under plinth base with 10mm adjustment range | |
| Cable management | Pre-punched rear cable access ports in select lower compartments | |
| Surface protection | Stain and scratch resistant melamine finish on all exterior panels | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive office back wall | Provides display and locked storage behind executive desks for documents and decor | |
|---|---|---|
| Open office reception area | Displays company materials and stores reception supplies behind lockable doors | |
| Conference room perimeter | Stores meeting materials, reference books and presentation supplies along room walls | |
| Manager private office | Offers locked file storage and display for personal books and decor | |
| Reference document storage zone | Holds standard A4/letter binders and reference books in accessible compartments |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety requirements for domestic and office storage furniture, including anti-tip provisions | |
|---|---|---|
| EN 312:2010 | Particleboard performance requirements for furniture structural use | |
| EN 12150-1:2015 | Tempered soda lime silicate safety glass specifications for door panels |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance standard for office use, covering load and durability |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel structural integrity | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, E1 grade required for indoor office use | |
| GB/T 4897.3-2003 | Particleboard specifications for furniture use, applicable for carcass and shelf panels | |
| GB 15763.2-2005 | Safety glazing materials requirements for tempered glass door panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel structural integrity; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade required for indoor office use; 3. GB/T 4897.3-2003: Particleboard specifications for furniture use, applicable for carcass and shelf panels; 4. GB 15763.2-2005: Safety glazing materials requirements for tempered glass door panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
