Name: Asymmetric Open Tall Display Shelf
Brand: XIANGSHI
SKU: E2JQUZ

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	600 × 320 × 1800 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	38 kg
Right main shelf static load per shelf	30 kg
Left accent shelf static load per shelf	10 kg
Total storage compartments	10 bays
Top surface static load	50 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer frame and vertical panels	Particleboard core with matte warm gray laminate finish
Accent shelves and top/bottom trim	Walnut-stained wood-based panel with matte veneer finish
Vertical center divider	White-edged wood-based composite panel with matching matte laminate face
Plinth base	Low-profile wood-based panel with matching gray laminate wrap
Shelf support hardware	Concealed metal shelf pins inside panel grooves
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Asymmetric dual-zone display layout	Narrow left column for small decor items and wide right column for medium display pieces
Fixed open shelving system	All 10 compartments are fully open with no doors, for unobstructed display and access
Freestanding floor placement	Stable plinth base for placement on flat finished floors without wall anchoring for normal use
Dual material tone decoration	Warm gray main body with walnut accent trim matches modern office and residential interiors

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Modern office reception or lounge area	Suitable for displaying decor items, awards or branded merchandise in public office zones
Residential living room or study nook	Compatible with modern and light-luxury home interiors for books, figurines and art display

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Safety of furniture - Storage units	Recommended references: EN 14749:2016
Furniture surface abrasion resistance	Recommended references: EN 438:2019

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Wood-based panel formaldehyde emission	Recommended references: GB 18580
Cabinet structural strength	Recommended references: GB/T 3324

Standardized tender description text

This product must meet the following technical requirements:
1. Wood-based panel formaldehyde emission: Recommended references: GB 18580;
2. Cabinet structural strength: Recommended references: GB/T 3324;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TDS-ASYM-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TDS-ASYM-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TDS-ASYM-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

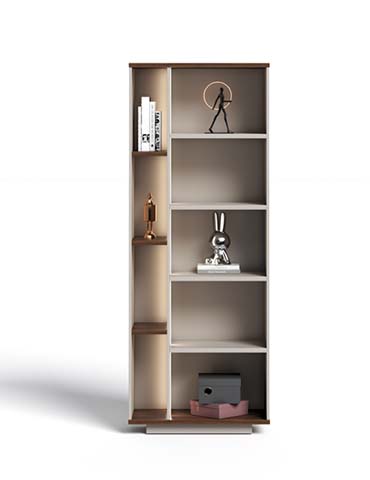

The XIANGSHI Asymmetric Open Tall Display Shelf, model TDS-ASYM-1800, belongs to the display cabinet category and presents a distinct modern aesthetic defined by its asymmetric open structure and freestanding form. Its visual layout features a dual-zone design with a narrow left column and a wide right column, creating visual interest while catering to varied display needs. The piece balances warm gray main body panels with walnut-stained accent trim, complemented by a white-edged vertical center divider for a refined, layered look that aligns with contemporary interior styles. Constructed primarily from particleboard (PB), the shelf incorporates targeted material specifications to support both durability and design. Its outer frame and vertical panels feature a particleboard core with a matte warm gray laminate finish, while accent shelves and top/bottom trim use walnut-stained wood-based panels with a matte veneer finish. The vertical center divider is a white-edged wood-based composite panel with a matching matte laminate face, and the low-profile plinth base is wrapped in matching gray laminate. Shelves are secured with concealed metal shelf pins set inside panel grooves, and all edges are finished with 2 mm edge banding. The carcass and shelves measure 25 mm thick, with a 9 mm back panel and 22 mm thickness for door or drawer front components where applicable, contributing to the unit’s structural integrity. For practical functionality, the shelf’s asymmetric dual-zone layout dedicates the narrow left section to small decorative items and the wider right section to medium-sized display pieces. Its fixed open shelving system includes 10 fully open compartments, providing unobstructed visibility and easy access to displayed items. The freestanding design, supported by a stable plinth base, allows placement on flat finished floors without wall anchoring for normal use. The dual-tone material palette enhances its decorative appeal, making it a versatile addition to various spaces. This display shelf fits seamlessly into commercial settings such as modern office receptions or lounge areas, where it can showcase decor, awards, or branded merchandise. In residential spaces, it complements modern and light-luxury living rooms or study nooks, ideal for displaying books, figurines, and art pieces. For procurement, buyers should note the shelf has a net weight of 38 kg, with a right main shelf static load of 30 kg per shelf, left accent shelf static load of 10 kg per shelf, top surface static load of 50 kg, and shelf distributed load of 30 kg per shelf. It ships as one set across multiple cartons, with a reference assembly time of 40 minutes per set, and requires flat, finished flooring for stable placement.
