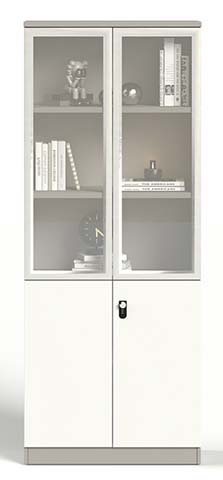

Product supplierTall Steel Storage Cabinet with Upper Glass Doors and Lower Solid Doors, Cold-rolled steel sheet with light gray powder coating and folded edges
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 900 × 400 × 1850 mm | |
|---|---|---|
| Overall cabinet size | 900 x 400 x 1850 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Unit net weight | 52 kg | |
|---|---|---|
| Per-shelf distributed static load | 35 kg | |
| Total cabinet distributed load | 175 kg | |
| Recommended number of binders | 72 standard 75 mm binders | |
| Door locking points | 3-point linkage lock | |
| Shelf adjustment pitch | 32 mm | |
| Recommended maximum loaded drawer or door force | 50 N | |
| Anti-tip restraint requirement | 2 wall anchors | |
| Warranty period | 5 years | |
| Shelf Distributed Load | 30 kg/shelf |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet body | Cold-rolled steel sheet with light gray powder coating and folded edges | |
|---|---|---|
| Upper door panels | Transparent tempered-look panels set in steel door frames | |
| Lower doors | Flat steel panels with light gray powder-coated finish and recessed border | |
| Shelves | Formed steel shelf boards with front and rear return flanges for bending stiffness | |
| Door frame | Welded or folded steel perimeter frame with central meeting stile | |
| Lock and keys | Black key-operated cylinder lock with steel linkage rods |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage organization | Upper transparent doors provide displayed filing access, while lower solid doors conceal general storage | |
|---|---|---|
| Secured access | Key lock on the lower right door locks the paired lower doors through concealed steel linkage | |
| Shelf adjustment | Upper shelf levels use slotted upright supports and can be repositioned at 32 mm intervals | |
| Door operation | Four side-hinged doors swing independently from the outer frame, with upper doors protecting visible items |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Gross weight | 58 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office filing and display | Suitable for manager offices, administrative areas, and libraries where books, awards, and binders need visible upper storage and concealed lower storage | |
|---|---|---|
| Procurement configuration | Specify as a standalone 900 mm-wide unit or place multiple units along a wall for archive and reference storage |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
