Name: Modern Asymmetrical Mixed Storage Display Bookcase
Brand: KANAITE
SKU: FJ4LW4

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1803 × 400 × 1803 mm
open shelf vertical spacing	285 mm
left tall solid door panel width	400 mm
right sliding tambour door height	1000 mm
lower fluted panel height	200 mm
enclosed lower door compartment depth	350 mm
adjustable interior shelf thickness	18 mm
carcass back panel thickness	9 mm
door panel thickness	18 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

upper open shelf uniform load capacity	20 kg
enclosed cabinet interior adjustable shelf load	14 kg
wall anchor anti-tip load rating	50 kg
hinge cycle rating for hinged doors	80000 open/close cycles
drawer/tambour slide cycle rating	50000 open/close cycles
finish scratch resistance rating	2H pencil hardness
total unit net weight	90 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

main carcass construction	P2-grade MDF board
open shelf interior surfaces	Dark smoked wood grain veneer
exterior door and frame finish	Matte light taupe lacquer
middle decorative accent panel	Terracotta colored laminate strip
upper right sliding door panel	Grey vertical wood grain laminate
lower middle decorative panel	Vertical fluted MDF with matte taupe finish
edge banding	1mm thick PVC edge band
door and sliding hardware	Zinc alloy soft-close mechanism hardware
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

tambour sliding door operation	Vertical glide to compartment rear, no outward swing clearance needed
lower hinged door access	Curved cutout handleless push-to-open, 110 degree opening angle
interior shelf adjustability	33 mm height increment adjustment for closed compartments
wall anchor safety feature	Included anti-tip strap secures unit to wall stud
open display compartment layout	Fixed asymmetric dividers create varied display bays
lower left open compartments	Fixed split shelves for media/short item storage
door alignment adjustment	3-way adjustable hinges for flush panel alignment
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

residential living room application	Wall-aligned display and media storage for books and decorative objects
home office application	Document and reference book storage adjacent to desk workspaces
modern reception area application	Decorative display for office reception or lounge zones
target user group	Residential and small commercial users seeking designer-style mixed storage
recommended placement	Fixed against load-bearing interior walls, secured with included anti-tip hardware
storage capacity suitability	Holds 120 linear standard hardcover books plus 10 large display objects

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Safety and performance requirements for domestic storage furniture and kitchen worktops
EN 12521:2015	Strength, durability and stability requirements for domestic storage furniture
EN 717-1:2004	Formaldehyde emission classification for wood-based panels, E1 class minimum

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to cabinet structural performance
GB 18580-2017	Formaldehyde emission limit for wood-based panels, minimum E1 grade required for acceptance
GB/T 4893.8-2013	Surface abrasion resistance test for furniture finishes, acceptance metric for wear performance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to cabinet structural performance;
2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, minimum E1 grade required for acceptance;
3. GB/T 4893.8-2013: Surface abrasion resistance test for furniture finishes, acceptance metric for wear performance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DC-AST-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DC-AST-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DC-AST-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

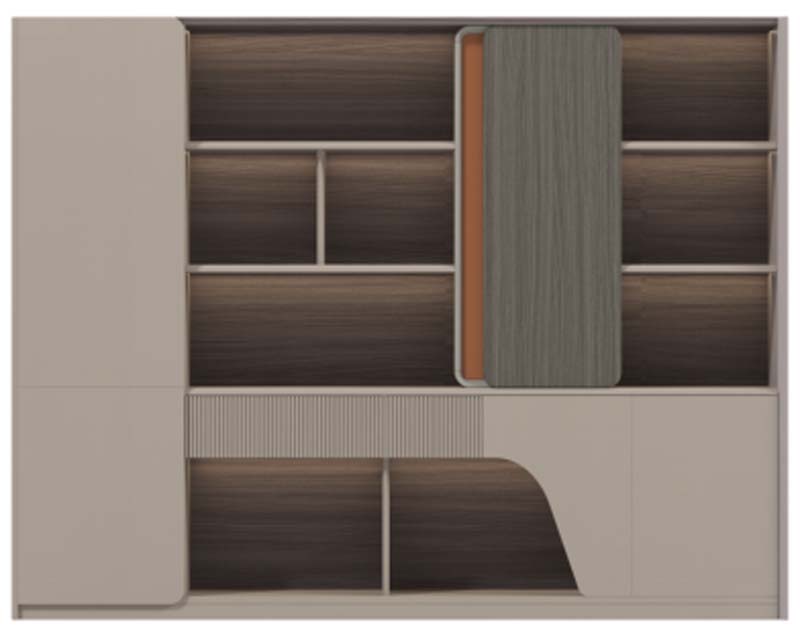

The KANAITE DC-AST-1800 Modern Asymmetrical Mixed Storage Display Bookcase is a designer-forward storage solution balancing open display and concealed storage for residential and light commercial settings. Its visual layout leans into intentional asymmetry, with fixed asymmetric dividers forming varied upper open display bays finished in dark smoked wood grain veneer, framed by matte light taupe lacquer exteriors. A thin terracotta colored laminate accent strip runs across the middle section, complemented by a vertical fluted matte taupe MDF panel at the lower middle, a 400mm wide tall solid door panel on the left, and a grey vertical wood grain laminate sliding tambour door on the upper right, creating a layered, contemporary silhouette that avoids rigid, uniform shelving conventions.
Constructed with a P2-grade MDF main carcass, the unit features a 9mm thick back panel, 18mm thick adjustable interior shelves, and 2mm thick PVC edge banding for clean, durable finished edges. Door and sliding components use zinc alloy soft-close hardware: lower hinged doors operate via curved cutout handleless push-to-open mechanisms with a 110-degree opening angle, supported by hinges rated for 80000 open/close cycles with 3-way adjustability for flush panel alignment. The upper right tambour door glides vertically to the compartment rear, requiring no outward swing clearance, with slides rated for 50000 open/close cycles. The scratch-resistant matte exterior finish holds a 2H pencil hardness rating, while the included anti-tip strap delivers a 50kg anti-tip load rating when secured to wall studs. Upper open shelves support 20kg of uniform load, and enclosed cabinet adjustable shelves hold 14kg each. Closed compartments offer shelf adjustability in 33mm height increments, with a fixed split lower left open section sized for media and shorter items, and enclosed lower compartments offering 350mm depth; the unit holds 120 linear standard hardcover books plus 10 large display objects in total.
This bookcase suits residential living rooms as wall-aligned storage for books, decor and media items, home offices for document and reference book storage adjacent to workspaces, and modern office reception or lounge zones for curated decorative display. It is designed for fixed placement against load-bearing interior walls, secured with the included anti-tip hardware. Procurement teams should note the unit ships as one set across multiple cartons, with a total packaged gross weight of 100kg and 0.65 cubic meters of packaging volume per set, requiring 40 minutes of assembly time per unit, with a total net weight of 90kg once fully constructed. The handleless, mixed open/closed design caters to users seeking elevated, functional storage without visible hardware clutter.

Modern Asymmetrical Mixed Storage Display Bookcase Specifications
