Automatic mm / inch conversion · Core engineering specifications

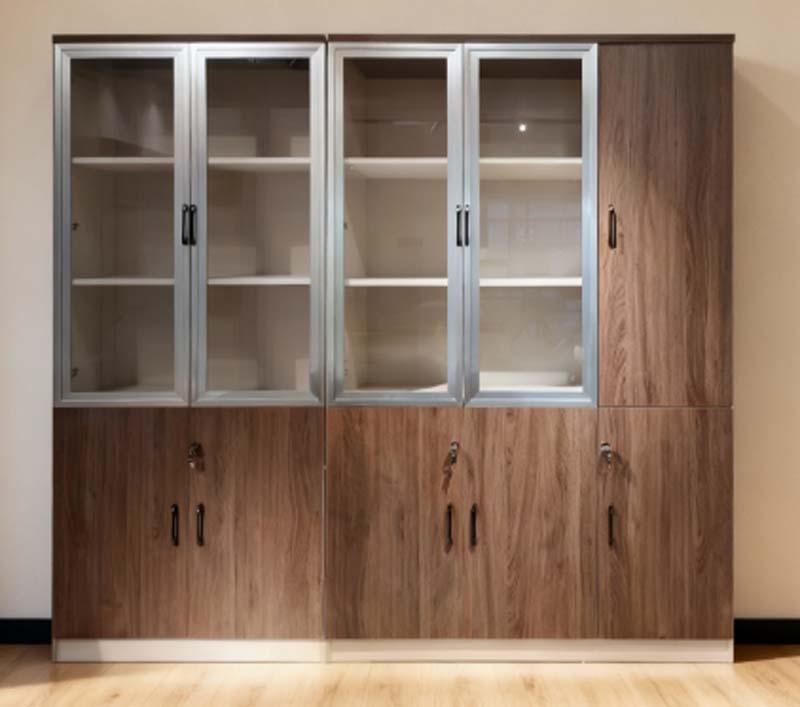

| Overall dimensions | 2000 x 400 x 2000 mm | |
|---|---|---|
| Upper glass door section height | 900 mm | |
| Lower solid door section height | 1100 mm | |
| Single glass door width | 400 mm | |
| Right upper solid door width | 400 mm | |
| Single lower solid door width | 400 mm | |
| Internal shelf depth | 360 mm | |
| Plinth base height | 80 mm | |
| Aluminum door frame profile thickness | 26 mm | |
| Upper glass door thickness | 4 mm | |
| Lower solid door panel thickness | 16 mm | |
| Carcass side panel thickness | 16 mm | |
| Internal shelf thickness | 16 mm | |
| Back panel thickness | 5 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm |
Net weight / load capacity / users / durability
| Total product net weight | 90 kg | |
|---|---|---|
| Static load capacity per internal shelf | 35 kg | |
| Key lock open/close cycle rating | 5000 cycles | |
| Door hinge cycle rating | 80000 cycles | |
| Laminate surface scratch resistance | 2000 revolutions | |
| Tempered glass impact resistance | 10 J | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
| Carcass panels | E1 grade particleboard with walnut woodgrain laminate finish | |
|---|---|---|
| Upper door frames | Silver anodized aluminum alloy with matte finish | |
| Upper door panels | 4mm thick clear tempered safety glass | |
| Lower door panels | 16mm thick MDF core with matching walnut woodgrain laminate | |
| Back panel | 5mm thick hardboard with smooth matte finish | |
| Door pull handles | 150mm long black metal vertical bar pulls | |
| Lock hardware | Zinc alloy keyed cam locks for lower compartments | |
| Door hinges | Cold-rolled steel concealed hinges with nickel plating | |
| Shelf support pins | Nickel-plated steel shelf pins for 32mm system adjustable holes | |
| Plinth base | Matching walnut woodgrain laminate panel with PVC edge banding | |
| Edge banding | 1mm thick PVC edge banding matching walnut woodgrain finish | |
| Internal shelves | 16mm thick white laminate particleboard |
Adjustment / rotation / tilt / mobility / storage features
| Upper glass door compartments | 4 hinged doors with full-length vertical pulls, opening to 105 degrees for access to open storage | |
|---|---|---|
| Lower solid door compartments | 5 hinged lockable doors with keyed cam locks, restricting unauthorized access to stored documents | |
| Adjustable internal shelves | 8 height-adjustable shelves on 32mm spaced pin holes, allowing customized compartment heights for different storage items | |
| Dust protection | Fully enclosed door seals on all compartments prevent dust accumulation on stored documents and supplies | |
| Anti-tip safety | Wall anchoring hardware included to secure cabinet to interior wall, preventing tip-over during full load use | |
| Door operation | All doors open outward via concealed hinges, no protruding hardware to snag clothing or supplies | |
| Storage zone split | Upper zone provides visible document/display storage, lower zone provides concealed secured storage for files and supplies | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Office document storage | Suitable for placement in open office areas, executive offices and administrative work zones for organized file and supply storage | |
|---|---|---|
| Background wall placement | Designed for flat alignment against interior walls as a background storage unit behind workstations or reception areas | |
| Mixed storage use | Ideal for storing frequently referenced documents in upper glass compartments and confidential files in lower locked sections | |
| Small office break rooms | Suitable for supply and tableware storage in office pantries with dust-protected enclosed compartments | |
| Government and education facilities | Durable construction and lockable storage suitable for school administrative offices and government document rooms | |
| Matching office furniture sets | Coordinates with walnut woodgrain office desks, conference tables and bookcases for uniform workspace design |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office furniture - Storage furniture - Part 2: Safety requirements, applicable to anti-tip and structural safety checks | |
|---|---|---|
| EN 14073-3:2004 | Office furniture - Storage furniture - Part 3: Test methods for stability and strength, applicable to load testing | |
| EN 12150-1:2015 | Glass in building - Thermally toughened soda lime silicate safety glass, applicable to upper door glass acceptance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage Furniture Safety and Performance Standard, applicable to commercial office storage cabinet testing | |
|---|---|---|
| ANSI/BIFMA e3-2014 | Furniture Sustainability Standard, applicable to environmental attribute verification for commercial projects |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional and structural quality inspection | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, applicable to E1 grade panel acceptance | |
| GB/T 28202-2011 | Office furniture general specifications, applicable to structural and performance testing | |
| GB/T 28204-2011 | Office storage cabinets performance test methods, applicable to load and durability testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural quality inspection; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, applicable to E1 grade panel acceptance; 3. GB/T 28202-2011: Office furniture general specifications, applicable to structural and performance testing; 4. GB/T 28204-2011: Office storage cabinets performance test methods, applicable to load and durability testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
