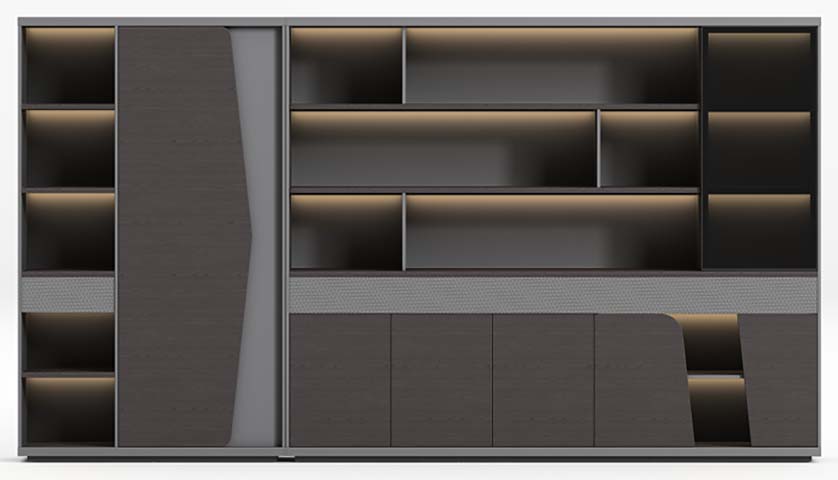

Modern Asymmetric Modular Office Bookcase with Integrated LED Lighting (model OF-BK-LED-ASY-3740) is listed under Panel-type Filing Cabinet, with overall dimensions of 3740 × 570 × 2350 mm and main material of Particle‑board (PB). Load capacity: 300 kg. Certifications: modern,styling,mixed,open/closed,storage,integrated,LED,display,lighting. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall unit dimensions | 3740 x 570 x 2350 mm | |
|---|---|---|
| Left sliding door module width | 940 mm | |
| Left narrow open shelf module width | 300 mm | |
| Right main storage module width | 2500 mm | |
| Shelf depth (open display sections) | 550 mm | |
| Upper open shelf section height | 1290 mm | |
| Lower closed cabinet section height | 880 mm | |
| Textured mid-accent panel height | 180 mm | |
| Single flat lower cabinet door width | 500 mm | |
| Vertical open shelf clearance (left column) | 320 mm | |
| Horizontal open shelf clearance (right upper) | 380 mm | |
| Angled lower right open nook height | 350 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit static load capacity | 300 kg | |
|---|---|---|
| Total unit net weight | 182 kg | |
| LED lighting rated operational lifespan | 50000 hours | |
| Door hinge cycle rating | 80000 open/close cycles | |
| Recommended evenly distributed top surface load | 50 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass construction | 18mm thick E0-grade engineered wood panel with matte laminate finish | |
|---|---|---|
| Dark wood-grain door panels | 18mm thick MDF substrate with dark oak wood grain melamine facing | |
| Grey frame and accent components | 15mm thick MDF with matte dark grey powder-coated laminate finish | |
| Back panel construction | 9mm thick hardboard with matte black finish, fitted to rear of shelf compartments | |
| LED lighting components | Recessed 24V warm-white LED strip lights installed along front edge of each open shelf | |
| Door hardware | Soft-close concealed hinges with 110-degree opening angle, full-extension slides for interior shelves |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Display lighting function | Warm-white integrated LED strips illuminate all open display shelves with diffused front-lit output | |
|---|---|---|
| Door operation | Left section vertical sliding door provides full-height concealed storage; lower hinged doors open to closed storage compartments | |
| Shelf adjustability | Closed cabinet interior shelves support 3-position height adjustment to accommodate variable storage item heights | |
| Stability safety feature | Anti-tip wall anchoring hardware is included to secure the tall unit to wall studs and prevent tip-over |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office backdrop storage | Placed behind executive desks to display decor and store office documents and supplies | |
|---|---|---|
| Corporate reception display storage | Installed in reception areas to showcase company awards, publications and branded materials |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
