OFC-STG-3200DGY-LED

Code:FTDWV1V1
Request supplier quotes

Modern Dark Gray Office Display Storage Cabinet with Integrated LED Lighting and Sliding Door Key Specifications 2026-08-04 16:26

Popularity: 1
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

OFC-STG-3200DGY-LED

1 active supplier(s) >>

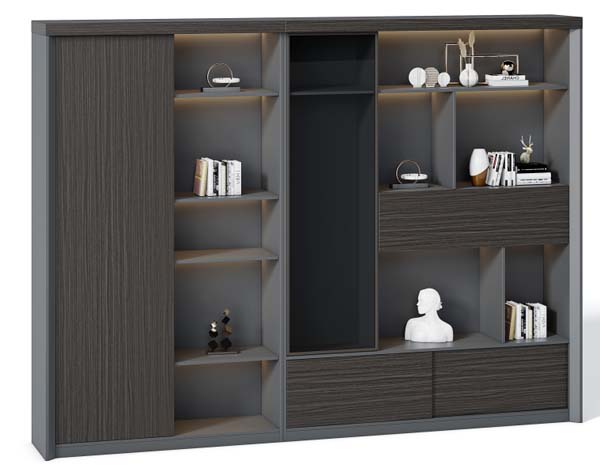

Product supplierModern Dark Gray Office Display Storage Cabinet with Integrated LED Lighting and Sliding Door,Particleboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions3200 x 400 x 2000 mm
Left sliding fluted door width800 mm
Center frosted glass door width800 mm
Right open storage bay width1600 mm
Bottom drawer panel height400 mm
Open shelf compartment height320 mm
Side frame panel thickness25 mm
Shelf panel thickness18 mm
Adjustable shelf clearance range320 mm
Center closed compartment internal depth380 mm
Base plinth height50 mm
Carcass Panel Thickness25 mm
Back Panel Thickness9 mm
Door / Drawer Front Thickness22 mm
Shelf Thickness25 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Per-shelf static load capacity30 kg
Unit net weight185 kg
LED strip operational lifespan30000 hours
Recommended maximum stored item height on open shelves300 mm
Sliding door cycle rating50000 open/close cycles
Sliding door open/close cycle rating50000 cycles
Drawer slide open/close cycle rating50000 cycles
Unit anti-tip load resistance800 N
Maximum stored item height on open shelves300 mm
Load-bearing shelf panel thickness18 mm
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Outer frame and carcass25mm thick E1 grade melamine-faced particleboard, dark gray matte finish
Left sliding door18mm MDF substrate with vertical fluted dark wood-grain melamine veneer, matte surface finish
Center cabinet door5mm thick frosted tempered glass panel set in matching dark gray frame
Lower drawer fronts18mm MDF substrate with horizontal textured dark wood-grain melamine veneer, matte finish
Adjustable shelves18mm thick E1 grade melamine-faced particleboard, matching dark gray matte finish, supported by metal shelf pins
Integrated lighting4000K neutral white recessed LED strip lights, installed under each upper shelf in open bays
Sliding door hardwareAluminum alloy top and bottom tracking rails, polymer roller glides
Drawer slidesSide-mounted full-extension cold-rolled steel drawer slides, zinc-plated finish
Edge banding1mm thick PVC edge banding, color matched to panel finish, applied to all exposed panel edges
Outer frame and carcass panels25mm thick E1 grade melamine-faced particleboard, dark gray matte finish, joined with confirmat screw fasteners
Left sliding door panel18mm MDF substrate with vertical fluted dark brown wood-grain melamine veneer, matte surface finish, mounted on aluminum track rollers
Center sliding door panel5mm thick frosted tempered glass panel set in a dark gray powder-coated aluminum frame, with soft-close polymer glides
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Sliding door access controlLeft fluted panel slides horizontally along top/bottom tracks to conceal or reveal the left open shelf bay, no outward swing required to save aisle space
Concealed center storageFrosted glass hinged/sliding door covers a full-height closed compartment for private document or item storage, obscures contents without blocking ambient light transmission
Lower drawer storageTwo equal-width horizontal drawers at the bottom right provide enclosed storage for office supplies, files or personal items, operating on full-extension slides for full interior access
Integrated display lightingRecessed LED strips under each open shelf provide focused illumination for displayed items, hardwired to a concealed wall switch for independent on/off control
Adjustable shelf positioningOpen compartment shelves support 32mm height adjustment via metal pin holes in cabinet side panels, allowing flexible clearance for taller books or decorative items
Mixed open/closed storage layoutCombines open display shelves for decor and frequently accessed items, closed doors and drawers for clutter concealment and secure storage across 3 distinct vertical bays
Modular bay alignmentUnit is designed to align with standard L-shaped executive desk widths for seamless backdrop wall installation without custom trimming
Left sliding door operationThe vertical fluted panel slides horizontally along top/bottom aluminum tracks to fully conceal or reveal the left open shelf bay, requiring 0mm outward clearance to operate for narrow aisle compatibility
Center sliding door operationThe frosted glass panel slides horizontally along matching tracks to conceal the full-height center storage compartment, obscuring stored contents while transmitting ambient light to maintain visual depth
Lower drawer operationTwo equal-width horizontal drawers at the bottom of the center-right bays operate on full-extension steel slides, allowing 100% access to internal storage space for office supplies, hanging files or personal items, with soft-close dampening to prevent slamming
Integrated shelf lightingRecessed LED strips under each open shelf provide 300 lux focused illumination at shelf level for displayed items, hardwired to a concealed wall-mountable switch for independent on/off control
Soft-close hardwareAll sliding doors and drawers include integrated soft-close dampeners that engage 50mm before full closure, pulling panels closed slowly and quietly without user force
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping packages4
Largest shipping carton dimensions2050 x 450 x 120 mm
Total shipping gross weight210 kg
Total shipping volume0.45 CBM
Assembly time on site120 minutes
40ft HQ container loading capacity36 units
Wall anchor requirementIncluded anti-tip wall anchor hardware
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive office backdropInstalled as a rear storage and display wall behind 3200 mm wide executive desks, providing both professional display for awards/decor and concealed storage for documents
Conference room storage and displayInstalled along full-length conference room walls to store meeting materials, display corporate credentials and awards, with integrated lighting to highlight branded decor and maintain a formal uncluttered appearance
Manager private officeUsed in mid-level manager offices to combine bookshelf display, supply storage and personal item concealment, with sliding door design to maintain a tidy appearance during meetings
Open office reception areaInstalled behind reception desks to display company products, awards and decorative items, with lower drawers for storing reception supplies and visitor materials
Recommended matching furniturePaired with dark gray/wood grain executive desks, leather office chairs and matching lateral file cabinets for a coordinated office furniture suite
Executive office backdrop storageInstalled as a rear storage and display wall behind 3200 mm wide executive desks, providing illuminated display for awards and corporate decor plus concealed storage for confidential documents and office supplies
Mid-level manager private officeUsed in 25sqm private manager offices to combine bookshelf display for reference materials, supply storage and personal item concealment, with sliding door design to quickly hide clutter during impromptu meetings
Open office reception displayInstalled behind reception desks to display company products, awards and decorative items, with lower drawers for storing reception supplies, visitor forms and branded collateral
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 14749:2016Safety and structural performance requirements for domestic and office storage units, applicable for verifying stability, load capacity and hardware durability
EN 312:2010Performance requirements for particleboard used in furniture, applicable for validating panel structural performance for load-bearing components
EN 62471:2008Photobiological safety for LED lighting products, applicable for verifying eye safety of integrated shelf LED strips
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017General technical requirements for wooden furniture, applicable for dimensional tolerance, surface finish quality and structural stability verification of this cabinet
GB 18580-2017Applicable standards and test results require confirmation
GB/T 4897.3-2015Performance requirements for particleboard used in furniture, applicable for verifying shelf and frame panel structural load capacity
GB 7000.204-2008Safety requirements for built-in cabinet lighting, applicable for verifying integrated LED strip electrical safety for indoor use
GB/T 10357.5-2011Test of furniture mechanical properties - Part 5: Storage units, applicable for verifying load capacity, stability and hardware durability of the cabinet structure
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional tolerance, surface finish quality and structural stability verification of this cabinet;
2. GB 18580-2017: Applicable standards and test results require confirmation;
3. GB/T 4897.3-2015: Performance requirements for particleboard used in furniture, applicable for verifying shelf and frame panel structural load capacity;
4. GB 7000.204-2008: Safety requirements for built-in cabinet lighting, applicable for verifying integrated LED strip electrical safety for indoor use;
5. GB/T 10357.5-2011: Test of furniture mechanical properties - Part 5: Storage units, applicable for verifying load capacity, stability and hardware durability of the cabinet structure;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-STG-3200DGY-LED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-STG-3200DGY-LED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-STG-3200DGY-LEDOpen Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

This modern dark gray office display and storage cabinet features a balanced three-bay vertical layout designed for seamless backdrop installation, with a mixed visual palette that combines smooth matte dark gray panels, a vertically fluted dark wood-grain sliding door on the left, a center frosted glass sliding door set in a matching dark aluminum frame, and horizontally textured dark wood-grain drawer fronts on the lower right. A raised 50mm base plinth lifts the unit off the floor to avoid moisture contact, while integrated recessed neutral white LED strips sit beneath each open shelf to cast focused, even light across displayed items. All exposed panel edges are finished with color-matched PVC edge banding for a clean, cohesive appearance. The cabinet is constructed with heavy-duty 25mm thick melamine-faced engineered wood for the outer carcass and frame, 25mm thick load-bearing shelves supported by metal pins, and 9mm back paneling. The left and center sliding doors operate on durable aluminum alloy top and bottom tracks with polymer roller glides, while the two full-width lower center-right drawers run on zinc-plated cold-rolled steel full-extension slides. All doors and drawers are fitted with soft-close dampeners to prevent slamming and reduce operational noise. The frosted glass center door obscures stored contents while allowing ambient light transmission to preserve visual depth in a space. Functionally, the unit combines open adjustable display shelving, concealed closed storage, and drawer space to suit varied storage needs. The left fluted sliding door requires zero outward clearance to operate, making it ideal for narrow aisle layouts, and glides fully open or closed to conceal or reveal the left open bay. The center bay offers full-height concealed storage for items that benefit from visual privacy, while the right open bay includes adjustable shelves that can be repositioned in set increments to accommodate items of varying heights, with uniform open shelf clearance suited for books, awards, and decorative pieces. The two lower drawers provide full interior access for office supplies, files, or personal items, and the integrated LED lighting operates via a concealed wall switch for independent control. This cabinet is well suited for a range of commercial and residential work-oriented spaces: it serves as a coordinated backdrop wall behind executive desks, provides formal storage and branded display for conference rooms, supports mixed storage needs in private manager offices, and creates a polished display surface behind open office reception desks. It can be paired with dark gray or wood-grain office desks, leather seating, and matching lateral file cabinets for a cohesive contemporary design scheme. For procurement, note that the unit ships flat-packed and requires on-site assembly; included anti-tip wall anchors must be installed to meet stability requirements, as the unit’s substantial weight and height create tip risks if unsecured. Buyers should confirm formaldehyde emission grades, glass safety certifications, hardware load ratings, and LED specifications directly with suppliers, as these material and performance details are not independently verified for this unbranded model.
