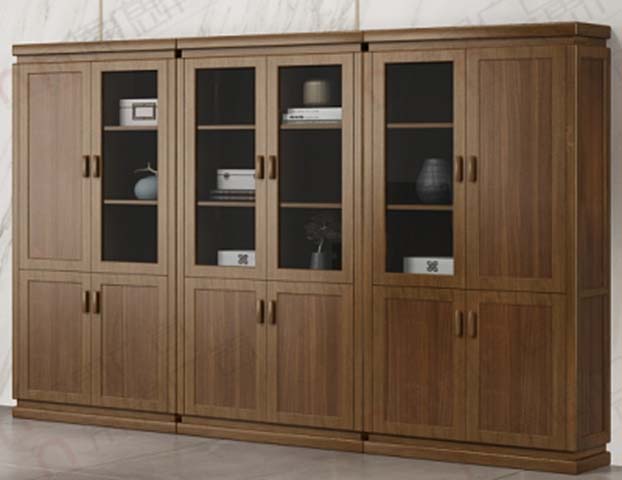

Name: Walnut Veneer 3-Section Combination Display Storage Bookcase
Brand: GUANGLI
SKU: FY23B6

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2700 × 420 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total unit assembly weight	195 kg
Per-shelf static load capacity	30 kg
Lower cabinet total static load	80 kg
Standard color finish count	1
Recommended user capacity	30 people
Surface abrasion resistance rating	2000 cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main cabinet panels	18mm thick particleboard core with walnut wood veneer finish
Tempered glass door panels	5mm thick clear tempered safety glass
Door handles	Zinc alloy with bronze brushed finish
Interior shelves	18mm thick engineered wood with matching walnut edge banding
Back panel	9mm thick hardboard with dark matte finish
Plinth base	25mm thick solid wood composite with walnut veneer
Door hinges	Concealed soft-close steel hinges
Shelf supports	Nickel-plated steel shelf pegs
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Upper display storage	Mixed glazed and solid wood doors with 3 adjustable shelves per section for open display and concealed items
Lower concealed storage	Double solid wood doors per section with 1 fixed storage level for archived documents and office supplies
Shelf height adjustment	50mm increment adjustable shelf positions via metal peg holes for flexible item storage
Door soft-close operation	Concealed hinges provide controlled, quiet door closing to prevent slamming
Modular section alignment	Three independent cabinet sections connect with integrated joining hardware for seamless built-in appearance
Plinth floor clearance	10mm gap below plinth for floor leveling adjustment to suit uneven commercial flooring
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office storage	Placed behind executive desks for document storage, book display and decorative items placement
Open-plan office team storage	Installed along partition walls for shared departmental document and supply storage
Conference room reference storage	Positioned against meeting room walls for reference materials, awards and presentation supply storage
Private study home office use	Used as large-format home library bookcase for personal collections and office document storage
Reception area display storage	Installed in corporate reception zones for company publications, decorative objects and branded material display

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Applicable standard for office storage furniture safety and strength requirements
EN 14749:2016	Applicable standard for domestic and kitchen storage units worktop and structural safety

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Applicable standard for office storage units structural durability and load performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable standard for wooden office furniture general technical requirements, for dimensional and structural quality acceptance
GB/T 4897-2015	Applicable standard for particleboard core material performance requirements for cabinet panels
GB 15763.2-2005	Applicable standard for tempered safety glass used in glazed door components
GB 18580-2017	Applicable standard for formaldehyde emission limits for wood-based panel materials

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable standard for wooden office furniture general technical requirements, for dimensional and structural quality acceptance;
2. GB/T 4897-2015: Applicable standard for particleboard core material performance requirements for cabinet panels;
3. GB 15763.2-2005: Applicable standard for tempered safety glass used in glazed door components;
4. GB 18580-2017: Applicable standard for formaldehyde emission limits for wood-based panel materials;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BC-3SEC-WAL-GL02

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BC-3SEC-WAL-GL02

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BC-3SEC-WAL-GL02Open Export Tool

Quick Actions

Post an RFQ

Product Description

The GUANGLI Walnut Veneer 3-Section Combination Display Storage Bookcase, model BC-3SEC-WAL-GL02, is a freestanding modular office storage solution designed with a balanced traditional aesthetic that blends open display and concealed storage functionality. Its three independent cabinet sections connect via integrated joining hardware to create a seamless built-in appearance, with a split layout pairing upper mixed glazing and solid panels with lower fully enclosed cabinetry. The warm walnut finish is complemented by bronze brushed zinc alloy handles and clear tempered glass door panels, delivering a polished, cohesive visual presence suitable for professional and residential environments alike. Constructed with durable, purpose-built materials, the bookcase features an 18mm thick particleboard core finished with walnut veneer for main cabinet panels, paired with a 9mm dark matte hardboard back panel and a 25mm thick solid wood composite plinth base with matching walnut veneer. Upper door sections combine solid panels with 5mm clear tempered safety glass, fitted with concealed soft-close steel hinges that enable controlled, quiet closing to prevent slamming. Interior shelves are made of 18mm engineered wood with 2mm matching walnut edge banding, supported by nickel-plated steel pegs. All structural panels carry consistent thickness dimensions for long-term stability, with shelf heights adjustable in 50mm increments through pre-drilled metal peg holes to accommodate items of varying sizes. Functional design supports both display and secure storage needs: each upper section holds three adjustable shelves, supporting open presentation of decor or reference materials behind glass doors alongside concealed storage for personal items, while each lower section includes double solid wood doors with one fixed storage level for archived documents and office supplies. A 10mm gap below the plinth allows for floor leveling adjustment to suit uneven flooring, and units can be fitted with an 80mm diameter opening for cable routing or ventilation as needed. Each shelf supports a static distributed load of 30kg, with the lower cabinet rated for a total static load of 80kg, and the assembled unit is recommended to serve up to 30 users. This bookcase is well suited for placement behind executive desks to hold documents, books and decorative pieces, along partition walls in open-plan offices for shared departmental storage, against meeting room walls for reference materials and awards, in corporate reception areas to display company publications and branded items, or in private home studies as a large-format library bookcase for personal collections and home office supplies. Procurement teams should note that each set is packaged across cartons for transport, with a reference assembly time of 40 minutes per unit. The product is offered in one standard walnut color finish, with a surface abrasion resistance rating suited for regular office use, and buyers should plan for appropriate weight handling during delivery and installation given the fully assembled unit weight.
