PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 400 × 2200 mm
Overall cabinet size	2400 x 400 x 2200 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Indicative cabinet net weight	185 kg
Static top load	60 kg
Open shelf distributed load	25 kg per shelf level
Lower cabinet shelf distributed load	35 kg per shelf
Door hinge side load	15 kg per door
Storage volume	1.48 m3
A4 binder capacity	120 standard binders
Anti-tip wall restraint requirement	2 restraint points
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass and horizontal shelves	18 mm wood-based board with matte greige laminate surface and matching 2 mm edge banding
Lower doors	Three framed-look slab doors in light greige matte laminate, fitted on concealed hinges
Tall right door	Full-height warm oak grain wood-veneer or melamine slab door with vertical grain
Vertical accent compartments	Two 180 mm open display compartments with oak-grain frame faces and greige interiors
Back panel	9 mm board or hardboard back in a neutral greige finish recessed behind shelves
Hardware and fasteners	Concealed hinges, connecting screws, shelf supports, and two wall-anchor brackets recommended

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mixed storage layout	Three upper open rows provide display access, while four doors conceal lower and tall storage zones
Door operation	Four vertical hinged doors swing independently; three cover lower storage and one covers the full-height right bay
Shelf organization	Five vertical display columns and three horizontal open levels separate books, decor, and frequently used materials
Stability installation	Secure the top rear rail to a load-bearing wall with 2 brackets before loading high shelves

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

20 GP container loading	26 sets
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office and library storage wall	Suitable for manager offices, open offices, or resource rooms needing binders, display objects, and concealed storage
Hospitality and education back-of-house	Fits breakout areas, staff rooms, and academy storage where books, samples, and operational materials must be organized

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16121 non-domestic storage safety	Use EN 16121 requirements for strength, durability, stability, and shelf loading in office applications
EN 14749 domestic storage safety	Reference EN 14749 where the cabinet is specified for hospitality, educational, or residential-style storage
EN 13986 wood-based panels	Require panel performance and declared formaldehyde class documentation under EN 13986

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional and structural fit	Apply GB/T 3324 general technical requirements for wooden furniture dimensions, workmanship, and stability inspection
GB/T 10357.5 storage furniture strength	Applicable standards and test results require confirmation
GB 18580 formaldehyde control	Require board-product formaldehyde emission documentation meeting GB 18580 for indoor use

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional and structural fit: Apply GB/T 3324 general technical requirements for wooden furniture dimensions, workmanship, and stability inspection;
2. GB/T 10357.5 storage furniture strength: Applicable standards and test results require confirmation;
3. GB 18580 formaldehyde control: Require board-product formaldehyde emission documentation meeting GB 18580 for indoor use;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ST-MIX-2400-400-2200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ST-MIX-2400-400-2200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ST-MIX-2400-400-2200Open Export Tool

Quick Actions

Post an RFQ

Product Description

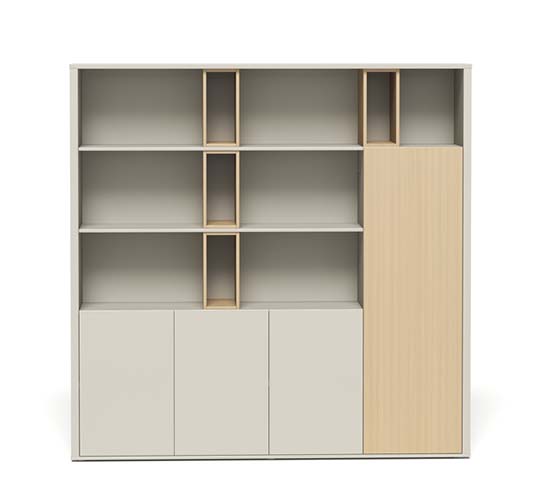

The Mixed Open and Door Storage Cabinet with Display Shelving is a freestanding, two-tone storage wall designed to balance accessible display with concealed storage. Its front elevation combines three upper open rows, five vertical display columns, and four independently swinging hinged doors: three framed-look slab doors cover the lower storage zone, while one full-height slab door closes the tall right-hand bay. Two narrow vertical open compartments add dedicated display space and reinforce the cabinet’s structured, linear appearance. The overall form is broad and tall, with a shallow depth that supports placement against a wall while providing generous organizational capacity. Visually, the cabinet uses a light greige matte finish across the main panels and lower doors, contrasted by warm oak-grain accents on the full-height right door and the faces of the vertical display compartments. Open-shelf interiors are finished in greige, allowing books, decorative objects, and frequently used materials to stand out against a neutral background. The board construction remains visible in the shelf and divider arrangement, giving the piece a clean furniture-system character suitable for coordinated interiors. The cabinet is built from wood-based panels with laminate surfaces and matching edge banding. The carcass and horizontal shelves use 18 mm board, while the specified construction details list 25 mm carcass panels and 25 mm shelves. The back panel is 9 mm board or hardboard in a neutral greige finish, recessed behind the shelving. Lower doors are 22 mm light greige matte laminate slab doors with a framed look, fitted with concealed hinges. The tall right door presents a vertical warm oak grain in wood veneer or melamine. Hardware includes concealed hinges, connecting screws, shelf supports, and two wall-anchor brackets. Functionally, the mixed layout supports both open retrieval and hidden storage. The open levels are suited to books, decor, current reference material, and presentation pieces, while the lower and tall door-side bays conceal less frequently used items. Rated storage capacity includes a static top load of 60 kg, 25 kg distributed load per open shelf level, 35 kg distributed load per lower cabinet shelf, and 15 kg hinge-side load per door. The cabinet offers 1.48 cubic meters of storage volume and can accommodate 120 standard A4 binders. Before loading high shelves, the top rear rail should be secured to a load-bearing wall using two brackets. This model is appropriate for manager offices, open offices, library-style resource rooms, breakout areas, staff rooms, academy settings, and hospitality or education back-of-house spaces. It is especially useful where a single furniture run must handle binders, books, samples, operational materials, and display objects. Procurement teams should note that this is an unbranded cabinet, model ST-MIX-2400-2200, supplied as a set for assembly. Packaging documentation references two cartons per set, with logistics information also recording packaged sets in three cartons; pack details should therefore be confirmed at order placement. The reference assembly time is 40 minutes per set. A 20 GP container can hold 26 sets.

Mixed Open and Door Storage Cabinet with Display Shelving Specifications
