Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 1200 x 400 x 2000 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Uniform shelf static load capacity | 30 kg | |
|---|---|---|
| Unit net weight | 85 kg | |
| Integrated LED strip power per shelf | 8 W | |
| Lock security rating | Level 1 | |
| Hinge cycle durability | 80000 open/close cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery

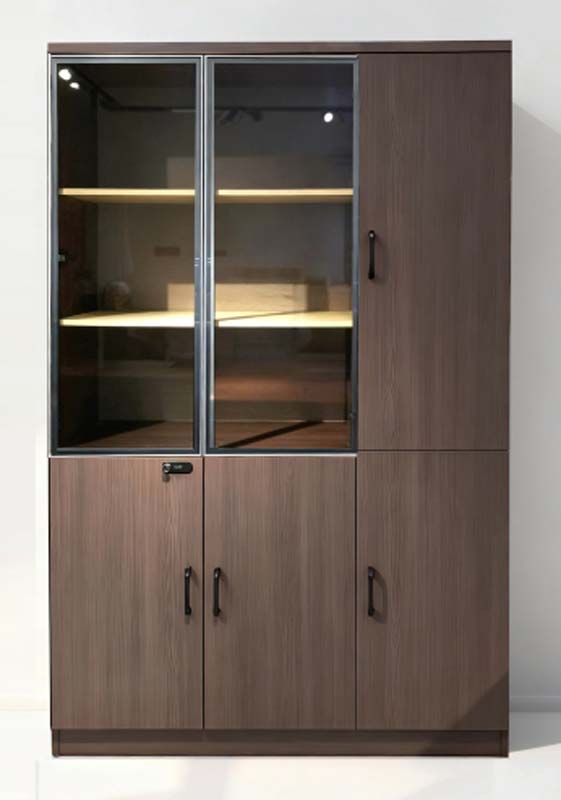

| Cabinet carcass | 18mm melamine laminated particleboard, walnut woodgrain finish | |
|---|---|---|
| Upper door panels | 5mm clear tempered glass with dark gunmetal aluminum alloy frames | |
| Door handles | Zinc alloy matte black bar pulls, 120mm length | |
| Upper shelf surfaces | 18mm melamine laminated particleboard with warm white LED light strips mounted to front edge | |
| Lower compartment lock | Zinc alloy keyed cam lock, fitted to left lower door | |
| Door hinges | Cold-rolled steel soft-close concealed hinges, 35mm cup diameter | |
| Plinth base | 18mm melamine laminated particleboard, matching cabinet woodgrain finish | |
| Door edge banding | 2mm thick PVC edge banding, matched to woodgrain finish | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Upper display compartment access | Two hinged swing glass doors open to access illuminated display shelves, 110° opening angle | |
|---|---|---|
| Lower lockable storage access | Two hinged swing solid doors secured by keyed cam lock, 110° opening angle, lock secures both lower left doors | |
| Right side storage access | Two vertically stacked hinged solid doors open independently for full-height enclosed storage, 110° opening angle | |
| Display lighting | Warm white integrated LED strips mounted to front edge of each upper shelf, operated by hidden touch switch on cabinet interior | |
| Shelf adjustability | Two upper shelves and two lower shelves support 50mm incremental height adjustment via metal shelf pins | |
| Soft-close door operation | Concealed hinges provide damped closing to prevent slamming and reduce operational noise | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive office space | Suitable for placement behind executive desks to store documents and display award/collectible items | |
|---|---|---|
| Open office work area | Provides centralized lockable storage for team documents with upper section for shared reference materials | |
| Conference room perimeter | Used to store meeting supplies, presentation materials and display corporate credentials | |
| Small business reception area | Can hold product samples, corporate brochures and office supplies behind solid doors | |
| Home office study | Serves as combined bookcase and file storage for professional home workspaces |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Domestic and kitchen storage units and worktops, applicable for structural stability and safety performance | |
|---|---|---|
| EN 12521:2015 | Furniture for non-domestic use, strength, durability and safety requirements for storage units |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel dimensional stability and finish quality inspection | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for core board physical performance verification | |
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture, applicable for formaldehyde emission testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel dimensional stability and finish quality inspection; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable for core board physical performance verification; 3. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture, applicable for formaldehyde emission testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
