Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

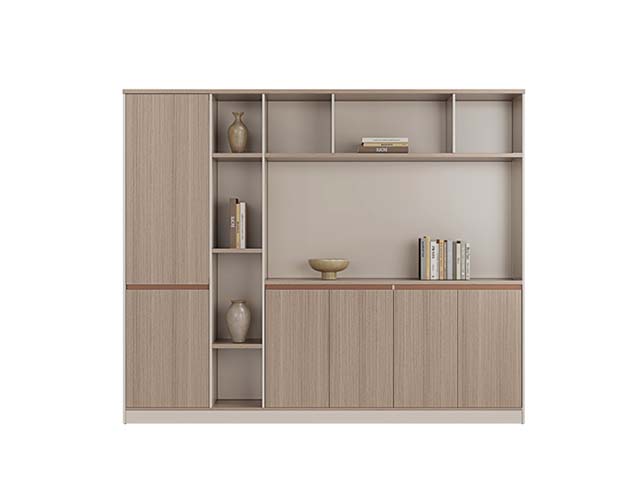

| overall dimensions | 2400 x 400 x 2000 mm | |
|---|---|---|
| left enclosed cabinet width | 600 mm | |
| left open shelf column width | 300 mm | |
| right main section width | 1500 mm | |
| lower cabinet door height | 720 mm | |
| central large open recess height | 560 mm | |
| upper open shelf tier height | 320 mm | |
| shelf depth | 350 mm | |
| plinth base height | 50 mm | |
| horizontal accent trim thickness | 20 mm | |
| individual lower right door width | 375 mm | |
| upper shelf compartment width (rightmost) | 300 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| unit assembled weight | 105 kg | |
|---|---|---|
| per shelf static load capacity | 8 kg | |
| door hinge open angle | 110 degrees | |
| hinge cycle durability | 80000 open/close cycles | |
| drawer slide load rating (if fitted) | 25 kg | |
| surface abrasion resistance | 2000 cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| carcass panels | 18 mm thick E1-grade engineered particleboard | |
|---|---|---|
| door panels | 18 mm thick vertical wood-grain melamine faced MDF | |
| back panels | 5 mm thick hardboard with matte light neutral finish | |
| accent trim | 20 mm thick taupe thermofoil wrapped engineered wood | |
| shelf panels | 25 mm thick melamine faced particleboard with PVC edge banding | |
| hardware | Zinc-plated steel concealed hinges, shelf pins and wall anti-tip brackets |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| storage configuration | 6 hinged enclosed doors plus 8 tiered open display shelves | |
|---|---|---|
| shelf adjustability | Adjustable shelves in enclosed cabinets via metal pin holes | |
| stability system | Included wall-mounted anti-tip restraint kit | |
| floor leveling | Adjustable plastic leveling feet under plinth base |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| executive office back-wall storage | Fits behind management desks to display decor and store files/documents | |
|---|---|---|
| conference room display storage | Holds presentation materials, books and decorative items along room perimeters |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and office storage furniture | |
|---|---|---|
| EN 312:2010 | Particleboard specifications, applicable to structural panel performance | |
| EN 13986:2004+A1:2015 | Wood-based panels for construction and furniture use |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Performance standard for office storage units, applicable to load and durability testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural and dimensional inspection | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to material acceptance | |
| GB/T 4897.3-2015 | Particleboard for furniture use, applicable to carcass panel quality verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural and dimensional inspection; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to material acceptance; 3. GB/T 4897.3-2015: Particleboard for furniture use, applicable to carcass panel quality verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
