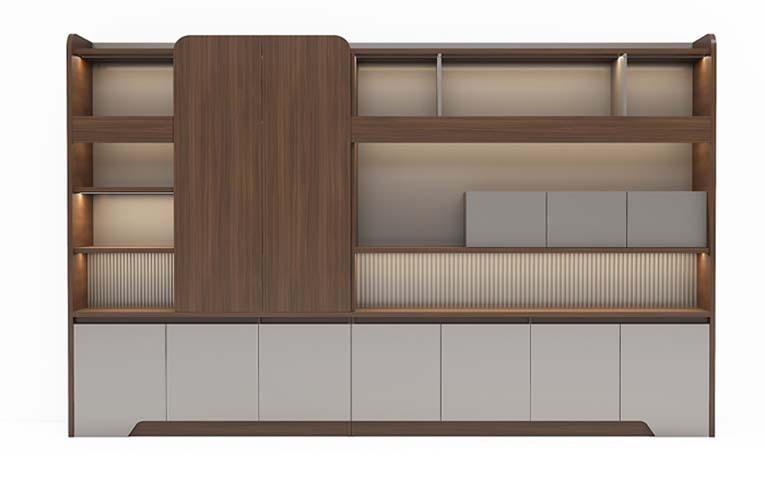

Walnut and Light Gray Full-Wall Office Display Storage Cabinet with Integrated LED Lighting (model DISPCAB-WAL-3600) is listed under Panel-type Filing Cabinet, with overall dimensions of 3600 × 400 × 2200 mm and main material of Particle‑board (PB). Load capacity: 30 kg. Certifications: Mixed,material,construction,Open,and,closed,storage,Integrated,lighting,Floor-standing,installation. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 3600 x 400 x 2200 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per open shelf static load capacity | 30 kg | |
|---|---|---|
| LED strip operating lifespan | 30000 hours | |
| Product net weight reference | 280 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Structural cabinet carcass | 18mm thick E1 grade particleboard | |
|---|---|---|
| Central door panels | Walnut wood grain veneer over MDF substrate | |
| Lower cabinet doors | Light gray matte PET laminate | |
| Decorative fluted panels | Vertically grooved MDF with light beige finish | |
| Integrated lighting | 24V DC warm white LED strip lights | |
| Hardware components | Soft-close concealed cabinet hinges |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage layout | Mixed open display shelves and closed concealed storage | |
|---|---|---|
| Lighting feature | Integrated recessed LED accent lighting | |
| Door operation | Soft-close hinged doors for all closed compartments | |
| Installation type | Knock-down floor-standing assembly |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office back wall | Serves as document storage and award/display unit behind executive desks | |
|---|---|---|
| Corporate reception area | Displays company credentials, products and decorative items with ambient lighting |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and performance requirements for domestic and kitchen storage furniture, applicable for stability checks | |
|---|---|---|
| EN 13986:2004+A1:2015 | Wood-based panels for structural use, applicable for panel material compliance |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish quality acceptance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor air quality compliance | |
| GB/T 10357.5-2011 | Furniture mechanical performance test for storage units, applicable for load capacity verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality acceptance; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor air quality compliance; 3. GB/T 10357.5-2011: Furniture mechanical performance test for storage units, applicable for load capacity verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
