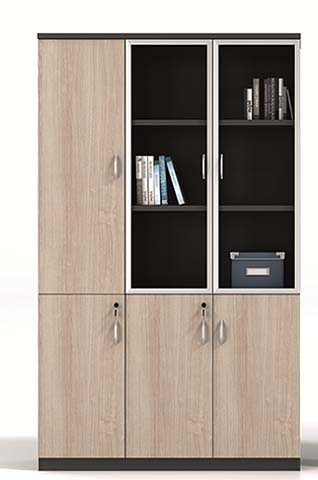

3-Column Lockable Light Oak Office Storage Cabinet with Upper Glass Doors (model OFC-STG-3CGL-2000) is listed under Panel-type Filing Cabinet, with overall dimensions of 1200 × 400 × 2000 mm and main material of Particle‑board (PB). Load capacity: 25 kg. Certifications: light,oak,finish,contrasting,black,trim,lockable,lower,doors,glass,display,freestanding,tall,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1200 x 400 x 2000 mm | |
|---|---|---|
| Solid upper left door width | 400 mm | |
| Single glass upper door width | 400 mm | |
| Single lower solid door width | 400 mm | |
| Upper door section height | 1300 mm | |
| Lower door section height | 700 mm | |
| Glass door frame trim width | 20 mm | |
| Top and bottom contrasting trim thickness | 30 mm | |
| Adjustable shelf count in glass sections | 5 | |
| Shelf clearance between upper shelves | 320 mm | |
| Lower compartment internal depth | 380 mm | |
| Metal pull handle length | 120 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Unit gross weight | 90 kg | |
|---|---|---|
| Single adjustable shelf static load capacity | 25 kg | |
| Lower compartment total static load | 120 kg | |
| Storage capacity for A4 folders | 90 | |
| Recommended maximum number of stored books per shelf | 25 | |
| Hinge open-close cycle rating | 50000 | |
| Key lock operational cycle rating | 10000 | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass panels | 18 mm thick engineered wood board with light oak melamine laminate finish | |
|---|---|---|
| Upper glass doors | 5 mm thick clear tempered glass set in silver aluminum frames | |
| Lower solid doors | 18 mm thick engineered wood with matching light oak laminate | |
| Interior backing | 3 mm thick black hardboard backing | |
| Internal shelves | 18 mm thick black engineered wood board | |
| Hardware | Brushed silver zinc alloy bar pulls and keyed cam locks |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Door locking system | Two lower solid doors fitted with keyed cam locks to secure confidential documents | |
|---|---|---|
| Shelf adjustability | Upper glass section shelves adjust on 32 mm pitch support holes to accommodate varying item heights | |
| Door operation | All doors open outward via bar pulls with 110-degree hinge clearance for full interior access | |
| Anti-tip safety | Two wall-mounted anti-tip brackets included to prevent forward tipping when loaded |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office backdrop | Suitable for placement behind executive desks to store documents and display awards | |
|---|---|---|
| Open office storage zone | Suitable for shared office storage areas to organize A4 files, books, and office supplies |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Applicable for safety and strength requirements of office storage furniture | |
|---|---|---|
| EN 14749:2016 | Applicable for safety and test methods for kitchen and office storage units |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Applicable for performance testing of office storage furniture | |
|---|---|---|
| ANSI/BIFMA X5.1-2017 | Applicable for general safety and durability requirements for office furniture |
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable for general technical requirements of wooden furniture for office use | |
|---|---|---|
| GB/T 4897.3-2003 | Applicable for particleboard used in furniture structural components | |
| GB/T 15102-2017 | Applicable for melamine laminated boards used on panel surfaces | |
| GB 28007-2011 | Applicable for stability and anti-tip requirements of children’s and adult tall furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable for general technical requirements of wooden furniture for office use; 2. GB/T 4897.3-2003: Applicable for particleboard used in furniture structural components; 3. GB/T 15102-2017: Applicable for melamine laminated boards used on panel surfaces; 4. GB 28007-2011: Applicable for stability and anti-tip requirements of children’s and adult tall furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
