PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 400 × 2200 mm
Overall unit dimensions	2400 x 400 x 2200 mm
Open cubby zone height	1350 mm
Lower closed cabinet height	850 mm
Single open cubby internal dimensions	380 x 350 x 350 mm
Full-height right door dimensions	400 x 2200 mm
Recessed toe kick height	100 mm
Horizontal divider trim width	2000 mm
Vertical cubby divider thickness	18 mm
Lower cabinet door panel thickness	18.5 mm
Open shelf tier internal spacing	350 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Individual open shelf static load capacity	25 kg
Unit net weight reference	165 kg
Formaldehyde emission level	0.03 mg/m³
Panel static bending strength	15 MPa
Hinge cycle rating	80000 open-close cycles
Surface scratch resistance	2000 cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Structural cabinet carcass	18.5mm E0 grade engineered particle board
Open cubby backing panels	8mm thick MDF with light beige matte finish
Cabinet door panels	18.5mm engineered wood with dark walnut wood grain veneer/melamine finish
Cubby vertical dividers	18mm thick metal-look engineered wood trim
Edge banding	2mm thick PVC edge banding on all exposed panel edges
Door hinges	Cold-rolled steel with anti-corrosion coating
Internal cabinet shelves	18.5mm thick adjustable engineered wood panels
Toe kick panel	18mm thick engineered wood with matching light beige finish
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Open cubby storage	15 asymmetrical grid compartments for book display and decorative object placement
Closed lower cabinet storage	5 hinged solid doors concealing adjustable internal shelves for concealed file and supply storage
Full-height right door storage	Single full-height hinged door providing tall enclosed storage for oversized items
Door opening mechanism	Concealed 110-degree opening hinges allowing full access to internal storage
Adjustable shelf positions	50mm spacing punch holes for internal shelf height adjustment in closed cabinets
Anti-tip safety	2 wall-mounted anti-tip connectors securing unit to wall for seismic and tip-over safety
Surface maintenance	Stain-resistant smooth finish allowing wipe cleaning with standard office cleaning agents
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping packages	4
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office back wall	Positioned behind executive desk to provide display and file storage for private offices
Open office reception area	Used as background storage for reception zones to display decor and store office supplies
Conference room perimeter	Installed along conference room walls to store meeting materials and display company artifacts
Management department workspace	Suitable for director/manager offices requiring both open display and concealed document storage
Commercial study space	Used in corporate training rooms or executive lounges for book and reference material storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 312:2010	Particle board specifications, performance requirements for load-bearing furniture panels
EN 14749:2016	Domestic and kitchen storage units and worktops, safety and structural strength requirements
EN 13986:2004+A1:2015	Wood-based panels for construction, formaldehyde emission class E1 requirement for indoor use

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB 18580-2017	Indoor decoration material formaldehyde emission limit for wood-based panels, E0 grade requirement
GB/T 3324-2017	General technical requirements for wooden furniture, dimensional stability and structural performance
GB/T 4897.3-2015	Particle board for furniture use, physical and mechanical performance requirements for structural panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB 18580-2017: Indoor decoration material formaldehyde emission limit for wood-based panels, E0 grade requirement;
2. GB/T 3324-2017: General technical requirements for wooden furniture, dimensional stability and structural performance;
3. GB/T 4897.3-2015: Particle board for furniture use, physical and mechanical performance requirements for structural panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-CAB-2400-400-2200-WNT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-CAB-2400-400-2200-WNT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-CAB-2400-400-2200-WNTOpen Export Tool

Quick Actions

Post an RFQ

Product Description

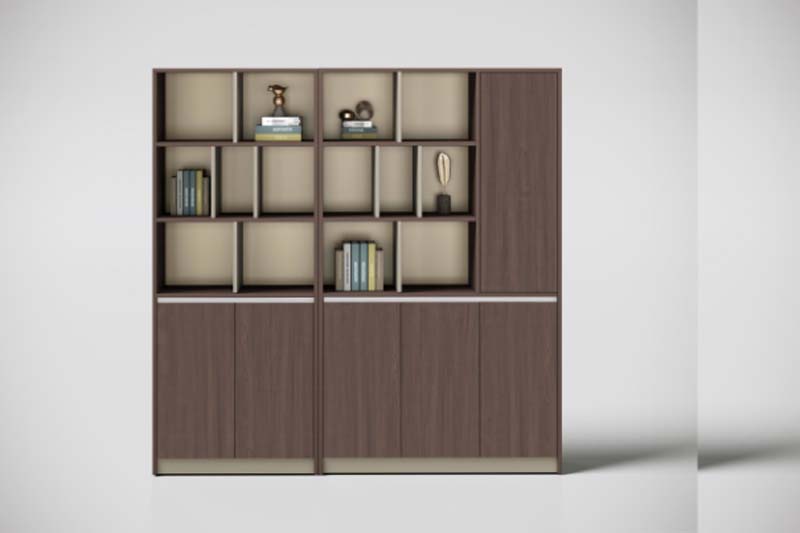

The Two-Tone Full-Height Office Storage Bookcase Cabinet with Open Cubbies and Closed Doors is a versatile unbranded office storage solution designed to balance display functionality and concealed storage for professional work environments. Its model number is OFC-CAB-2400-2200-WNT, with overall dimensions of 2400 x 400 x 2200 mm, structured with a 1350 mm tall open cubby zone, an 850 mm tall lower closed cabinet section, and a 100 mm recessed toe kick at the base. The right side features a single full-height hinged door measuring 400 x 2200 mm, paired with 2000 mm wide horizontal divider trim and 18 mm thick vertical cubby dividers that frame an asymmetrical grid of 15 open compartments, each with internal dimensions of 380 x 350 x 350 mm, backed by light beige matte panels that contrast the rich dark walnut grain finish of the main cabinet surfaces. Constructed for long-term commercial use, the cabinet’s structural carcass is built from 18.5mm E0 grade engineered particle board, with 8mm MDF open cubby backing, 18.5mm dark walnut grain finished door panels, and 2mm thick PVC edge banding on all exposed panel edges. Corrosion-resistant cold-rolled steel hinges support door operation, rated for 80000 open-close cycles with a 110-degree opening angle for unobstructed access. 18.5mm thick adjustable internal shelves fit into 50mm spaced punch holes to adapt to stored item heights, with 2mm matching light beige toe kick panels and metal-look engineered wood trim completing the build. Performance specifications include a 25 kg static load capacity per open shelf, 30 kg distributed load per internal cabinet shelf, panel static bending strength of 15 MPa, surface scratch resistance rated for 2000 cycles, and a formaldehyde emission level of 0.03 mg/m³. The unit has a net weight of 165 kg, with two wall-mounted anti-tip connectors included to secure it to walls for tip-over safety. The smooth stain-resistant surface wipes clean easily with standard office cleaning agents. Practical storage functions cover three distinct zones: the open cubbies hold books and decorative displays, the lower closed cabinet with five hinged doors conceals files and office supplies, and the full-height right door accommodates oversized items. The cabinet suits a range of commercial spaces, including executive office back walls, open office reception areas, conference room perimeters, management workspaces, and corporate study or training areas. For procurement, note that one unit ships across multiple packages split for transport, with a reference assembly time of 40 minutes per set, packaged gross weight of 100 kg per set, and total packaging volume of 0.65 m³ per set.
