Automatic mm / inch conversion · Core engineering specifications

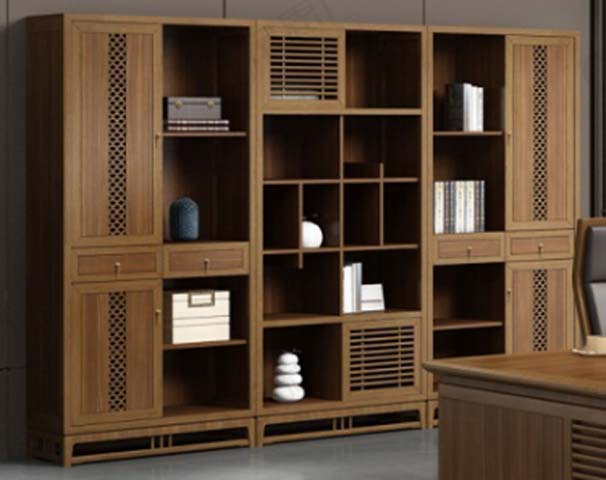

| Overall unit dimensions | 3600 x 400 x 2280 mm | |
|---|---|---|
| Plinth base height | 100 mm | |
| Standard open shelf vertical clearance | 320 mm | |
| Central grid cubby dimensions | 350 x 350 x 380 mm | |
| Single drawer internal dimensions | 380 x 350 x 120 mm | |
| Louvered cabinet door internal compartment height | 650 mm | |
| Perforated door panel width per door | 550 mm | |
| Shelf board thickness | 30 mm | |
| Carcass side panel thickness | 25 mm | |
| Back panel thickness | 9 mm | |
| Edge band thickness | 2 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Unit net weight | 280 kg | |
|---|---|---|
| Per adjustable shelf static load capacity | 30 kg | |
| Recommended number of users | 10 | |
| Surface wear resistance | 2000 abrasion cycles | |
| Anti-tip anchor requirement | 3 anchors | |
| Hinge open/close cycle rating | 80000 cycles | |
| Drawer slide cycle rating | 50000 cycles | |
| Door hinge maximum opening angle | 110 degrees | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main carcass panels | E1 grade MDF core with light oak wood veneer | |
|---|---|---|
| Shelf boards | 30mm thick veneered MDF with solid wood edge banding | |
| Perforated door panels | Solid wood frame with laser-cut geometric veneer infill | |
| Louvered door panels | Veneered MDF slatted construction with framed edges | |
| Drawer fronts | Matched light oak veneer MDF with metal pull handles | |
| Back panels | 9mm thick dark finish MDF | |
| Plinth base | Solid wood frame with ventilation slat cutouts | |
| Drawer slides | Cold-rolled steel silent full-extension slides | |
| Door hinges | Cold-rolled steel concealed soft-close hinges | |
| Internal compartment finish | Dark walnut-toned matte laminate lining | |
| External surface finish | Matte UV-cured clear coat over wood veneer | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features
| Open shelf storage | Asymmetrical fixed and adjustable open shelves for books and display items | |
|---|---|---|
| Perforated door storage | Perforated patterned solid doors conceal two tiers of closed storage per side module | |
| Louvered door storage | Horizontal slatted louvered doors provide ventilated closed storage for archival items | |
| Drawer storage | 4 small integrated drawers for small office supplies, stationery and loose documents | |
| Shelf adjustability | 5mm shelf pin holes allow height adjustment of non-fixed open shelves | |
| Soft-close door mechanism | Concealed hinges provide soft, quiet closing for all cabinet doors | |
| Silent drawer operation | Full-extension ball-bearing slides enable smooth, quiet drawer opening and closing | |
| Ventilated storage design | Plinth and louvered panels promote air circulation to prevent moisture buildup in closed compartments | |
| Modular assembly | Three independent cabinet modules join securely to form a continuous wall unit | |
| Wall anti-tip securing | Included steel anchors fasten each module to wall to prevent tipping when loaded | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive office placement | Wall-aligned storage behind executive desk for files, books and display decor | |
|---|---|---|
| Conference room storage | Side wall storage for meeting materials, reference documents and presentation supplies | |
| Open plan office shared storage | Partition storage for team shared documents, office supplies and decorative items | |
| Reception area display storage | Display corporate awards, publications and guest amenities with closed storage for supplies | |
| Recommended matching furniture | Coordinate with matching executive desk, office chair and guest seating for cohesive office design | |
| Indoor environmental suitability | Designed for dry indoor office environments with 60% relative humidity | |
| Color option availability | Light natural oak finish as standard, custom wood tone finishes available per B2B order |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and office storage furniture | |
|---|---|---|
| EN 16122:2012 | Test methods for strength, durability and stability of storage furniture | |
| EN 312:2010 | Specification for particleboard for furniture structural applications | |
| EN 13986:2004+A1:2015 | Wood-based panels formaldehyde emission class E1 for indoor use |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish quality checks | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, required E1 ≤0.124mg/m³ for indoor office use | |
| GB/T 4897.3-2015 | Particleboard specification for furniture-grade structural panel use | |
| GB/T 15102-2017 | Specification for impregnated paper laminated wood veneer furniture surfaces |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality checks; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, required E1 ≤0.124mg/m³ for indoor office use; 3. GB/T 4897.3-2015: Particleboard specification for furniture-grade structural panel use; 4. GB/T 15102-2017: Specification for impregnated paper laminated wood veneer furniture surfaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
