PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 400 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	145 kg
Top shelf static load	25 kg per shelf bay
Middle continuous shelf load	40 kg
Lower shelf static load	35 kg per compartment
Bottom shelf static load	40 kg per compartment
Sliding door cycle rating	50000 open/close cycles
LED service life	30000 hours
Storage capacity	8 primary display or storage zones
Recommended wall-anchor load resistance	80 kg horizontal pull resistance
Shelf Distributed Load	30 kg/shelf

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main cabinet boards	18 mm melamine-faced particleboard or MDF panels, light-gray finish
Accent shelves	18 mm walnut-tone melamine-faced engineered board with straight edge banding
Sliding doors	Four fluted walnut-tone engineered panels in a horizontal track system
Back panels	5 mm light-gray backing board in open display bays
Edge and rail trim	PVC edge banding with aluminum-look top and horizontal accent rails
Lighting components	24 V LED strip channels with diffuser covers in upper and shelf-recess locations

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Sliding-door storage	Four horizontally sliding fluted doors conceal a full-width middle storage zone without requiring floor space for outward swing.
Open exhibition layout	Five upper display areas plus four lower open bays allow books, art objects and samples to be arranged without door interference.
Anti-tip installation	The floor-standing cabinet should be secured to a structural wall with an anti-tip strap before decorative objects are placed on upper shelves.
Cable management planning	No rear cable pass-through is visible; power for lighting should exit from the rear or plinth and be coordinated before installation.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office or manager workspace	Suitable behind or beside a desk for displaying awards, books and decorative objects while concealing general storage behind sliding doors.
Hospitality and corporate reception areas	The lit open gallery supports curated displays in showrooms, lounges and reception zones without using glass doors.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16121:2013 non-domestic storage furniture	Recommended strength, durability and safety acceptance reference for office and commercial storage use
EN 16122:2012 indoor storage furniture test methods	Recommended laboratory test method for shelves, doors, dividers and structural stability
EN 717-1 formaldehyde emission	Recommended board-emission documentation reference for indoor air-quality procurement review
EN 62493 electromagnetic fields	Applicable lighting-system compliance reference if the LED driver is supplied as part of the cabinet

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024 dimensions and workmanship	General wooden furniture dimensional tolerance, appearance and construction acceptance reference for cabinet procurement
GB/T 10357.5-2011 shelf load test	Recommended test basis for verifying shelf strength under evenly distributed static loading
GB 18580-2017 formaldehyde control	Formaldehyde emission documentation should be requested for engineered-wood boards used in indoor cabinetry
GB/T 28204-2020 hardware testing	Recommended basis for checking sliding-door track durability and smooth operation

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024 dimensions and workmanship: General wooden furniture dimensional tolerance, appearance and construction acceptance reference for cabinet procurement;
2. GB/T 10357.5-2011 shelf load test: Recommended test basis for verifying shelf strength under evenly distributed static loading;
3. GB 18580-2017 formaldehyde control: Formaldehyde emission documentation should be requested for engineered-wood boards used in indoor cabinetry;
4. GB/T 28204-2020 hardware testing: Recommended basis for checking sliding-door track durability and smooth operation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LDR-DSP-2400-WAL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LDR-DSP-2400-WAL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LDR-DSP-2400-WALOpen Export Tool

Quick Actions

Post an RFQ

Product Description

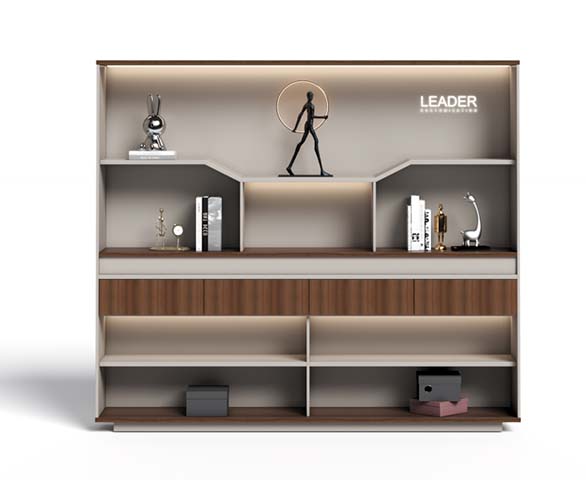

The LEADER LDR-DSP-2400-WAL is a floor-standing display cabinet designed to combine visible presentation with concealed storage in a modern two-tone composition. Walnut-tone shelves provide warmth against light-gray case panels, while aluminum-look top and horizontal accent rails add a structured, commercial finish. Fluted walnut-tone sliding doors introduce texture and moderate visual privacy, and integrated LED strip channels with diffuser covers illuminate the upper and shelf-recess display areas without the use of glass doors. Its layout is organized for both exhibition and practical storage. Five upper display areas and four lower open bays create separate zones for books, art objects, decorative pieces, awards, or product samples. A full-width middle storage zone sits behind four horizontally sliding fluted panels, keeping the front elevation clean while avoiding the clearance required for outward-swinging doors. The cabinet is built primarily with melamine-faced particleboard or MDF panels in a light-gray finish, paired with walnut-tone melamine-faced engineered-board shelves and straight edge banding. PVC edge banding protects visible edges, and the 24-volt LED channels are integrated into the upper and shelf-recess lighting positions. Rated shelf loads support differentiated use across the cabinet: the top shelf accommodates up to 25 kilograms per shelf bay, the middle continuous shelf supports 40 kilograms, lower shelves are rated for 35 kilograms per compartment, and bottom shelves support 40 kilograms per compartment. The sliding door system is rated for 50,000 open/close cycles, and the LED service life is rated at 30,000 hours. The unit weighs 145 kilograms net and must be secured to a structural wall with an anti-tip strap before objects are placed on upper shelves. The cabinet is well suited to executive offices and manager workspaces, where it can sit behind or beside a desk for awards, books, and décor while hiding general storage behind sliding doors. It also fits hospitality lounges, corporate reception zones, and showrooms that require a lit open gallery for curated displays. Procurement planning should include wall preparation, placement of the rear or plinth lighting power lead, and coordination before installation, as no rear cable pass-through is visible. Delivery is supplied as one set, with reference assembly time of 40 minutes; logistics information should be confirmed at order stage because packaging records present differing carton and gross-weight details.

LEADER Open Display and Storage Cabinet with LED Shelves and Fluted Doors Specifications
