Automatic mm / inch conversion · Core engineering specifications

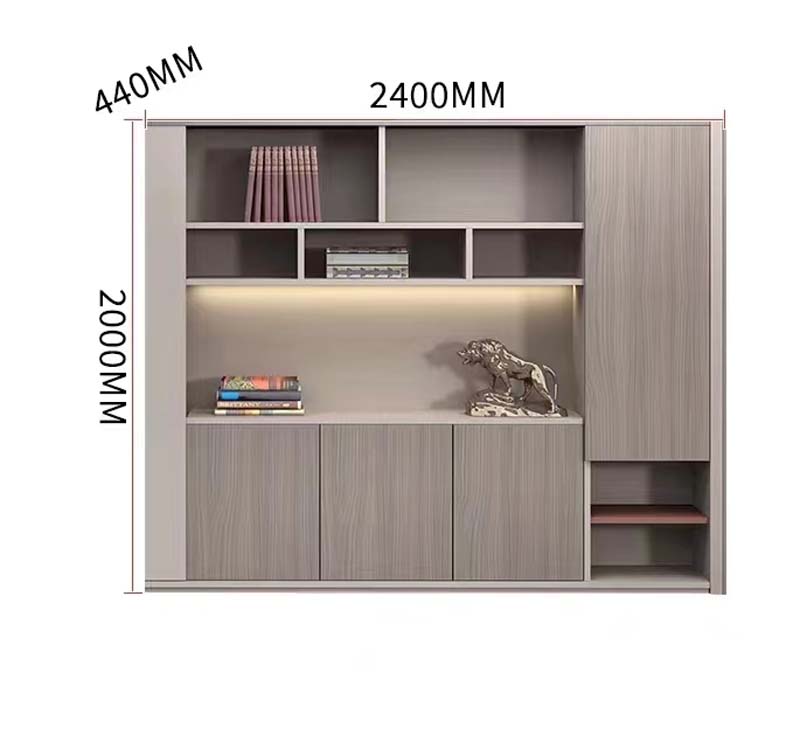

| Overall dimensions | 2400 x 440 x 2000 mm | |
|---|---|---|
| Open display shelf height (LED section) | 500 mm | |
| Lower closed cabinet door height | 700 mm | |
| Upper small open cubby shelf height | 320 mm | |
| Right tall single door width | 480 mm | |
| Left three lower door total width | 1680 mm | |
| Individual lower left door width | 560 mm | |
| Upper open shelf depth | 420 mm | |
| Right small open cubby width | 480 mm | |
| Top panel thickness | 25 mm | |
| Side panel/door panel thickness | 18 mm | |
| Back panel thickness | 9 mm | |
| Edge banding thickness | 1 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Total unit net weight | 165 kg | |
|---|---|---|
| Individual fixed shelf static load capacity | 30 kg | |
| LED strip operational lifespan | 30000 hours | |
| Recommended maximum uniform top surface load | 40 kg | |
| Total storage capacity | 1470 L | |
| Anti-tip connector load rating | 50 kg | |
| Recommended maximum user count for access | 2 | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Carcass structural panels | 18mm melamine-faced particleboard, scratch-resistant wood grain finish | |
|---|---|---|
| Top panel and load-bearing shelves | 25mm melamine-faced particleboard, matching light taupe wood grain | |
| Cabinet doors | 18mm melamine-faced particleboard, vertical linear wood grain texture, smooth matte finish | |
| Back panel | 9mm MDF backing board, neutral light taupe finish | |
| Edge banding | 1mm PVC edge banding, color-matched to panel finish, applied to all exposed edges | |
| Door hinges | Cold-rolled steel soft-close concealed hinges, nickel-plated finish | |
| Integrated display lighting | Recessed 4000K neutral white LED strip, aluminum housing, diffused lens | |
| Shelf supports | Metal shelf pins, zinc-plated finish, 5mm diameter for fixed shelf positioning | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Closed door storage | Four total hinged doors (three lower left, one tall right) with soft-close hinges, opening 110 degrees for full internal access | |
|---|---|---|
| Integrated LED display lighting | Recessed under-shelf LED strip illuminates the middle open display shelf to highlight decorative items and stored books | |
| Open shelving storage | Six variable-size open cubby shelves across upper and lower right sections for frequently accessed books and display items | |
| Wall anti-tip anchoring | Included anti-tip hardware secures the top rear of the unit to wall framing to prevent forward tipping | |
| Door locking option | Optional keyed cam locks can be fitted to cabinet doors for secured document storage | |
| Adjustable shelf positions | Lower cabinet internal shelves support 25mm incremental height adjustment via metal pin holes | |
| Cable management access | Pre-drilled rear cable cutout behind middle display shelf for LED power adapter routing | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive office background use | Positioned behind a manager desk to store files, books and display decorative awards or artifacts | |
|---|---|---|
| Open office shared storage zone | Installed along office partition walls to provide shared document and supply storage for team work areas | |
| Meeting room display storage | Placed against meeting room walls to store reference materials and display company branding or decorative pieces | |
| Reception area feature storage | Installed behind reception desks to store office supplies and display curated decor for a professional first impression | |
| Recommended wall installation | Must be secured to load-bearing wall studs using included anti-tip hardware for full structural safety |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and kitchen storage units, applicable for structural stability testing | |
|---|---|---|
| EN 12521:2015 | Furniture strength, durability and safety for non-domestic seating, adapted for commercial storage stability reference | |
| EN 312:2010 | Particleboard specification, applicable for panel material grade verification |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel strength and dimensional stability verification | |
|---|---|---|
| GB 18580-2017 | Indoor decoration material formaldehyde emission limit, applicable for E1/ENF grade panel acceptance | |
| GB/T 4893.8-2013 | Surface wear resistance test for furniture surfaces, applicable for melamine finish durability verification | |
| GB/T 10357.5-2017 | Furniture mechanical performance test for storage units, applicable for shelf and structure load verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel strength and dimensional stability verification; 2. GB 18580-2017: Indoor decoration material formaldehyde emission limit, applicable for E1/ENF grade panel acceptance; 3. GB/T 4893.8-2013: Surface wear resistance test for furniture surfaces, applicable for melamine finish durability verification; 4. GB/T 10357.5-2017: Furniture mechanical performance test for storage units, applicable for shelf and structure load verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
