PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 420 × 2000 mm
Overall unit dimensions	2800 x 420 x 2000 mm
Upper glass section height	1100 mm
Lower solid door section height	820 mm
Plinth base height	80 mm
Upper glass compartment width per bay	500 mm
Upper shelf clearance between tiers	340 mm
Lower solid door section door count	5 doors
Glass door panel thickness	5 mm
Carcass panel thickness	25 mm
Adjustable shelf thickness	18 mm
Edge band thickness	1 mm
Vertical pull handle length	120 mm
Internal shelf depth upper section	380 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Shelf static load capacity	40 kg
Lower compartment shelf static load	50 kg
Cabinet net weight	130 kg
Recommended maximum loaded weight	450 kg
Hinge open/close cycle rating	80000 cycles
Lock mechanism cycle rating	20000 cycles
Surface abrasion resistance	2000 cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main carcass panels	E1-grade particleboard with walnut wood-grain melamine finish
Upper door panels	5mm clear tempered glass set in silver-toned metal frames
Lower door panels	18mm melamine-faced wood-based panel matching carcass wood grain
Internal shelves	18mm melamine-faced MDF with light neutral finish
Internal backing panels	3mm hardboard with dark taupe finish
Door hardware	Matte black zinc alloy pull handles and steel key locks
Door hinges	Cold-rolled steel concealed hinges with nickel plating
Plinth base	25mm melamine-coated panel in light beige tone
Shelf support hardware	Nickel-plated steel shelf pins for 32mm adjustment system
Frame trim around glass doors	1mm thick powder-coated aluminum alloy
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Lower door locking system	Keyed cam locks secure two lower door pairs for confidential document storage
Upper shelf adjustability	3 tiers of adjustable shelves with 32mm pin spacing for variable item heights
Door operation	All doors open outward on concealed hinges to 110 degrees for full compartment access
Upper glass door function	Clear glass fronts provide dust protection while allowing full visibility of displayed items
Lower storage function	Solid wood-grain doors conceal stored office supplies, files and personal items out of sight
Anti-tip protection	2 wall-mounted anti-tip connectors secure unit to wall to prevent forward tipping
Leveling adjustment	Adjustable feet concealed within plinth base compensate for uneven floor surfaces
Storage configuration	Upper 4-bay display storage, lower 5-door locked archive storage for mixed office use
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office space	Placed behind or adjacent to executive desk for document storage and decor display
Open plan office file area	Used for shared department document storage and team display of awards or resources
Reception waiting area	Positioned in reception zones to display company materials and store reception supplies
Conference room perimeter	Installed along conference room walls for meeting supply storage and reference material display
Small business manager office	Provides combined open display and locked storage for single-user office environments
Recommended matching furniture	Pairs with matching walnut wood-grain executive desks, office chairs and conference tables
User group	Administrative staff, office managers, executive personnel requiring mixed secure and display storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Office storage furniture safety requirements, applicable to stability and load performance
EN 14074:2004	Office storage furniture test methods for strength and durability verification
EN 12727:2000	Furniture hinged door durability test standard for door mechanism validation

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Storage furniture standard for load, stability and durability testing for office use
ANSI/BIFMA e3-2020	Furniture sustainability standard applicable to material and emissions criteria

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel construction and performance
GB/T 4897-2015	Particleboard standard, applicable to carcass panel material performance requirements
GB 18580-2017	Formaldehyde emission limit for wood-based panels, required for indoor office furniture
GB/T 28202-2011	Office furniture general specification, applicable to structural and safety requirements

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel construction and performance;
2. GB/T 4897-2015: Particleboard standard, applicable to carcass panel material performance requirements;
3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, required for indoor office furniture;
4. GB/T 28202-2011: Office furniture general specification, applicable to structural and safety requirements;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OSC-WG5S-2000

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OSC-WG5S-2000

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OSC-WG5S-2000Open Export Tool

Quick Actions

Post an RFQ

Product Description

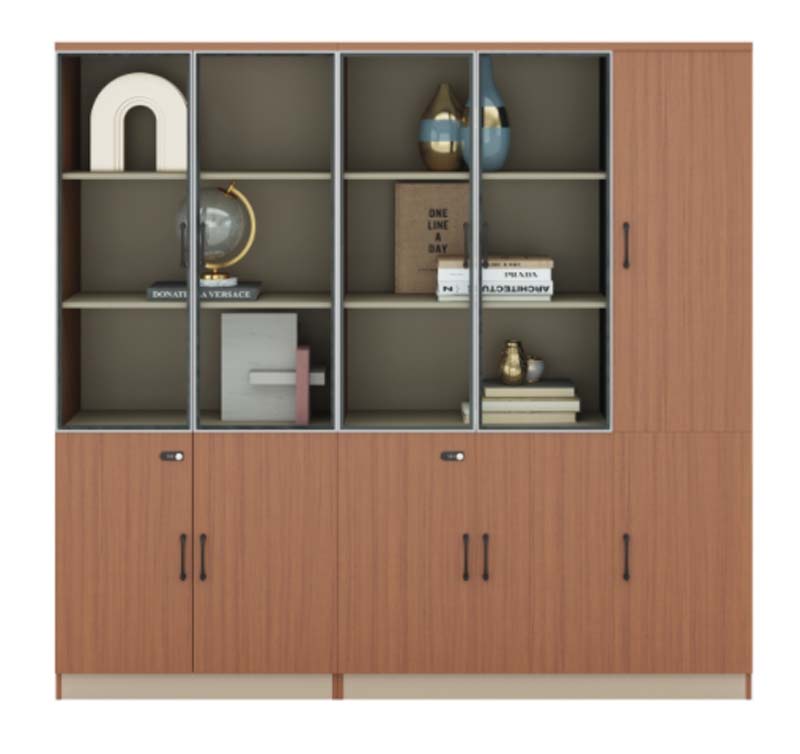

Tall Freestanding Office Storage Cabinet with Upper Glass Doors and Lower Lockable Solid Doors (model OSC-WG5S-2000, unbranded) is a purpose-built office storage solution balancing open display and secured, concealed storage functionality. Its structured vertical layout spans a 2000 mm total height, split into a 1100 mm upper glass-fronted section, 820 mm lower solid door section, and 80 mm light beige plinth base, creating a streamlined silhouette that complements professional office interiors. The upper section incorporates five individual bays, each with clear 5mm tempered glass panels set in silver-toned metal frames, paired with matte black zinc alloy pull handles for consistent visual contrast across the unit. The lower section features five solid doors finished in the same walnut wood-grain melamine as the main carcass, creating a cohesive, polished look across the entire cabinet face.
The cabinet is constructed with durable, workspace-appropriate materials: the main carcass uses E1-grade particleboard with a walnut wood-grain melamine finish, internal shelves are 18mm melamine-faced MDF with a light neutral finish, and backing panels are 3mm hardboard in dark taupe. Hardware includes nickel-plated cold-rolled steel concealed hinges rated for 80000 open/close cycles, steel key locks rated for 20000 operation cycles, and nickel-plated steel shelf pins supporting a 32mm adjustment system. The melamine surface delivers 2000 cycles of abrasion resistance for long-term use in high-traffic spaces. Upper adjustable shelves hold a 40 kg static load per tier, with 340 mm standard clearance between tiers that can be modified to accommodate items of varying heights, while lower compartment shelves support 50 kg static loads each, with a total recommended maximum loaded weight of 450 kg for the full unit. All doors open outward to 110 degrees for unobstructed compartment access; upper glass fronts block dust while keeping displayed items fully visible, and lower keyed cam locks secure two door pairs to store confidential documents out of sight. The unit includes two wall-mounted anti-tip connectors to prevent forward tipping, plus adjustable feet concealed in the plinth to compensate for uneven floor surfaces.
This cabinet suits a range of professional spaces: it can be placed behind or beside executive desks in private leadership offices for document storage and decor display, deployed in open-plan office file areas for shared department document storage and team award displays, positioned in reception zones to showcase company materials and tuck away reception supplies, installed along conference room walls to hold meeting materials and reference documents, or used in small business manager offices to deliver combined display and locked storage for single users. It pairs seamlessly with matching walnut wood-grain executive desks, office chairs, and conference tables for a coordinated workspace aesthetic. For procurement, note the unit ships across multiple cartons, requires 40 minutes of assembly per set, and has a net weight of 130 kg, so on-site handling support should be planned for installation.
