PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 350 × 1200 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-compartment static shelf load capacity	15 kg
Assembled net weight	42 kg
Recommended maximum stored item height per cube	320 mm
Floor surface pressure under full load	180 kg/m²
Surface abrasion resistance (melamine finish)	300 cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet side and back panels	18mm dark grey melamine-faced particleboard
Door panels	18mm light oak-effect melamine-faced particleboard
Shelf and divider panels	18mm matching melamine-faced particleboard
Support legs	1.2mm thick powder-coated dark grey angled steel
Perimeter grid trim	PVC edge banding matched to dark grey frame
Door connection hardware	Concealed metal cabinet hinges
Back panel substrate	3mm hardboard backing
Foot pads	Non-slip PE plastic pads on leg bases
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mixed storage configuration	5 closed door compartments for concealed storage, 4 open shelves for display access
Freestanding floor mounting	Supported by four angled steel legs, no wall fixation required for standard use
Door opening mechanism	Left/right hinged doors open 95 degrees for full compartment access
Under-cabinet clearance	100mm floor gap allows robotic vacuum access for floor cleaning
Adjustable shelf option	Fixed shelf positions as delivered; pre-drilled pin holes allow 32mm height adjustment per cube
Surface maintenance	Smooth melamine finish resists common household stains, cleans with dry or damp cloth
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Home living room	Store books, decor and daily items, matches modern two-tone interior design schemes
Home office space	Organize files, office supplies and reference materials beside a workstation
Bedroom storage	Hold folded clothing, accessories and personal items in private living spaces
Small apartment entryway	Store entry essentials, bags and display decor without occupying excessive floor space
Student dormitory room	Provide mixed open and closed storage for study materials and personal belongings

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 312:2010	Particleboard performance specification, applicable for structural panel load rating checks
EN 14749:2016	Domestic storage furniture safety requirements, applicable for stability and edge safety
EN 13722:2004	Furniture surface abrasion test standard, recommended for finish durability verification

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for dimensional and stability checks
GB 18580-2017	Formaldehyde emission limit for wood-based panels, recommended E1 grade acceptance criterion
GB/T 4897-2015	Particleboard performance standard, applicable for structural panel material verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional and stability checks;
2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, recommended E1 grade acceptance criterion;
3. GB/T 4897-2015: Particleboard performance standard, applicable for structural panel material verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CAB-3X3-MIX-1200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CAB-3X3-MIX-1200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CAB-3X3-MIX-1200Open Export Tool

Quick Actions

Post an RFQ

Product Description

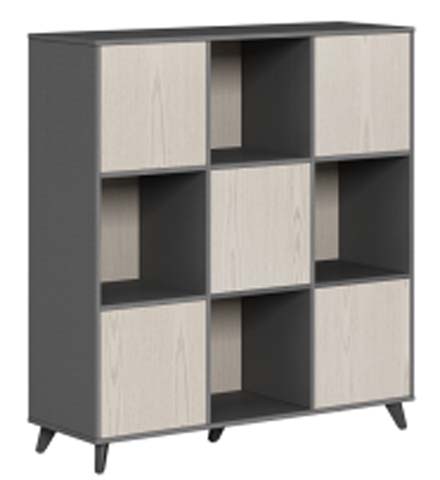

This two-tone 3x3 grid freestanding storage cabinet combines structured visual balance with versatile mixed storage, suited for a range of residential and light commercial settings. Its symmetrical grid layout features contrasting finishes, with dark grey framing and light oak-effect door panels that create a modern, layered aesthetic. Four angled dark grey powder-coated steel legs lift the cabinet body off the floor, lending a light, open visual profile while maintaining stable support, with dark grey PVC edge banding trimming all perimeter grid seams for a cohesive, finished look.
Constructed from durable melamine-faced engineered wood, the cabinet uses thick paneling for its core structure: carcass and shelf panels measure 25mm thick, door fronts 22mm, with a hardboard backing for rear enclosure. The angled steel support legs are finished in matching dark grey powder coat, fitted with non-slip PE plastic foot pads to protect floor surfaces, while doors operate on concealed metal hinges that open 95 degrees to allow unobstructed access to enclosed compartments.
The cabinet’s mixed storage design includes five closed door compartments for concealed, clutter-free storage and four open shelves for frequently accessed items or curated displays. Shelves ship in fixed positions, with pre-drilled pin holes allowing incremental height adjustment to accommodate items up to the maximum recommended per-cube stored item height. A 100mm clearance beneath the cabinet leaves room for robotic vacuums to clean underneath without moving the unit, and the smooth melamine surface resists common household stains, wiping clean easily with a dry or damp cloth. Freestanding installation requires no wall fixation for standard use, with optional cable or vent openings available for custom setups.
This piece fits seamlessly into modern home living rooms for books, decor and daily essentials, home offices for file and supply organization next to workstations, bedrooms for folded clothing and personal items, compact entryways for entry essentials and bag storage, and student dorm rooms for combined study material and personal belonging storage.
For procurement, note that each unit ships across multiple cartons, requires on-site assembly, and supports defined static and distributed shelf load limits. The melamine finish delivers rated abrasion resistance for regular daily use, and matching two-tone finishes coordinate easily with contemporary interior palettes.

Two-Tone 3x3 Grid Freestanding Storage Cabinet with Doors and Open Shelves Specifications
