Name: New Chinese Style Symmetrical Solid Wood Display Storage Bookcase with Slatted Doors and Drawers
Brand: GUANGLI
SKU: L6L7W5

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 406 × 2400 mm
Leg height	120 mm
Top carved trim height	80 mm
Upper open shelf compartment dimensions (per side)	650 x 350 x 380 mm
Middle open shelf compartment dimensions (per side)	650 x 350 x 380 mm
Per drawer internal dimensions	400 x 330 x 150 mm
Central cabinet compartment width	1060 mm
Lower open shelf dimensions (per side)	650 x 350 x 450 mm
Shelf panel thickness	30 mm
Carcass side panel thickness	35 mm
Door panel thickness	25 mm
Lower open shelf clearance above floor	150 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per open shelf static load capacity	30 kg
Net product weight	120 kg
Hinge open/close cycle rating	50000 cycles
Drawer slide cycle rating	40000 cycles
Anti-tip device load rating	50 kg
Surface abrasion resistance	400 revolutions
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main frame and carcass	Solid hardwood (walnut finish)
Upper central door panels	Solid wood slatted grille inserts
Lower central door panels	Solid wood flat panels
Side drawer fronts	Solid wood raised panel fronts
Shelf and back panels	Engineered wood core with walnut veneer
Pull handles	Brass-toned zinc alloy hardware
Support legs	Solid wood tapered legs
Top decorative trim	Carved solid wood trim
Surface finish	Matte clear nitrocellulose lacquer
Hinges and slides	Cold-rolled steel hardware
Edge banding	1.5 mm solid wood edge banding
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Open shelf storage	6 fixed open display compartments across two side columns
Drawer storage	4 stacked soft-closing drawers (2 per side)
Central cabinet storage	4 hinged doors (2 upper slatted, 2 lower solid)
Door operation	Hinged doors open 110 degrees outward
Anti-tip safety	2 wall-mounted anti-tip connectors included
Fixed shelving	All open and cabinet shelves are non-adjustable
Ventilation design	Slatted upper doors allow passive air circulation
Leveling feet	Adjustable nylon feet on all leg bases
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room display	Positioned against main wall for displaying collectibles, books and art objects
Study room book storage	Used as full-height bookcase for document and book collection storage
Tea room display cabinet	Placed in tea tasting space for tea set and curio display
Entryway hall cabinet	Installed in foyer for decorative display and entry item storage
Office reception storage	Used in executive office reception areas for decoration and document storage
Recommended pairing	Matched with new Chinese style solid wood desks, tea tables and seating

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Domestic and kitchen storage units and worktops - Safety requirements
EN 12521:2015	Furniture - Strength, durability and safety for domestic storage
EN 717-1:2004	Formaldehyde emission from wood-based panels

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture
GB/T 4897.3-2003	Particleboard for furniture use
GB 18584-2001	Limit of harmful substances in wooden furniture
GB/T 1931-2009	Moisture content determination for wood

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture;
2. GB/T 4897.3-2003: Particleboard for furniture use;
3. GB 18584-2001: Limit of harmful substances in wooden furniture;
4. GB/T 1931-2009: Moisture content determination for wood;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DISPCAB-NC-4D4D-2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DISPCAB-NC-4D4D-2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DISPCAB-NC-4D4D-2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

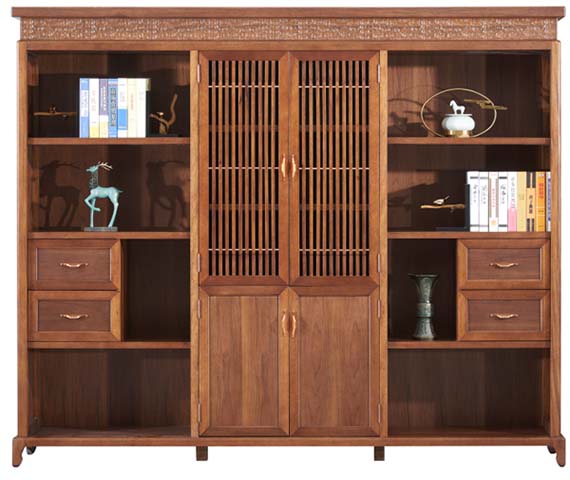

GUANGLI’s New Chinese Style Symmetrical Solid Wood Display Storage Bookcase (model DISPCAB-NC-4D4D-2400) is a freestanding, floor-standing storage and display piece rooted in classic Chinese design principles, anchored by a strict symmetrical layout that balances open display and concealed storage seamlessly. The 2400 x 406 x 2400 mm cabinet features a carved 80 mm tall solid wood decorative trim along its top edge, and sits on elevated 120 mm tall tapered solid wood legs that lend a light, refined silhouette despite its full-height scale. Warm walnut finishes unify the piece: the main frame and carcass use solid hardwood with a walnut finish, paired with matte clear nitrocellulose lacquer to highlight natural wood grain. Upper central cabinet doors use solid wood slatted grille inserts, while lower central doors are solid wood panels; side drawer fronts feature raised solid wood panels, fitted with brass-toned zinc alloy pull handles. Shelves and back panels use an engineered wood core with walnut veneer for consistent visual alignment, and all visible hardware complements the warm wood palette. The piece delivers tiered, purpose-built storage: six fixed open compartments run along two side columns, split across upper, middle, and lower tiers per side, each supporting a 30 kg static load for displayed items. Four stacked soft-closing drawers (two per side) offer concealed storage for small items, with internal dimensions suited to accessories, documents, or tableware. The central cabinet is fitted with four hinged doors that open 110 degrees outward; the upper slatted doors enable passive air circulation, making enclosed storage suitable for items that benefit from consistent airflow. Two wall-mounted anti-tip connectors are included for safety, with hardware rated for extended use: hinges support 50000 open/close cycles, drawer slides support 40000 cycles, and the anti-tip device carries a 50 kg load rating. The cabinet suits a range of spaces: it works as a living room focal point against a main wall for displaying collectibles, books, and art; as a full-height study bookcase for document and book collections; as a tea room cabinet for tea sets and curios; as an entryway hall cabinet for decorative pieces and entry essentials; or as executive office reception storage for decor and documents. It is designed to pair with new Chinese style solid wood desks, tea tables, and seating. For procurement, note that shelves are non-adjustable, so stored item dimensions should align with fixed compartment sizes; the set ships in split cartons, with a 40 minute per set reference assembly time, and weighs 120 kg net, requiring appropriate installation support to secure the included anti-tip hardware properly.

New Chinese Style Symmetrical Solid Wood Display Storage Bookcase with Slatted Doors and Drawers Specifications
