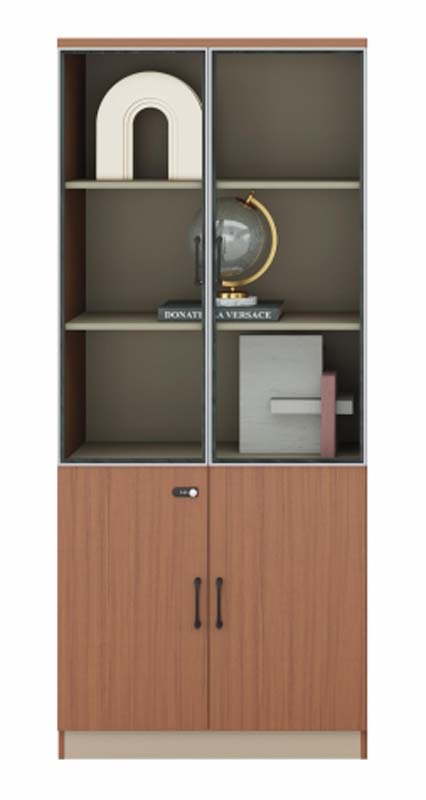

Product supplierTwo-Tone Walnut Office Display Filing Cabinet with Upper Glass Doors and Lower Locked Solid Doors, E1 grade particleboard with walnut grain melamine veneer
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 800 × 400 × 2000 mm | |
|---|---|---|
| Upper glass door section height | 1320 mm | |
| Lower solid door compartment height | 620 mm | |
| Kick base height | 60 mm | |
| Individual adjustable shelf depth | 300 mm | |
| Per-tier upper shelf clearance | 350 mm | |
| Door handle length | 120 mm | |
| Lower compartment internal shelf height | 550 mm | |
| Door panel thickness | 18 mm | |
| Carcass side panel thickness | 16 mm | |
| Glass door panel thickness | 5 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per adjustable shelf static load capacity | 30 kg | |
|---|---|---|
| Cabinet net weight | 75 kg | |
| Lock mechanism rated cycle life | 10000 operations | |
| Hinge rated opening cycle life | 80000 operations | |
| Door hinge maximum opening angle | 110 degrees | |
| Available color finish options | 2 | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass panels | E1 grade particleboard with walnut grain melamine veneer | |
|---|---|---|
| Upper door panels | 5mm clear tempered safety glass with black metal framing | |
| Internal shelf panels | 18mm thick E1 grade particleboard with light gray laminate finish | |
| Lower solid door panels | 18mm thick particleboard with vertical walnut grain melamine finish | |
| Door handles | Matte black finished zinc alloy vertical pull handles | |
| Lock assembly | Zinc alloy combination cam lock with key override | |
| Door hinges | Cold-rolled steel concealed soft-close hinges | |
| Kick base panel | Light beige melamine finished particleboard plinth | |
| Edge banding | 1mm thick PVC edge banding matching panel finish | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Upper glass door storage | Three tiers of adjustable open shelves for display of books and decorative items | |
|---|---|---|
| Lower locked storage | One concealed compartment with solid doors secured by combination lock for secure file storage | |
| Shelf adjustability | All internal shelves support 32mm pitch height adjustment to fit variable item sizes | |
| Door operation | Dual hinged doors open outward to 110 degrees for full compartment access without obstruction | |
| Noise damping | Door contact points fitted with rubber bumpers to reduce closing noise and wear | |
| Anti-tip safety | Two wall anchor brackets included to secure cabinet to wall and prevent tipping | |
| Surface utility | Flat top surface supports placement of small office decor or devices up to 20kg | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office back-of-wall storage | Provides open display for awards/reference books and locked storage for confidential files | |
|---|---|---|
| Open office document storage area | Offers organized filing and display for team-access materials with lockable secure storage | |
| Reception area display storage | Showcases company decor and branded materials in glass section, stores supplies out of sight | |
| Manager private office use | Combines display of personal items with secure storage for sensitive documents | |
| Small office multi-use storage | Holds books, office supplies and files without requiring wall mounting for flexible layout changes |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable for structural stability checks | |
|---|---|---|
| EN 12150-1:2015 | Tempered soda-lime silicate glass for construction, applicable for glass door safety |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Office storage furniture performance standard, applicable for load and durability testing |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish quality inspection | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for core panel material acceptance | |
| GB 15763.2-2005 | Tempered safety glass for building use, applicable for glass door panel safety verification | |
| GB/T 1931-2009 | Wood-based panel moisture content testing method, applicable for panel quality inspection |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality inspection; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable for core panel material acceptance; 3. GB 15763.2-2005: Tempered safety glass for building use, applicable for glass door panel safety verification; 4. GB/T 1931-2009: Wood-based panel moisture content testing method, applicable for panel quality inspection; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
