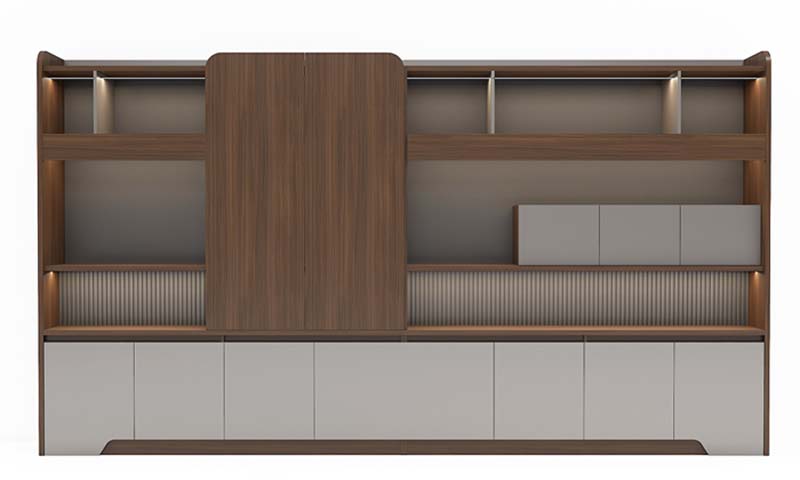

Large Modular Office Storage Wall Cabinet with Integrated LED Lighting (model OF-SW-4800W-2200H-MOD) is listed under Panel-type Filing Cabinet, with overall dimensions of 4800 × 400 × 2200 mm and main material of Particle‑board (PB). Load capacity: 40 kg. Certifications: Modular,wall-mounted/standing,storage,mixed,open/closed,two-tone,walnut/light,gray,finish,integrated,LED,accent,lighting. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Carcass Panel Thickness | 25 mm | |
|---|---|---|
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single shelf static load capacity | 40 kg | |
|---|---|---|
| Total unit static storage capacity | 350 kg | |
| LED strip service life | 30000 hours | |
| Assembled unit net weight | 320 kg | |
| Anti-tip anchoring load rating | 100 kg pull force | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet carcass and primary shelves | 18mm thick E1 grade melamine-faced particle board, walnut wood grain finish | |
|---|---|---|
| Closed door panels (light gray) | 18mm thick MDF with matte light gray PU lacquer finish | |
| Fluted decorative back panels | 15mm thick MDF with vertical fluted walnut veneer finish | |
| Shelf edge banding | 2mm thick PVC edge banding matching walnut finish | |
| Integrated accent lighting | 12V 3000K warm white LED strip lights, recessed under shelf fronts | |
| Hardware components | Soft-close cabinet hinges, metal sliding door tracks, wall anti-tip brackets |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Central sliding door operation | Two sliding panels glide horizontally on metal tracks to conceal or access middle storage compartments | |
|---|---|---|
| Integrated LED lighting | Recessed warm white strips illuminate open display shelves to highlight stored items and decor | |
| Mixed storage configuration | Combines open display shelves, small closed cubbies, and full-width lower closed cabinets for flexible document and supply storage | |
| Modular assembly design | Pre-drilled flat-pack panel system allows on-site assembly and wall anchoring for stability |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office backdrop | Installed behind executive desks to store files, decor, and office supplies while providing a polished professional backdrop | |
|---|---|---|
| Open office reception storage | Used in reception areas to display company materials and store operational supplies out of sight |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and performance requirements for domestic and kitchen storage units, applicable for structural stability | |
|---|---|---|
| EN 13986:2004+A1:2015 | Performance specifications for wood-based panels used in furniture construction |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel dimensional tolerance and edge quality inspection | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office air quality compliance | |
| GB/T 10357.5-2011 | Furniture mechanical performance test for storage units, applicable for shelf and structure load verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel dimensional tolerance and edge quality inspection; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office air quality compliance; 3. GB/T 10357.5-2011: Furniture mechanical performance test for storage units, applicable for shelf and structure load verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
